2015 COHERENT META 10C laser cutting system available. Used, reliable model with 1000W power. Handles sheets up to 1.2m x 1.2m. Features high-speed operation at 2000 ipm with X, Y, Z axes dimensions of 50", 50", and 9.5".
| Sheet-W | 1.2 m | 49.213" |
| Sheet-L | 1.2 m | 49.213" |
| Wattage | 1000 w | 1,000 W |
| IPM | 2000 ipm | |
| X Axis | 50" | 1,270 mm |
| Y Axis | 50" | 1,270 mm |
| Z Axis | 9.5" | 241.3 mm |

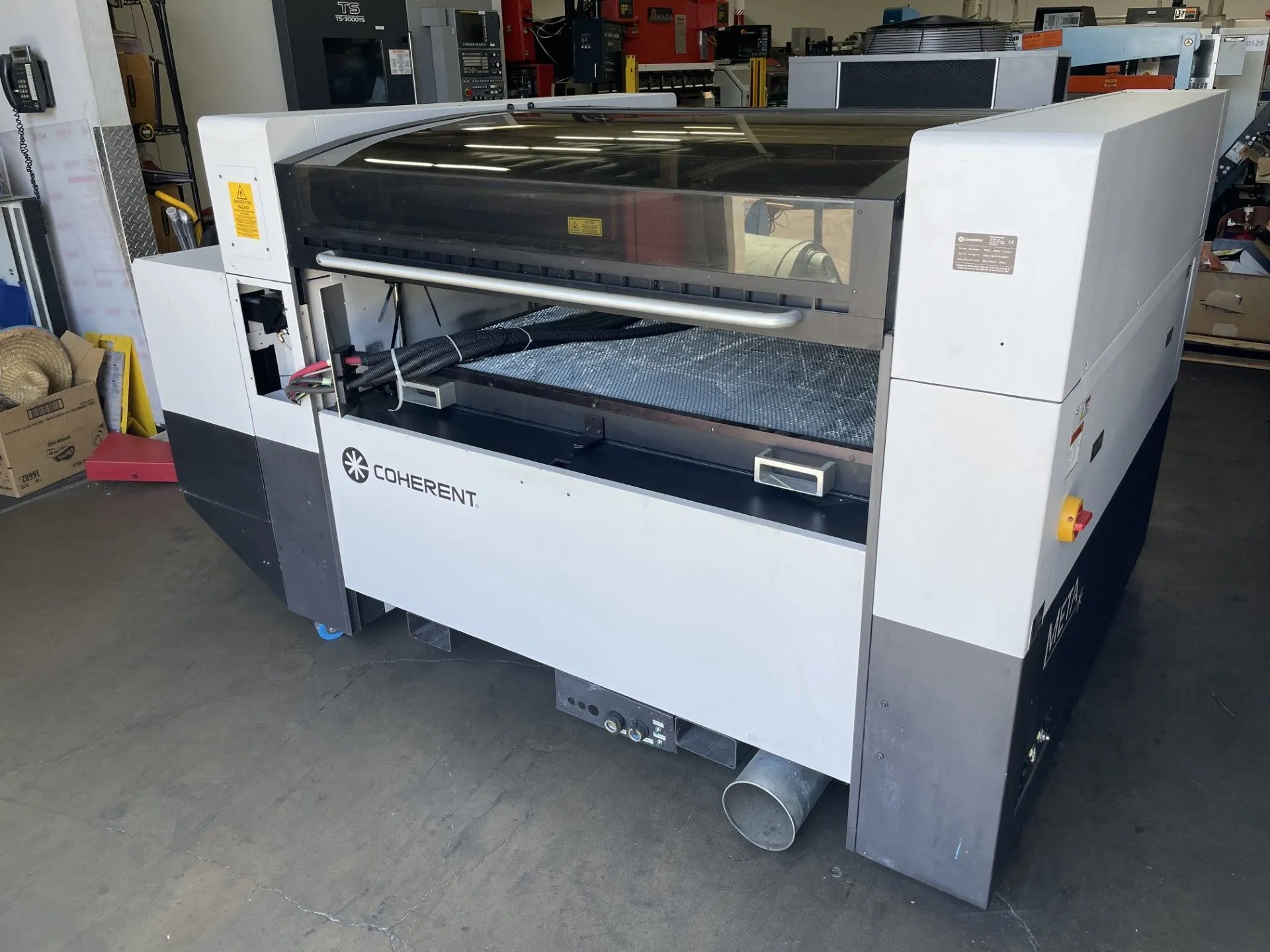

2015 COHERENT META 10C Laser Cutting System #7855
GENERAL SPECIFICATIONS:
Laser Power: 1000 Watts
Laser Peak Power: 2500 Watts
Laser Source: E-1000
Focal Lens (FL): 3.75"
Beam Shape: TM 01
Beam Diameter: 0.472"
Wavelength: 10.6UM
X Work Range: 50"
Y Work Range: 50"
Z Work Range: 9.5"
Cutting Height: 40"
Maximum Sheet Metal Thickness: 0.25"
Maximum Cutting Speed: 2000" Per Min
Maximum Rapid Positioning Speed: 3600" Per Min
Maximum Raster Engraving Speed: 2000" Per Min
Positioning Accuracy: 0001"
Repeat-ability Accuracy: .0002"
EQUIPPED WITH:
E-1000 Laser Source
Digital Laser Power Control
Vision Alignment System ($14,500)
XG-7000 Fully Integrated Into HMI Software
Full Look Ahead Contouring Capability
Bed Vacuum Material Hold-Down Plenum & Part Collection Drawer
Cooling External Chiller
Cut and Engraved Stainless Steel
