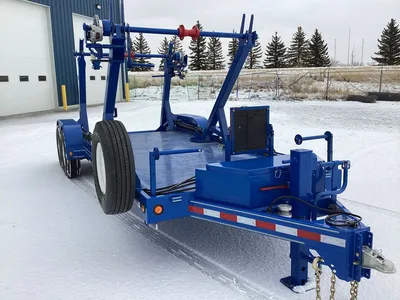

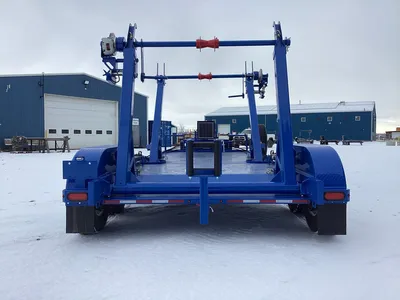

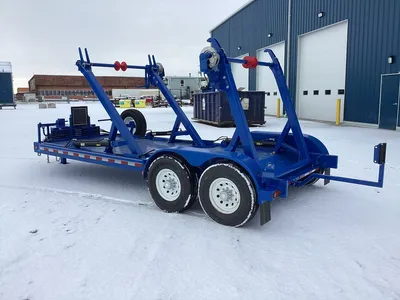

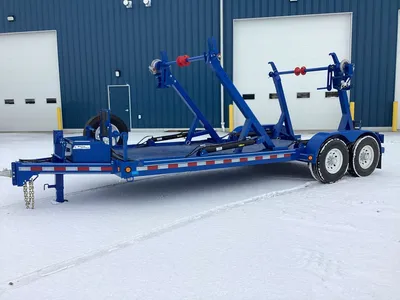

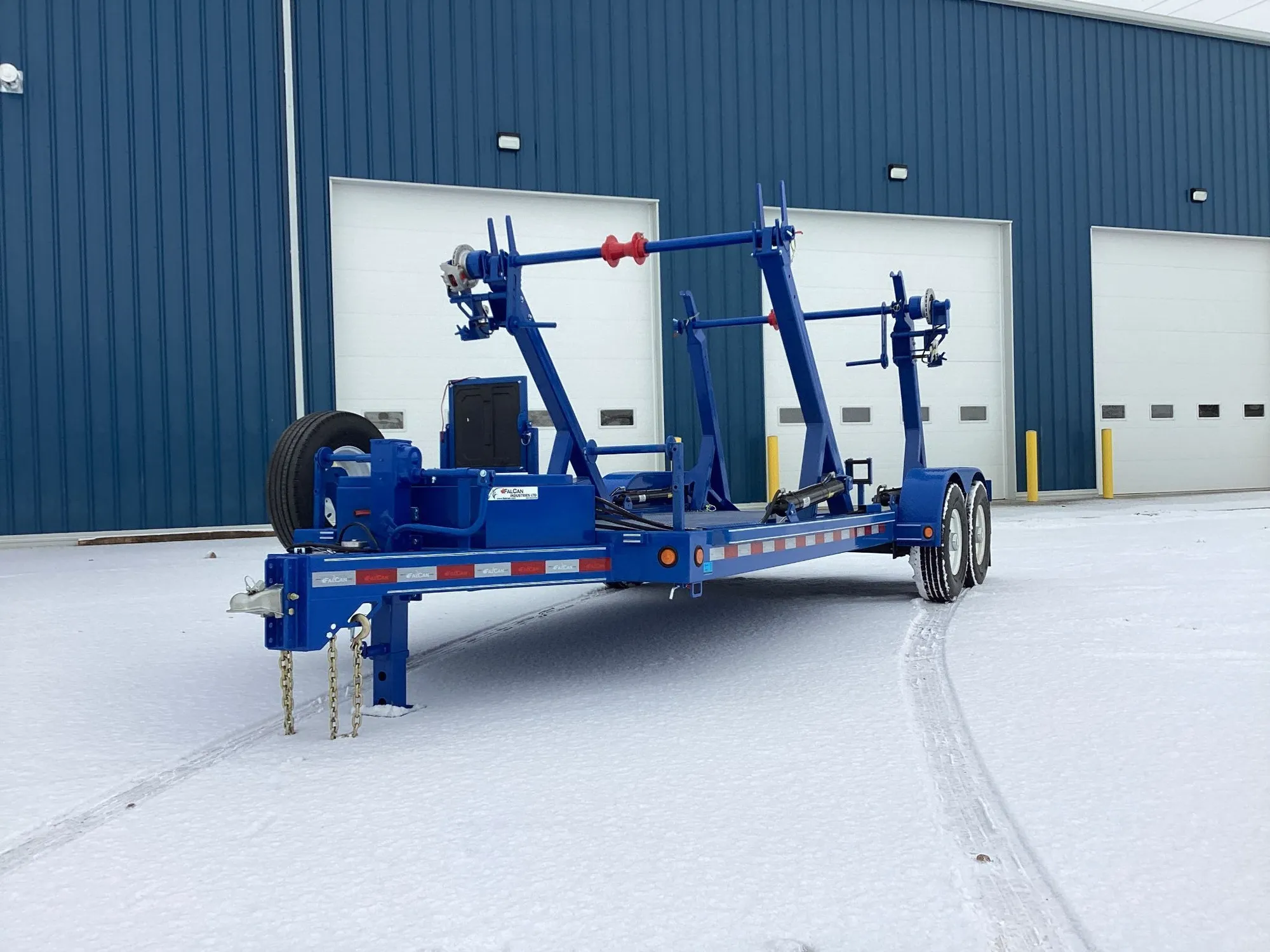

DUAL REEL TRAILER FL-270-DR
Standard Features:
• Gvwr:14,000lbs
• Ship weight: 4,739lbs
• Payload: 9,261 lbs
• Length: 22’ x 8’ Overall Length and Width
• Axles: 2 – 7,000lbs Dexter Torsion
• Brakes: Electric
• Tires: 235/85R16
• Fenders: Steel tear drop
• Stake Pockets: For attachment storage
• 2 Reel Brake Systems: This reel braking system is designed to be mounted onto the reel stand arms, providing a means to slow down the reel in a safe manner. It helps prevent over-spooling and maintains light tension on the spool. (Note: This system is not intended for line pulling.)
• Coupler: 3’’ adjustable pintle or adjustable 2-5/16 ball
• Jack: 10,000lb adjustable drop leg
• Front Toolbox: For Storage of the 12 Volt hydraulic power pack with remote control and battery
• Rear Pipe Guide
• Dual Hydraulic Cylinders: For loading reels
• Capacity Per Reel: 3,500lbs
• Max Reed Diameter: 9’ feet
• Max Reel Width: 52’’ inches
• Removeable Pipe Guide
• Spare Tire: Full size spare mounted at front of trailer
• Lighting: Equipped with high-quality led marker, stop and turn lights for enhanced visibility.
• Enclosed Solder-Sealed Wiring: All wiring is fully enclosed, solder-sealed shrink connection, ensuring maximum protection and long-lasting reliability.
• Safety Chains: ½” grade 70 chains with slip hooks and safety latches for added security.
• Trailer Breakaway Kit
• Trailer Plug: Cold-weather-rated 7-pole RV-style plug for reliable performance in all conditions.
• Reflective Markers: DOT rated reflective safety markers
• Certified Steel: Built with premium certified steel, ensuring enhanced strength and durability.
• Powder Coat Finish: All trailers are sandblasted and powder-coated using a three-step process to provide a near-impenetrable, baked-on finish for superior durability and rust prevention.
• Pinstriping: Finished with custom pinstriping available in any preferred color for a personalized touch
Options:
• DOT Inspection: Let us conduct a CVIP (Commercial Vehicle Inspection Program) on your trailer before you pick it up, saving you time and ensuring it’s ready for the road.
• Custom Colour: Choose from thousands of custom colours and finishes to make your trailer truly unique to you.
• Chock Blocks: Designed to stop a vehicle (or isolated tire) from rolling or moving accidentally.
• Scorpion Lined: Scorpion liner is a spray on rock guard added to trailer for added durability.
• Removable Pipe Guide: Slides into the trailer receiver to direct the line coming off the reel.
• Tracer Wire Holder: To hold and roll out tracer wire
• Portable Vice Mount: Creates a removable workstation
• Trickle Charge System: From standard 110 outlet to trailer
• Solar Panel Charging System: Mounts on trailer and is used to extend battery life
