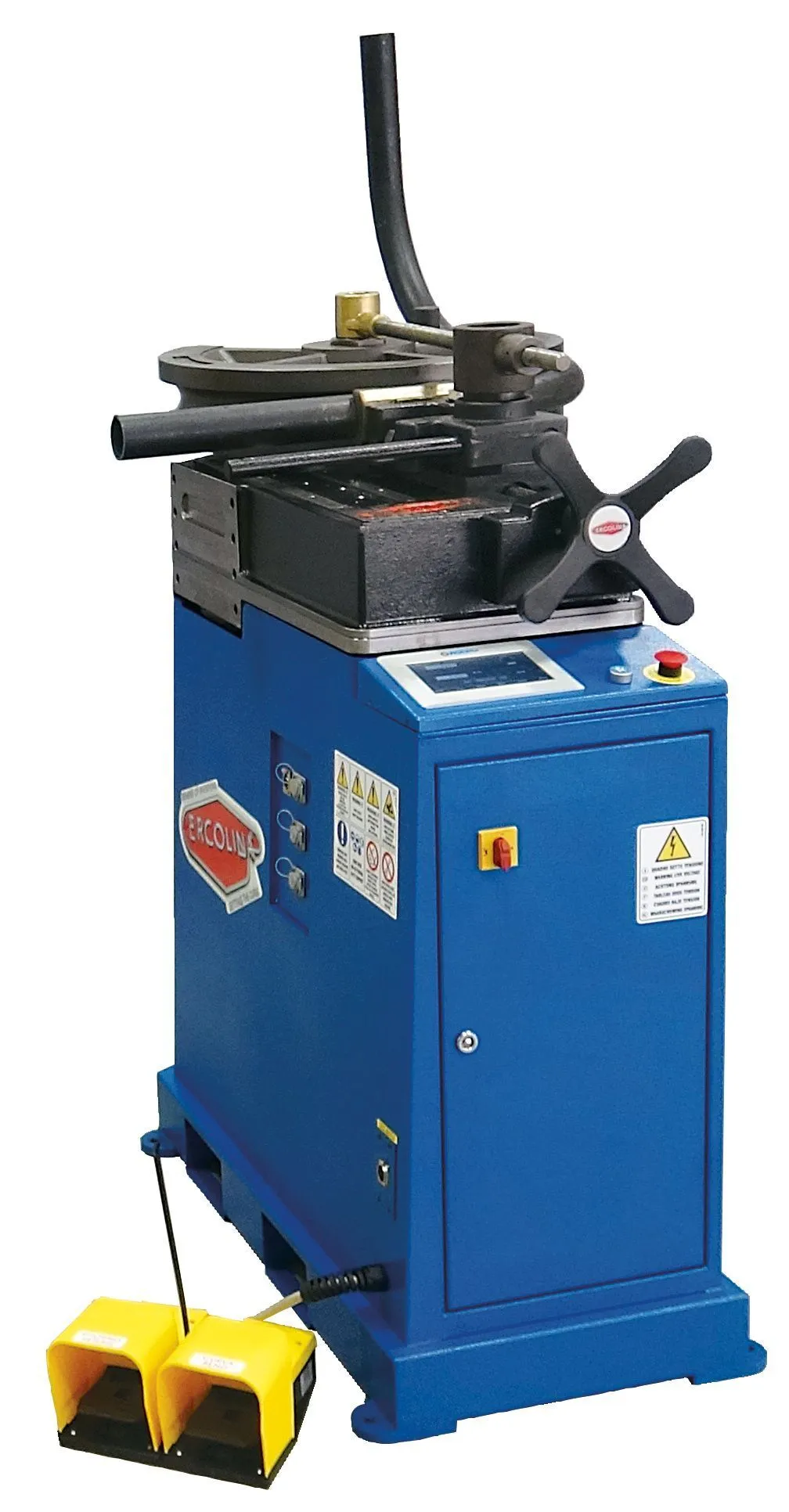

NEW ERCOLINA TB80 Top Bender, 2-1/2" Sch. 40 Pipe 480V

480V Three Phase

Ercolina TB80 Top Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● Mild steel tube capacity 3″
● Pipe capacity 2-1/2″ Sch. 40 Grade A A53
● Maximum CLR 16-1/2″
● Bend to CLR as small as 2D
● Touch screen control icon menu for easy access to auto and manual operating modes, programming (inch or metric), system diagnostics and multiple language capability
● Quick-change tooling system with multiple radii available
● Digital display of bend angle and bend speed
● Bend any angle to 180° with independent material springback and speed compensation for each bend
● Foot pedal control of bend and return functions
● Swing away counterbending die vise for easy material handling
● Counterbending die vise position monitored electronically for accuracy and repeatability
● Heavy-duty steel gear case, right or left bend capable
● No hydraulic components for quiet operation
● Mandrel-ready with optional accessory
● Two axis positioning table for multiple and sequential bends available on special request
● On screen machine diagnostics
● All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
