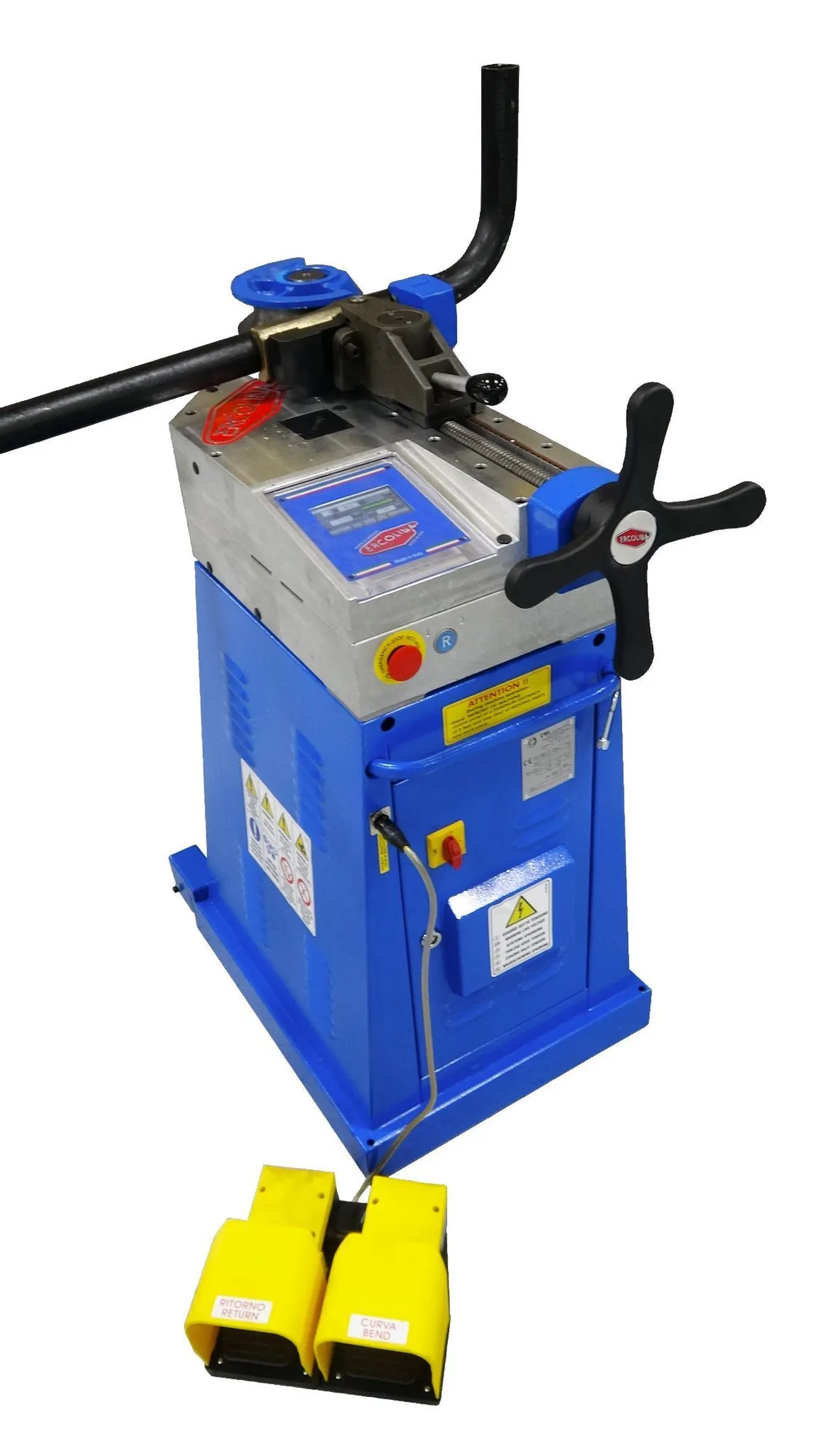

NEW ERCOLINA TB60-TC Top Bender with TC Plus Control - 220V Single Phase

220V Single Phase

Ercolina TB60-TC Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● Mild steel tube capacity 2-1/2″
● Pipe capacity 2″ Sch. 40
● Square tube capacity 2″ .083 wall
● Maximum CLR 15″
● Bend to CLR as small as 2D
● Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience
● Touch screen indicates bend angle, springback and bend speed for each angle within the program
● Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
● Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components
● Quick-change tooling system with multiple radii available
● Right or left hand bending available with vise accessory
● Automatically stops at desired bend angle to end cycle
● Unlimited program storage for quick recall
● Use control panel or foot pedal to initiate bend and return functions
● Counterbending die position monitored electronically for accuracy and repeatability
● Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
● No hydraulic components
● Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor space
