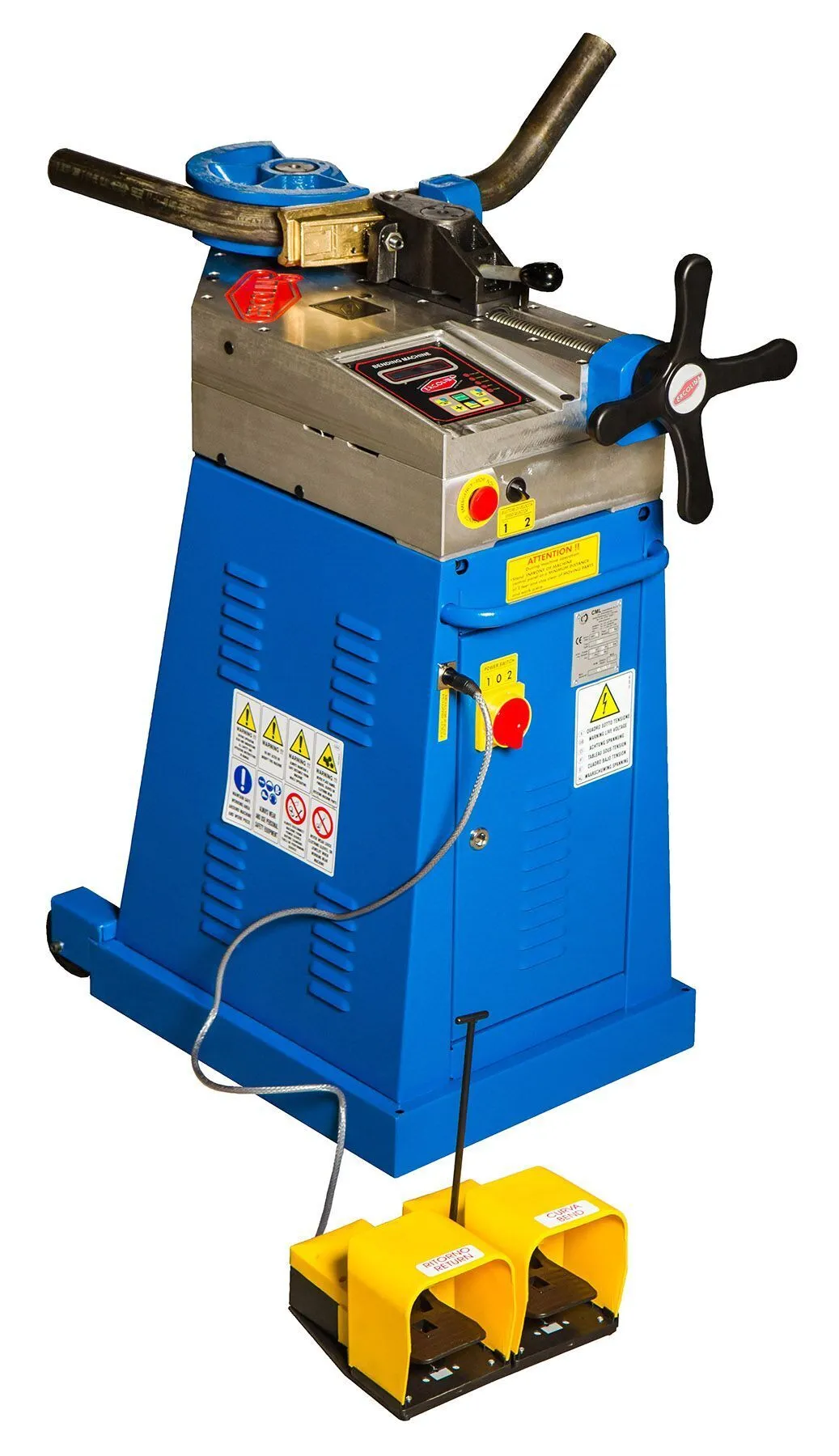

NEW ERCOLINA TB60 Top Bender With 2-1/2" Tube 220V

220 Volt 3 Phase

Ercolina TB60 Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● Mild steel tube capacity 2-1/2″
● Pipe capacity 2″ Sch. 40
● Square tube capacity 2″
● Maximum CLR 15″
● Bend to CLR as small as 2D
● Ideal for producing consistent quality bends in pipe, tube, squares, solids and other profiles
● Touch screen programming of bend angle with system diagnostics in multiple languages
● Touch screen indicates digital display of bend angle, springback and bend speed for each bend within the program
● Bend any angle to 180° with independent material springback compensation for each bend
● Quick-change tooling system with multiple radii available
● Swing away counterbending die vise for easy material handling
● Automatically stops at desired bend angle to end cycle
● Use control panel or foot pedal to initiate bend and return functions
● Counterbending die position monitored electronically for accuracy and repeatability
● No hydraulic components
● Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
● Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor space
