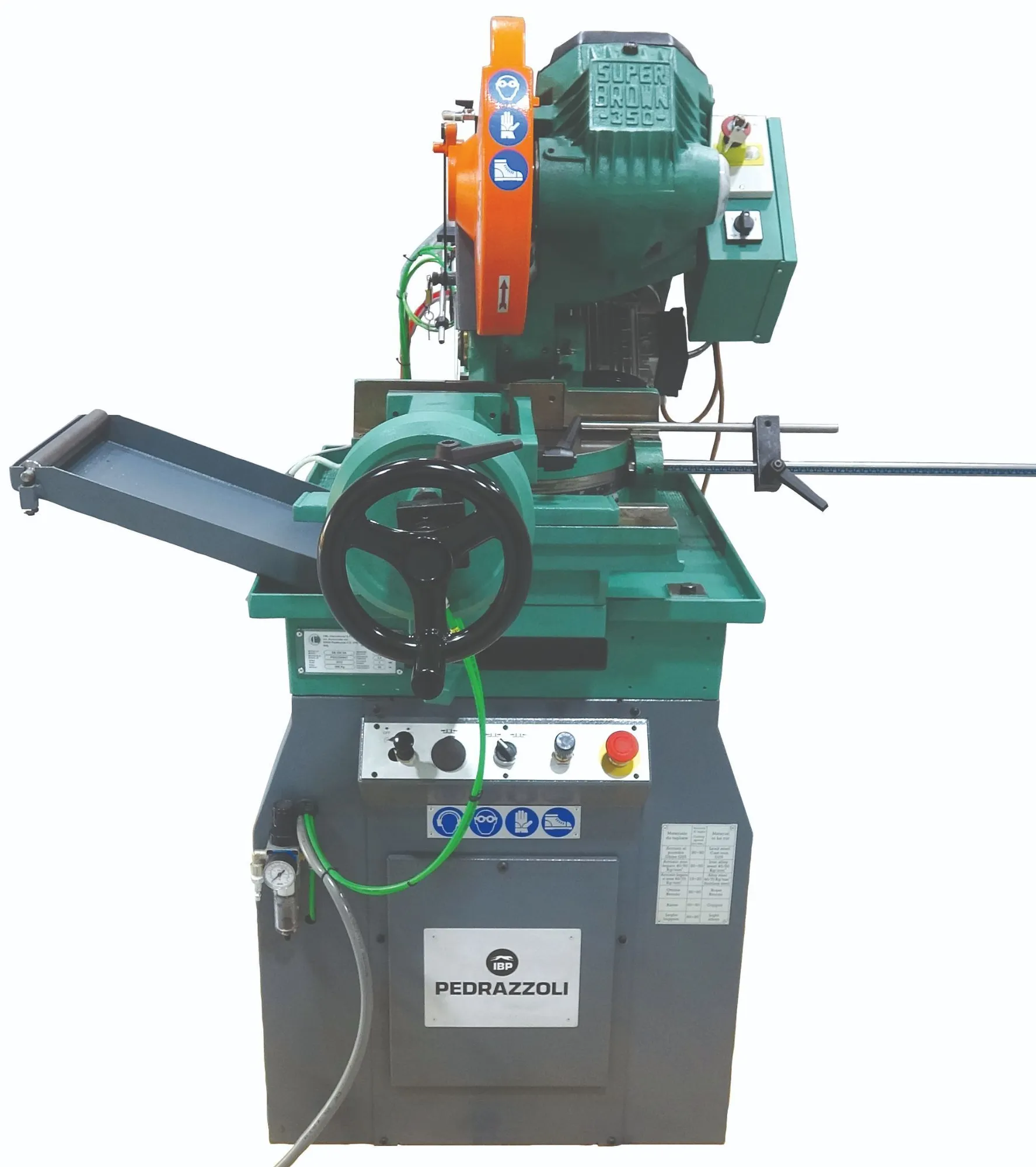

NEW PEDRAZZOLI Super Brown 350/60 MRM Manual Circular Cold Saw - 120V
Overview
Description
120V 1 Phase (480V Available - specify when ordering) Speed: 15 / 90 rpm
Super Brown 350/60 MRM Manual Circular Cold Saw. The manual vise, equipped with a rapid clamp feature and anti-burr device, ensures unwavering material support throughout the cut, resulting in impeccable, burr-free parts without heat transfer. With a time-tested machine design, this saw guarantees a seamless operation and unmatched reliability.
● Saw head swivels easily to 45 degrees left and right and locks for miter cuts.
● Variable blade speed adjusts between 15-90 rpm.
● Accepts saw blades to 350 mm.
● Coolant tank with immersion electric pump improves cooling.
● Stock stop with micrometer adjustment for repetitive parts.
● Manual locking vise with quick lock handle.
● Blade on / off located in trigger handle for greater safety.
● Head tilt pivots on self-lubricating bearings reduces wear.
● Emergency stop with key on control.
● Easy access to emergency stop and two-speed selector.
● Metal base welded for rigid reinforcement.
Specifications
| Blade Diameter | 350" | 8,890 mm |
|---|---|---|
| Capacity | 4" | 101.6 mm |
| Power | 1.5 kW | 2 hp |
| Work Height | 37.5" | 952.5 mm |
| Dimensions | 35.5 x 61.2 x 73 | 35.5 x 61.2 x 73 |
| Weight | 640 lbs | 640 lbs |
