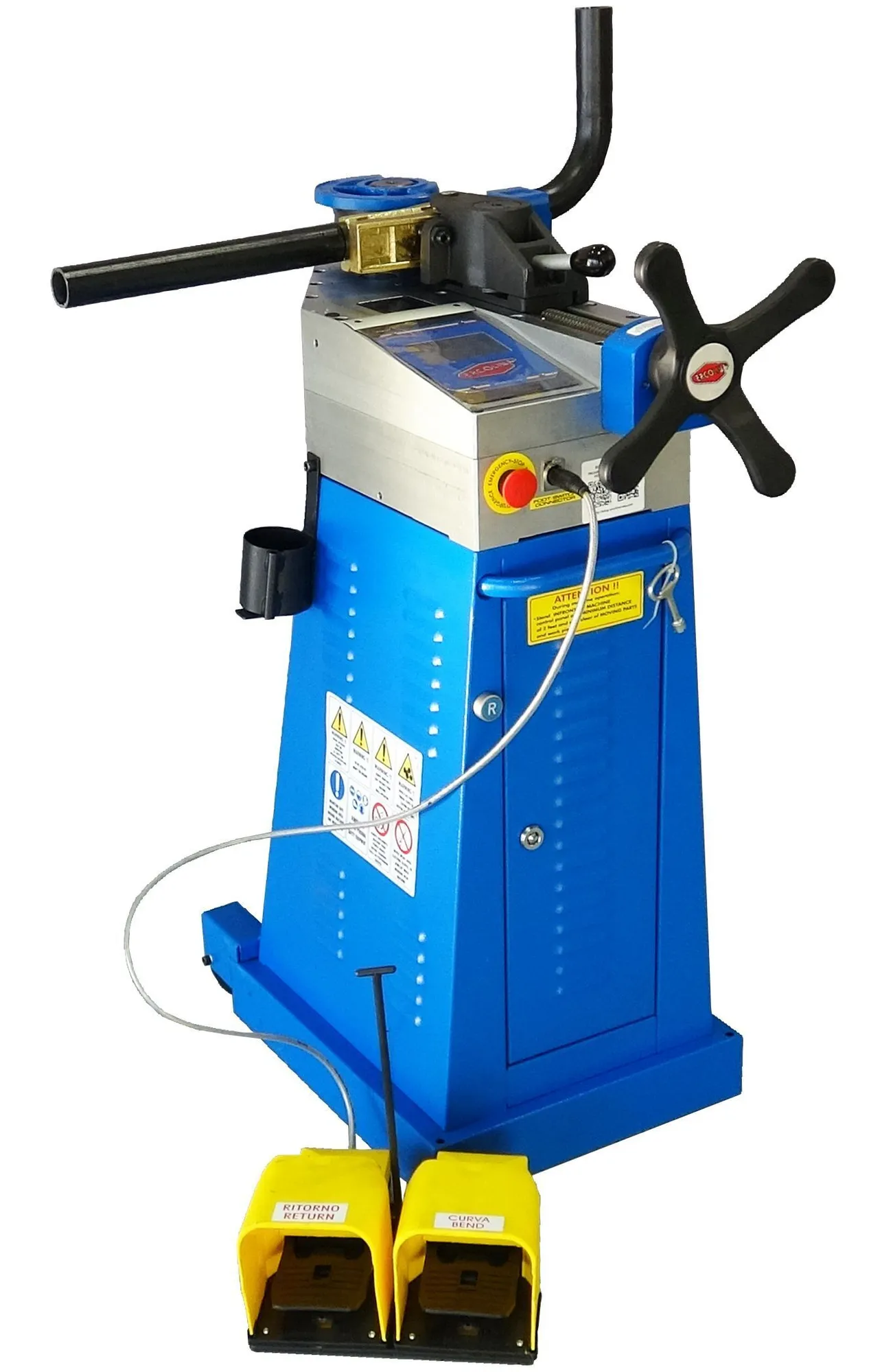

NEW ERCOLINA SB48-TC Super Bender 2" Tube or 1-1/2" Sch. 40 Pipe

110V Single Phase

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● SB48-TC Super Bender with TC Plus Control
● Mild steel tube capacity 2″
● Pipe capacity 1-1/2″ Sch. 40
● Square tube capacity 1-1/2″ .083 wall
● Maximum CLR 8-7/8″
● Bend to CLR as small as 2D
● Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience
● Touchscreen indicates bend angle, springback and bend speed for each angle within the program
● Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
● Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components
● Quick-change tooling system with multiple radii available
● Right or left hand bending available with vise accessory
● Automatically stops at desired bend angle to end cycle
● Unlimited program storage for quick recall
● Use control panel or foot pedal to initiate bend and return functions
● Counterbending die position monitored electronically for accuracy and repeatability
● Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
● No hydraulic components
● Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor space
