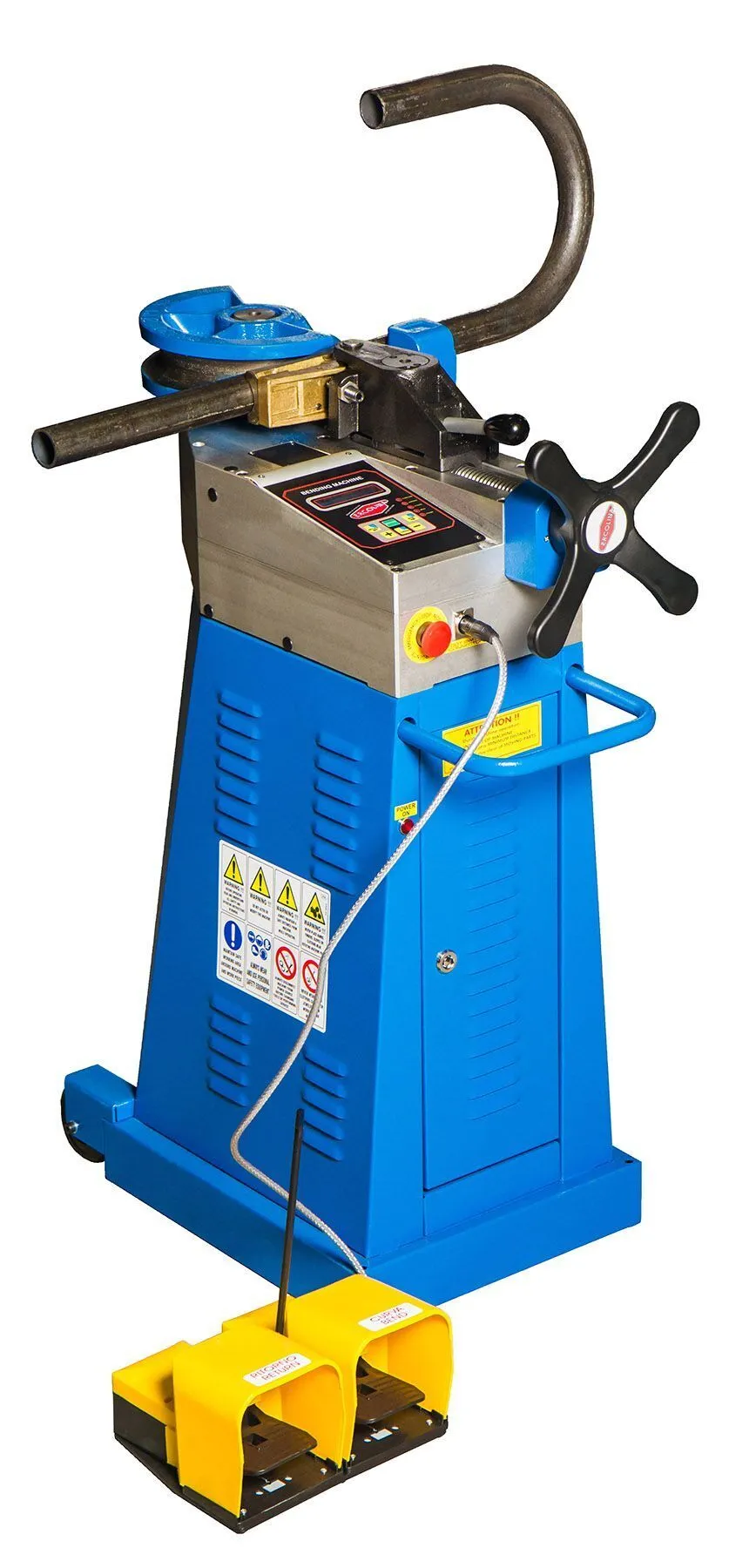

NEW ERCOLINA SB48 Super Bender 2" Tube or 1-1/2" Sch. 40 Pipe

110 Volt Single Phase

Ercolina SB48 Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● Mild steel tube capacity 2″
● Pipe capacity 1-1/2″ Sch. 40
● Square tube capacity 1-1/2″ .083 wall
● Maximum CLR 8-7/8″
● Bend to CLR as small as 2D
● Touch screen programming of bend angle with system diagnostics in multiple language capability
● Quick-change tooling system
● Digital display of bend angle
● Material springback compensation
● Foot pedal control for hands-free operation
● Counterbending die positioning monitored electronically for accuracy and repeatability
● Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
● Portable with base wheels and lift handle
● No hydraulic components
● All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
