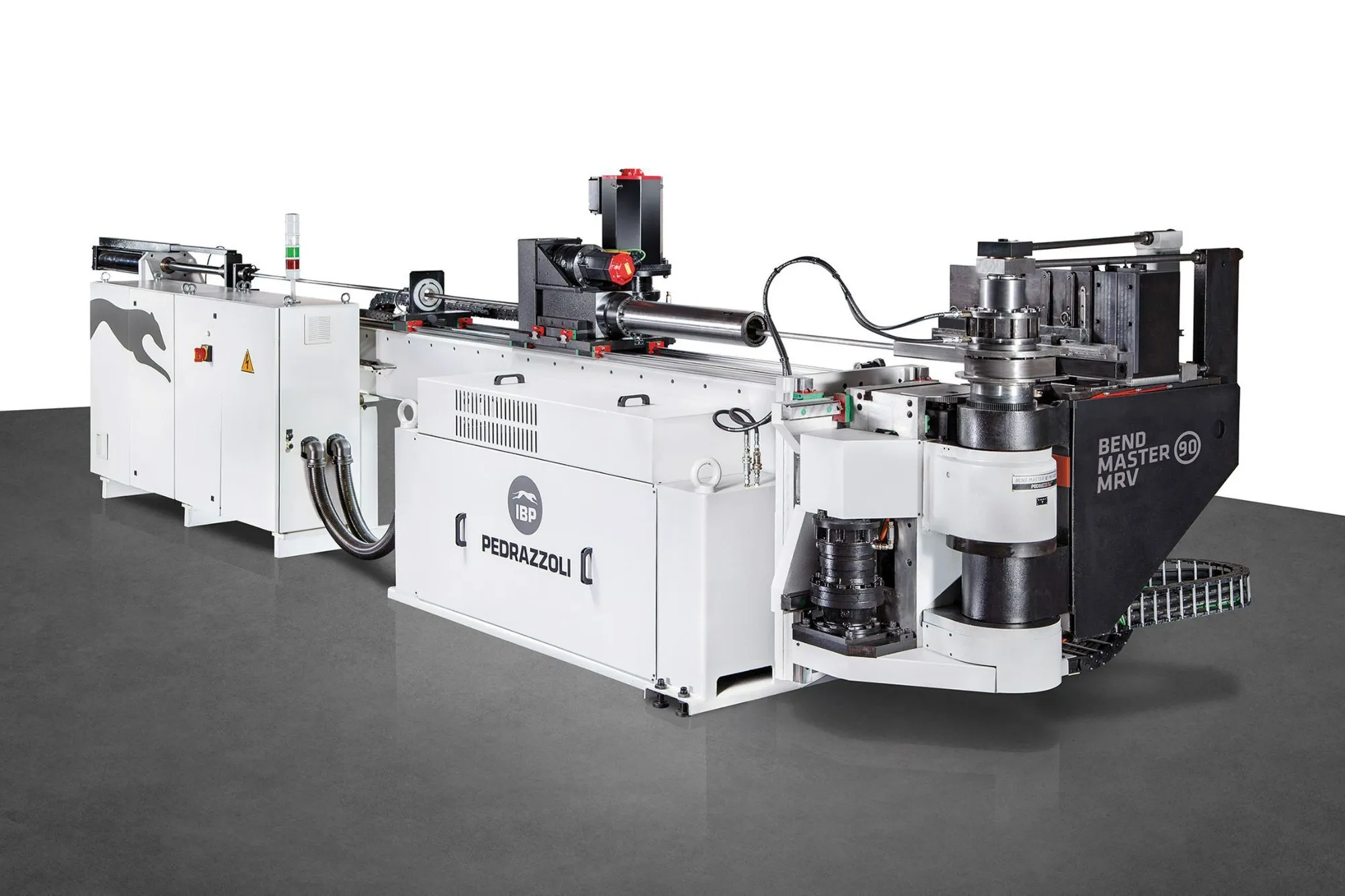

NEW PEDRAZZOLI Bend Master 90 High-speed Electric Mandrel Bender
Overview
Description
Introducing the Pedrazzoli Bend Master 90, where precision meets innovation. With its cutting-edge electric axis control, experience flawless clockwise bends. The versatile multi-stack tooling design crafts impeccable fixed or variable radius bends, setting new standards for metal fabrication. Crafted from the finest high-grade steel, the Bend Master 90 machine’s foundation promises longevity and unwavering performance.
Meticulous craftsmanship defines every component of the Bend Master 90, adhering rigorously to exacting standards. Dimensions aren’t just measured – they are certified through state-of-the-art measuring systems, guaranteeing unrivaled accuracy. Delight in seamless linear guide movements, empowered by re-circulating ball spheres, brushless motors, and an unyielding mechanical structure. Elevating precision to new heights, the integrated tool post strengthening tie rod ensures your projects are nothing short of perfection.
● Clockwise bending
● Variable and multi-radius bending in the same cycle
● Compact bending head design accommodates most applications
● Intuitive IMS touchscreen control
● Electric axis for greater precision
● FANUC drive controllers for improved reliability
● Innovative tube stop allows positioning from rear of carriage (optional)
● Automatic adjustment of tools
● Boost for tight radius bending with synchronized control of axis
● Torque controlled positioning of carriage on incline tooth precision gear rack
● Controlled torque of clamp die and pressure die
● Automatic lubrication work piece
● Rapid coupling system for quick mandrel rod installation
● Safety light barriers with programmable work zone
● Central lubrication of guides and ball screws
Specifications
Capacity: 3.5″ x .157
CW and/or CCW Bending: CW
Maximum CLR CW: 15.7″
Minimum Inside Radius with Standard Spindle: 1.77″
Variable Radius Bending: Yes
Maximum Bend Angle: 190°
Min. Distance Between Bends: 1.5-2 x Diameter
Max. Distance Between Bends: NA
Max. Stroke Clamp Die: 6″
Max. Stroke Mandrel: 29″
Section Modulus cm³: 22.25
Horizontal Head Travel: 16.1″
Vertical Head Travel: 11.8″
Number of Bend Heads: 1
Punching: Not Available
Electrically Controlled Axes: 6
Drive Controllers: FANUC
Precision of Electric Axis: + or – .1 mm
Carriage Speed: 28″ / sec
Bend Arm Speed: 64° / sec
Tube Rotation Speed: 287° / sec
Central Clamp Rotation: NA
Maximum Tool Stacks: 3+
Software: IMS
Webcam: Yes
Max. Tube Length on Front Stop: 157″
Max. Tube Length on Rear Stop: 212″
Machine Dimensions: 314″ x 92″ x 77″
Height of Work Plane: 52″
Weight: 16,314 lbs
Power: 480V 50kw
Hydraulic Reservoir: 79 gallons
