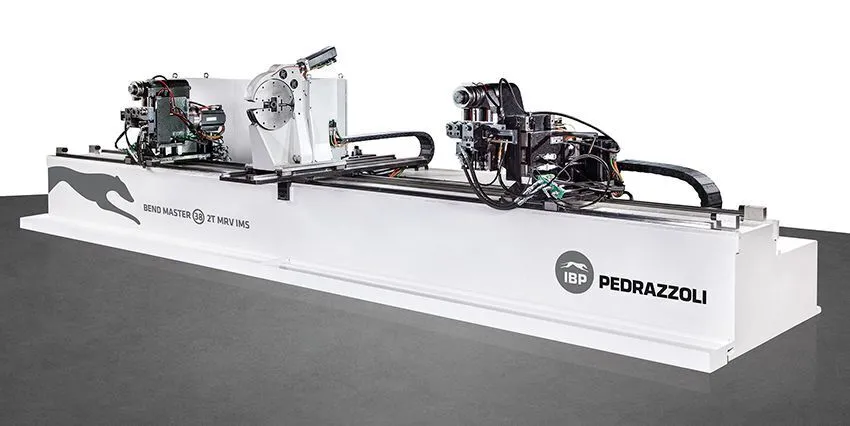

NEW PEDRAZZOLI Bend Master 38 High-speed Electric Bender
Overview
Description
Introducing the Pedrazzoli Bend Master 38, featuring advanced electric axis control enabling simultaneous clockwise and counter-clockwise bending in a single cycle. Its ingenious multi-stack tooling design excels in creating both fixed and variable radius bends. Crafted from top-tier steel, the machine’s framework guarantees durability.
Every element of the Bend Master 38 is meticulously machined to precise standards, with dimensions verified by cutting-edge measuring systems. The linear guide movements showcase re-circulating ball spheres, brushless motors, and a robust mechanical composition. For better precision, a tool post strengthening tie rod is included.
● Clockwise and counter-clock wise bending
● Variable and multi-radius bending in the same cycle
● Compact bending head design accommodates most applications
● Intuitive IMS touchscreen control
● Electric axis for greater precision
● FANUC drive controllers for improved reliability
● Innovative tube stop allows positioning from rear of carriage (optional)
● Automatic adjustment of tools
● Boost for tight radius bending with synchronized control of axis
● Torque controlled positioning of carriage on incline tooth precision gear rack
● Controlled torque of clamp die and pressure die
● Automatic lubrication work piece
● Rapid coupling system for quick mandrel rod installation
● Safety light barriers with programmable work zone
● Central lubrication of guides and ball screws
Specifications
Capacity: 1.5″ x .095
CW and CCW Bending: Right Left Independent
Maximum CLR CW: 6″
Maximum CLR CW-CCW: NA
Minimum Inside Radius with Standard Spindle: 1.2″
Variable Radius Bending: Yes
Maximum Bend Angle: 180°
Min. Distance Between Bends: 0.5 x Diameter
Max. Distance Between Bends: 204″
Max. Stroke Clamp Die: 3.15″
Max. Stroke Mandrel: Machine without Mandrel
Section Modulus cm³: 2.33
Horizontal Head Travel: 19.6″
Vertical Head Travel: NA”
Number of Bend Heads: 2
Punching: Available
Electrically Controlled Axes: 8
Drive Controllers: FANUC
Precision of Electric Axis: + or – .1 mm
Carriage Speed: 32.8″ / sec
Bend Arm Speed: 160° / sec
Tube Rotation Speed: NA
Central Clamp Rotation: 250° / sec
Maximum Tool Stacks: 2-3
Software: IMS
Webcam: Yes
Max. Tube Length on Front Stop: 204″
Max. Tube Length on Rear Stop: NA
Machine Dimensions: 257″ x 78″ x 57″
Height of Work Plane: 47″
Weight: 8,400 lbs
Power: 480V 53kw
Hydraulic Reservoir: 39 gallons
