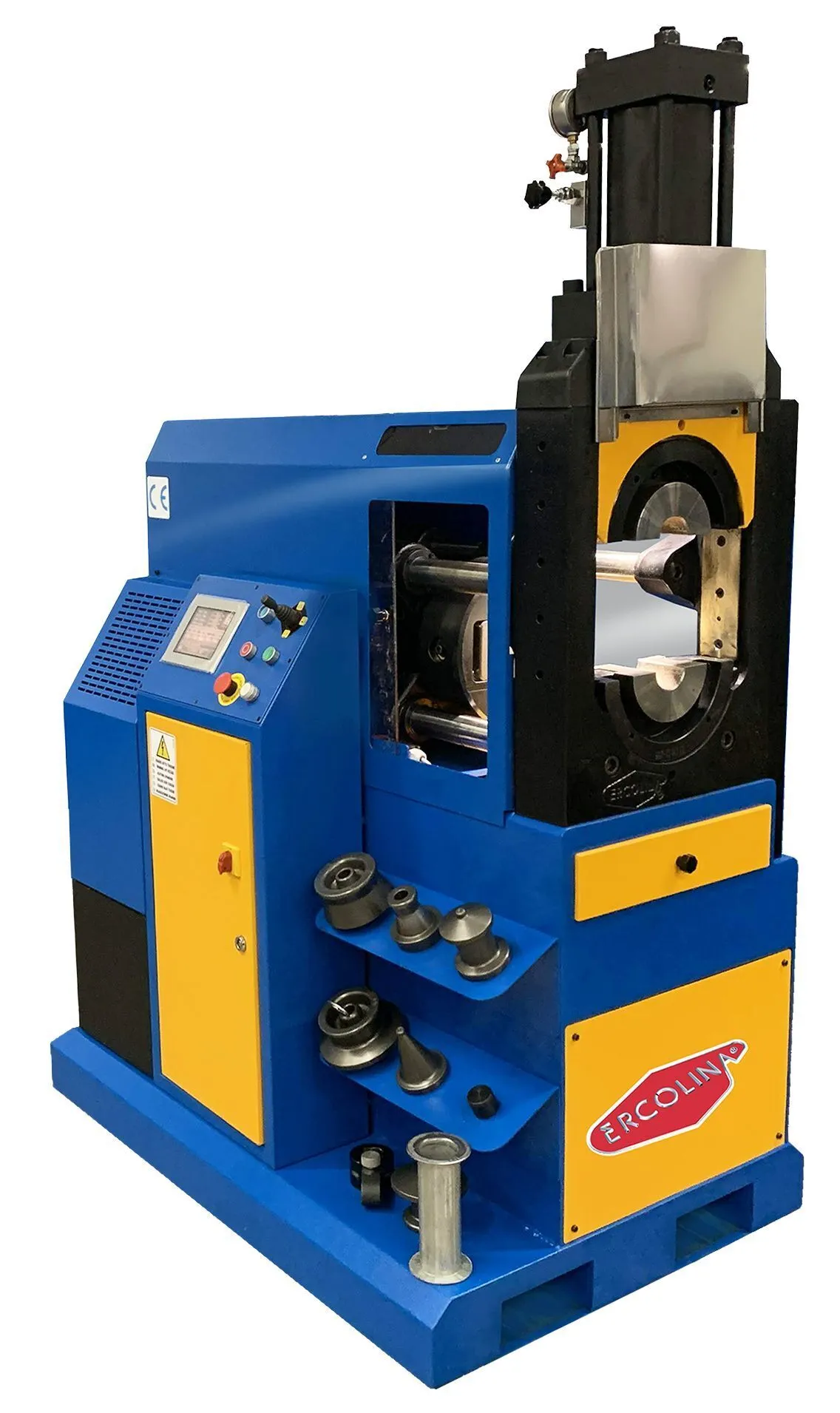

NEW ERCOLINA ERCO FLANGE

Ercolina’s EFB uniformly cold forms a variety of materials including stainless, steel, copper and aluminum to 90° flanges in tubes with maximum wall thickness of .1875″.

The innovative forming process uses a series of double conical tools to avoid swelling and deforming the flange.

Greater accuracy with minimum deformation results in less post-forming operations and higher productivity.

The EFB is equipped with a PLC control with 5.7″ touch screen to easily control settings and machine operation.

Three types of tools for capacity from ¾″ to 8⅝″.

● 37° and 90° flanges
● 8″ gas max capacity
● PLC control, 5.7″ touch screen
● Extremely easy setup
● Quick-change tooling
● Efficient: 30% cost reduction
● Heavy-duty cast iron structure
● Double conical tools avoid swelling and deformation
● Consistent quality results
