208-240 Volt 3 Phase (440-480V Available - specify when orderiing)

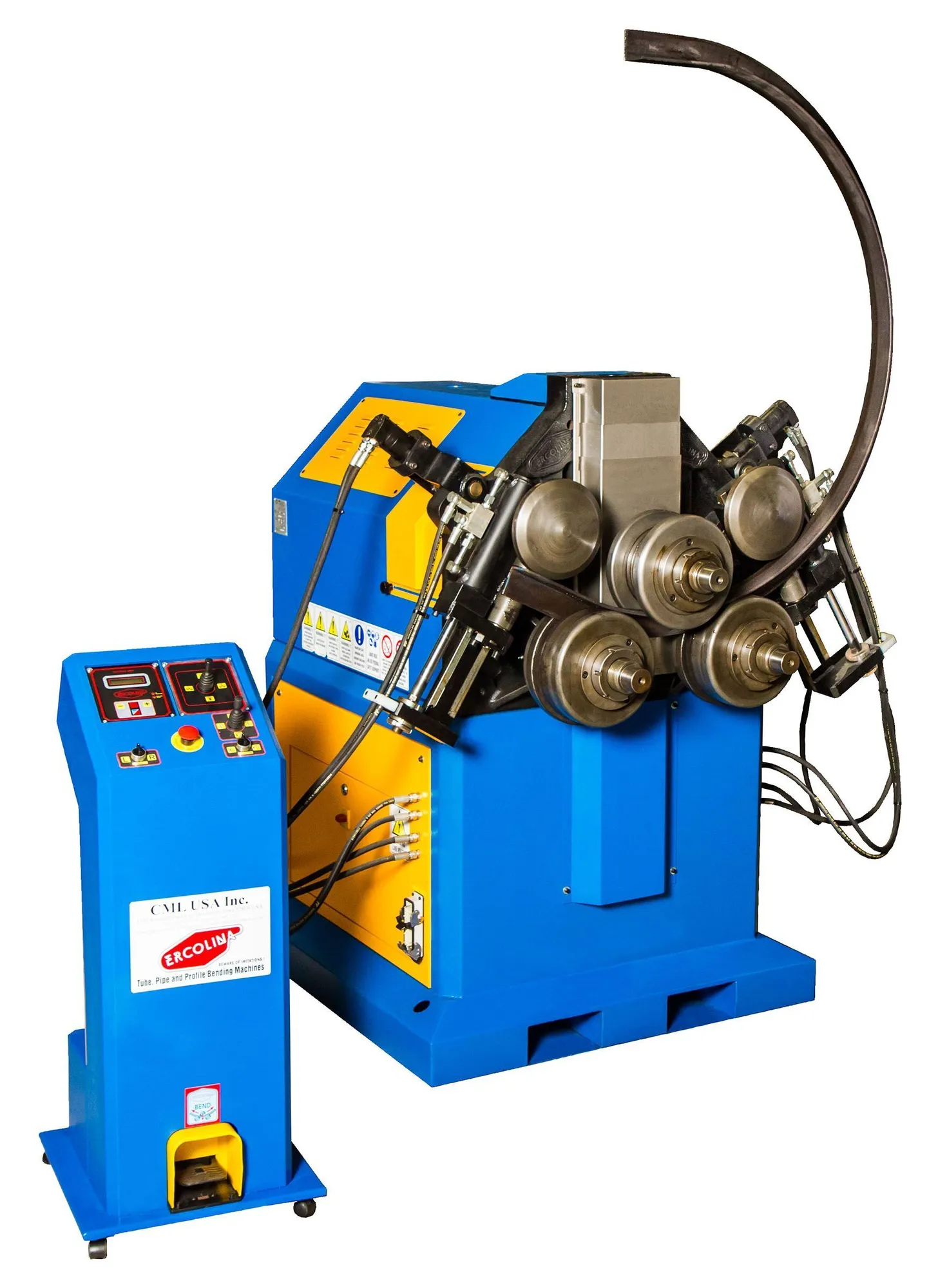

Ercolina’s CE70H3-RLI angle roll model has hydraulic center roll positioning with hydraulic anti-twist system for angle iron “Leg In” applications.
Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.
● 70mm roll shaft diameter
● Maximum pipe capacity 3″ Sch. 40
● Maximum angle capacity 3″ x 3″ x 3/8″
● Bending speeds 20% faster than competitive machines
● Universal tooling set included with each machine – 9.5″ O.D.
● Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
● Heavy duty structure and rigid components for high section modulus ratings
● Reinforced engineered mainframe design proven to outperform competitive models
● Three axis hydraulic twist system for angle iron “Leg-in” applications
● Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
● Programmable touch pad controls with digital center roll positioning display
● Memory storage with eight (8) individual programs and unlimited passes
● Remote control pendent with low voltage controls and foot pedal switch
● Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
● Inline direct drive roll shaft system with motor and brake on each shaft - 3 rolls driven
● All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
