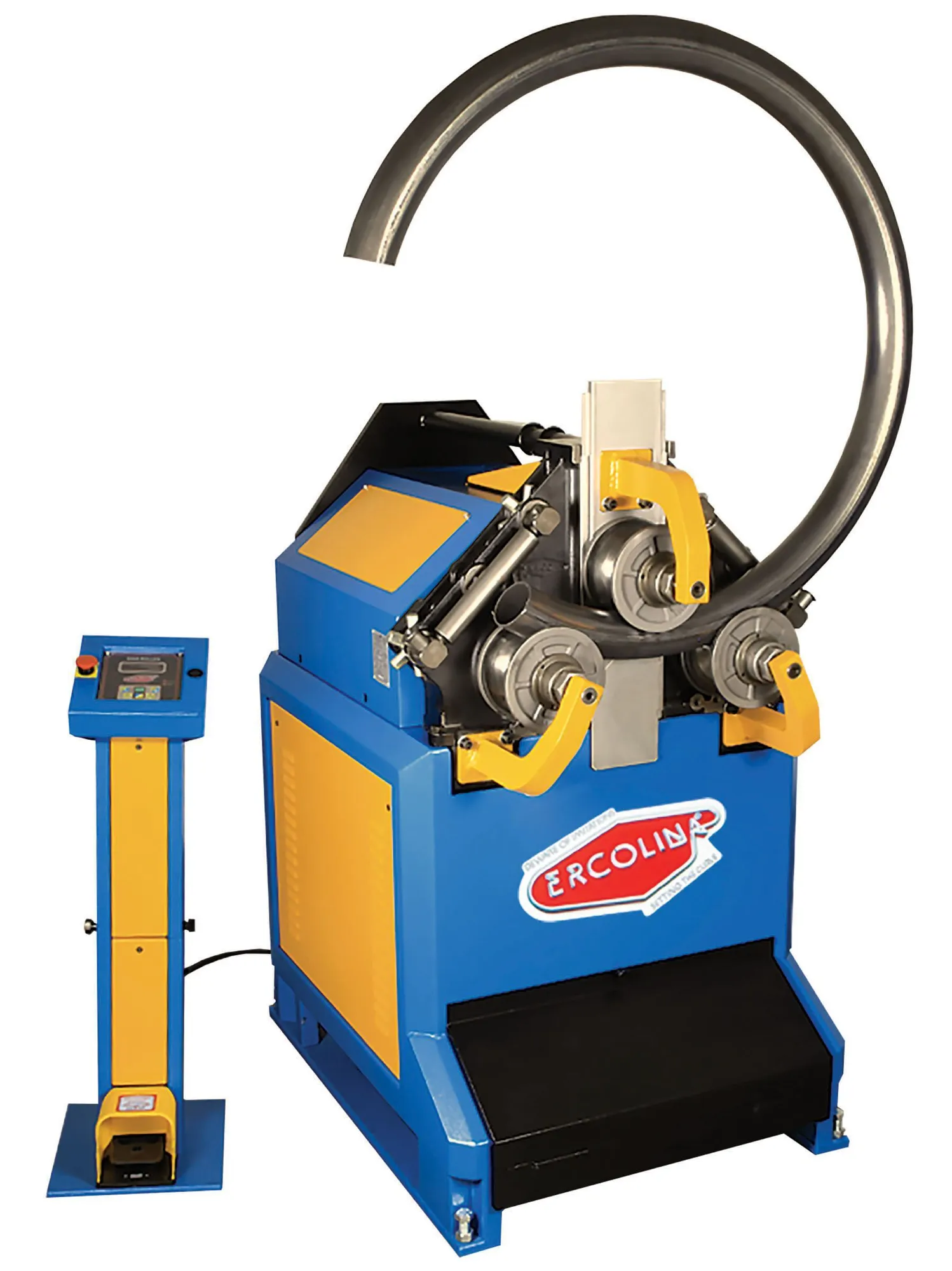

NEW ERCOLINA CE60H3 Angle Roll Machine - 220-440V

220-440 Volt Three Phase (440-480V Available - specify when ordering)

Ercolina’s CE60H3 angle roll model offers hydraulic center roll positioning.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● 50mm roll shaft diameter
● Maximum pipe capacity 3″ Sch. 10
● Maximum angle capacity 2-1/2″ x 2-1/2″ x 3/8″
● Bending speeds 20% faster than competitive machines
● Universal tooling set included with each machine – 7″ OD
● Uses same tooling as CE50
● Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
● Roll shafts supported with conical steel bearings on each side of A Frame
● Heavy duty structure and rigid components for high section modulus ratings
● Reinforced engineered mainframe design proven to outperform competitive models
● Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation
● Touchpad controls with digital center roll positioning
● Tie bar supports for each shaft
● Hydraulic machine with memory storage has eight (8) individual programs and unlimited passes
● Remote pendent with low voltage controls and foot pedal switch
● Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
● Inline direct drive roll shaft system 3-roll driven
● Optional Anti-twist correction system for angle iron “Leg In” applications

All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
