SPC6988 Screener and Sifter 14" dia x 108" l trommel screener Stainless Steel Contact Parts

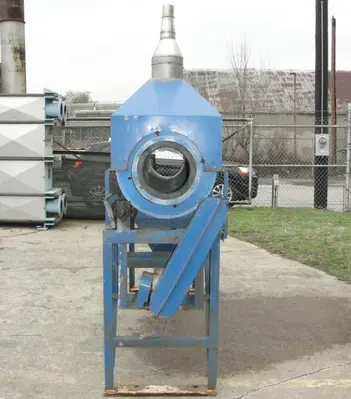

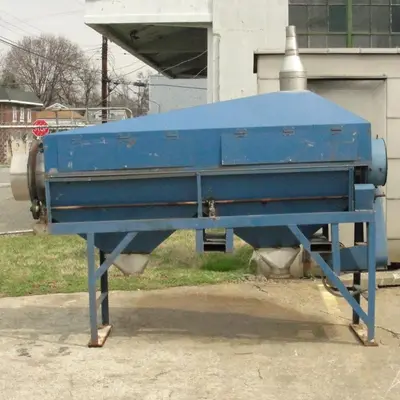

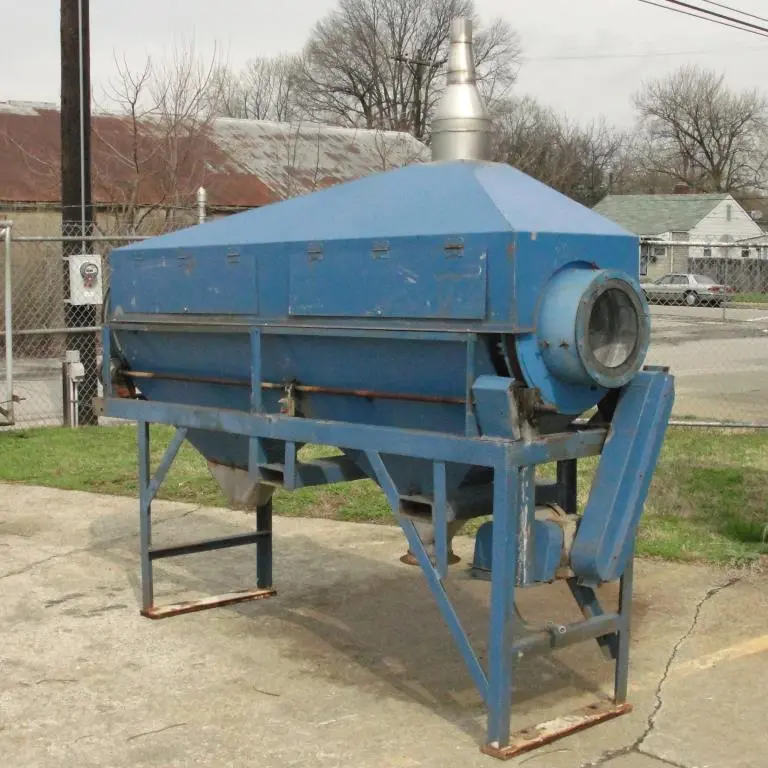

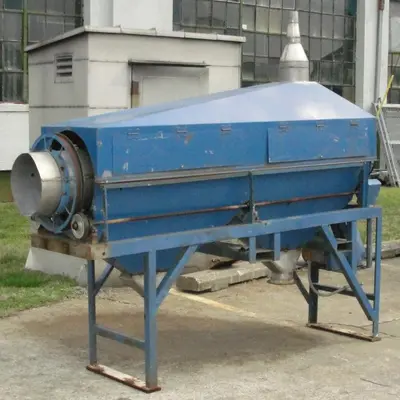

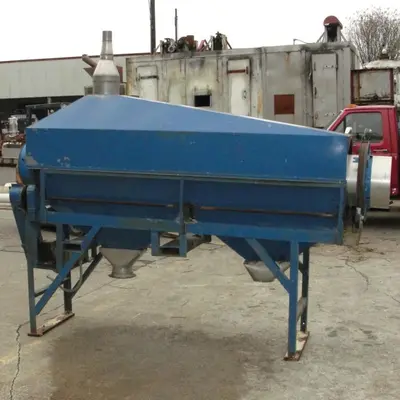

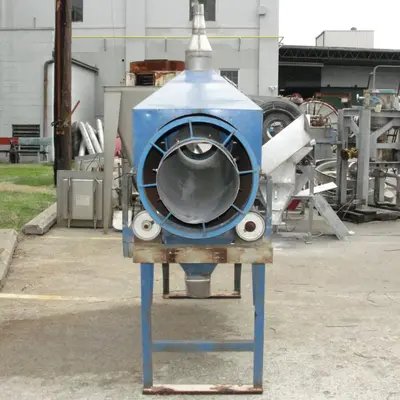

Stainless steel trommel screen or rotary screener. The rotary screener currently has a 14" diameter x 108" long stainless steel tube with no holes instead of a screen. The tube inlet is 46" from the ground and the outlet is 40" from the ground. The hood over the tube has a 3" diameter inlet on top and (2) 6" wide x 36" long hinged access doors on the side. The bottom has (2) 6" diameter outlets that are 18" from the ground. The trommel is driven by a ½ hp 1725 rpm motor. Overall dimensions are: 32" wide x 116" long x 96" tall. Requires 230/460 vac 3 phase electrical supply.

Diameter: 14"
Length: 108"
Size: 14" dia x 108" l
