SPC9225 Distillation Column and Still 365 gallon Liberty Coppersmith pot still 25 psi, Copper

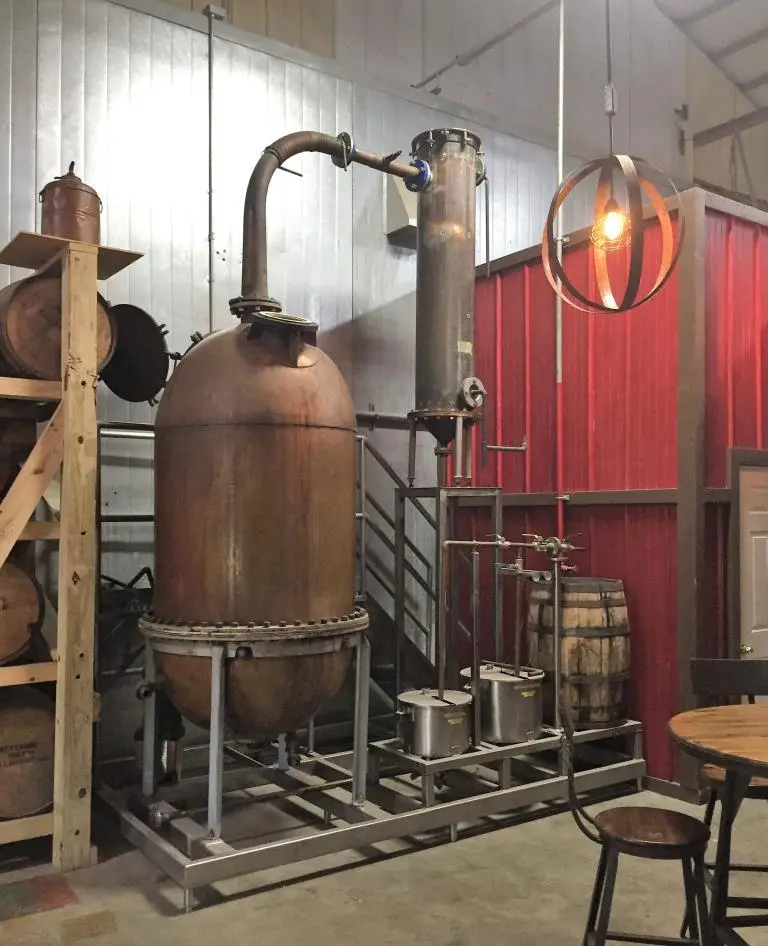

Liberty Coppersmith 365 gallon copper pot still. 25 psi internal pressure. Jacket covers the bottom dish of the kettle. Has hammered finish. 36" diameter with 54" straight side height. Has a 24" dome top and 24" dish bottom. Also includes a copper shell and tube condenser. The still is assembled on a stainless steel skid ready for placement in a distillery. The skid includes a 45 gallon, a 10 gallon and a 5 gallon stainless steel tanks for heads, hearts and tails. There is a set of two remote thermometers, one for the pot temperature and on for the vapor temperature. There is a stainless steel walkway with set of steps. All copper pipping need to distill is included along with a brass spirits safe for testing product. The skid measures 6' x 10' and is 13' 8" to top of condenser. Drawing #47214. Serial #L2359. Built in 1947. Would make a good operational show piece for your distillery.
