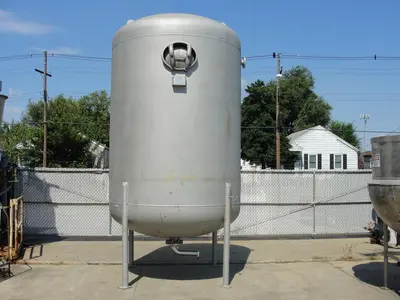

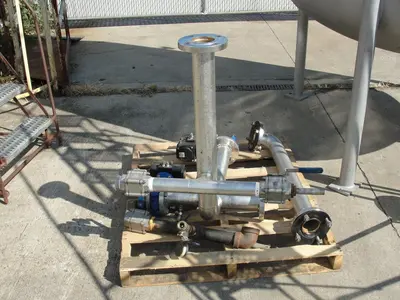

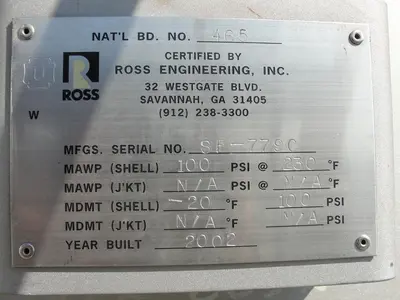

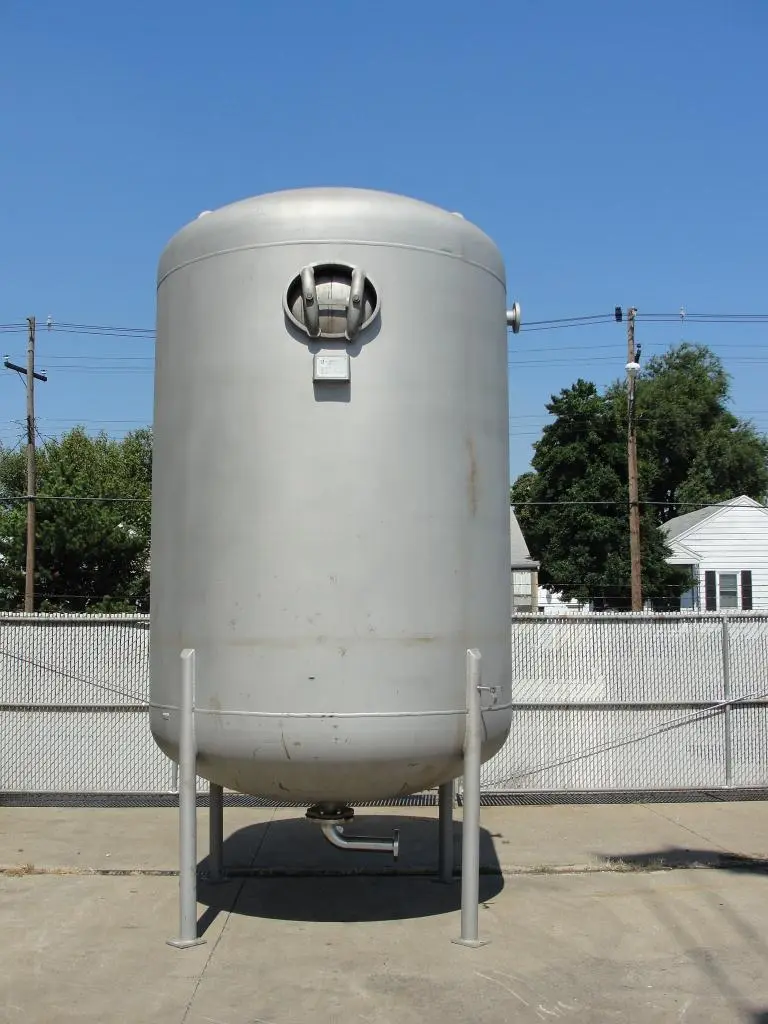

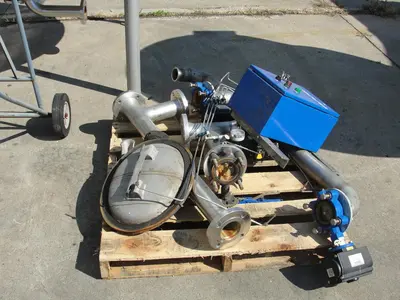

US Filter CT Series 304 Stainless Steel Carbon Purifer fabricated by Ross Engineering of Savannah, GA in 2002. National Board # 465, Manufacturer serial # SF-7790,shell MAWP 100PSI @ 230 degrees F, MDMT 100PSI @ -20 degrees F. Vessel size 84"OD x 99" Straight side. Overal length 176". Manway 18" x 14" elliptical,the bottom has one-6" RFSO nozzle with blind with 3" pipe, one- 2" RFSO with blind flange, the side has one-3" RFSO, one-2" RFSO with blind flange and the top has one 2" RFSO. Unit comes with additional piping, valves and control panel. Unit does not have carbon charge in unit.
Capacity: 2944 gallons
Diameter: 84"
Straight Side Height: 99"
