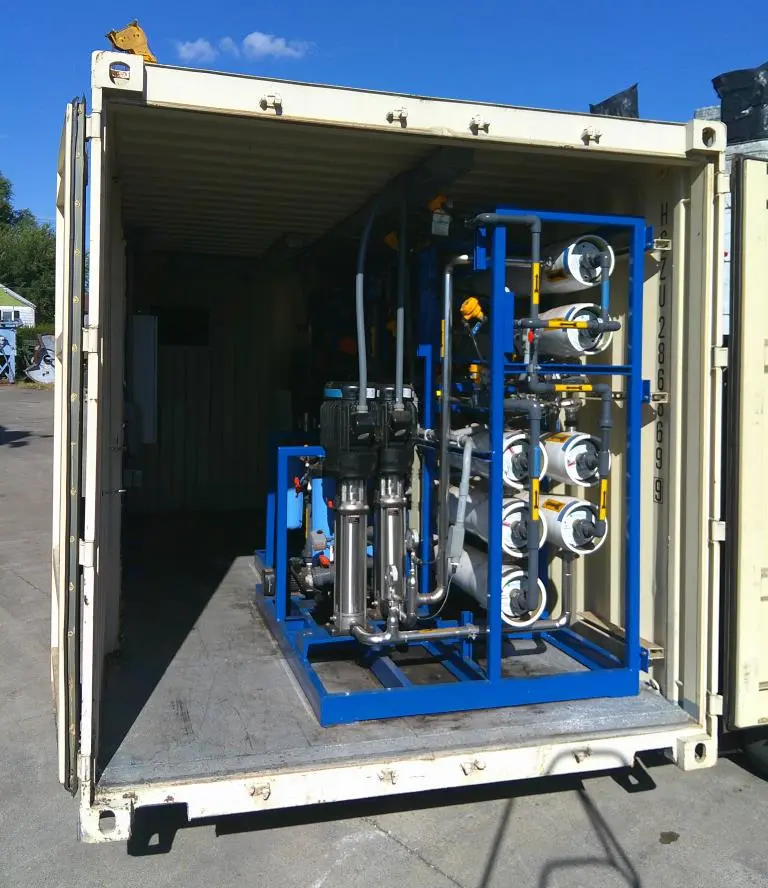

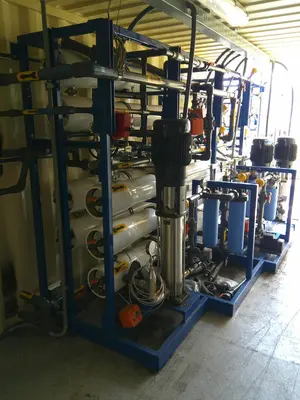

Enaqua containerized 2 pass reverse osmosis system for brackish water.
Design criteria:
First pass
The feed rate is 46 gpm. (One array.)
The first pass inlet water 40-80 psig @ 85F.
Permeate flow rate 30 gpm with TDS less than 100 ppm.
2nd pass
The feed rate is 25 gpm. (Two arrays.)
25 gpm @ 40 psig.
Permeate flow rate 20 gpm. with TDS less than 5 ppm.

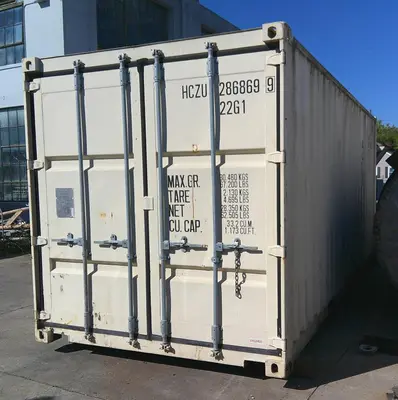

Serial number VH008000Z04000. Power Required 480 vac 3 ph, 100 amps. Built into a 20' shipping container. Overall shipping dimensions are 96" wide x 102" tall x 238" long. Built 2012. This unit was never run in production.
Power Req. (V): 480 vac 3 ph
Flow Rate: 30 gpm permeate flow
Special Comment: Containerized
