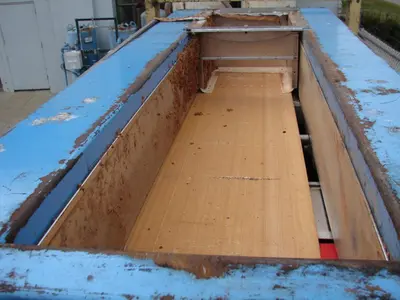

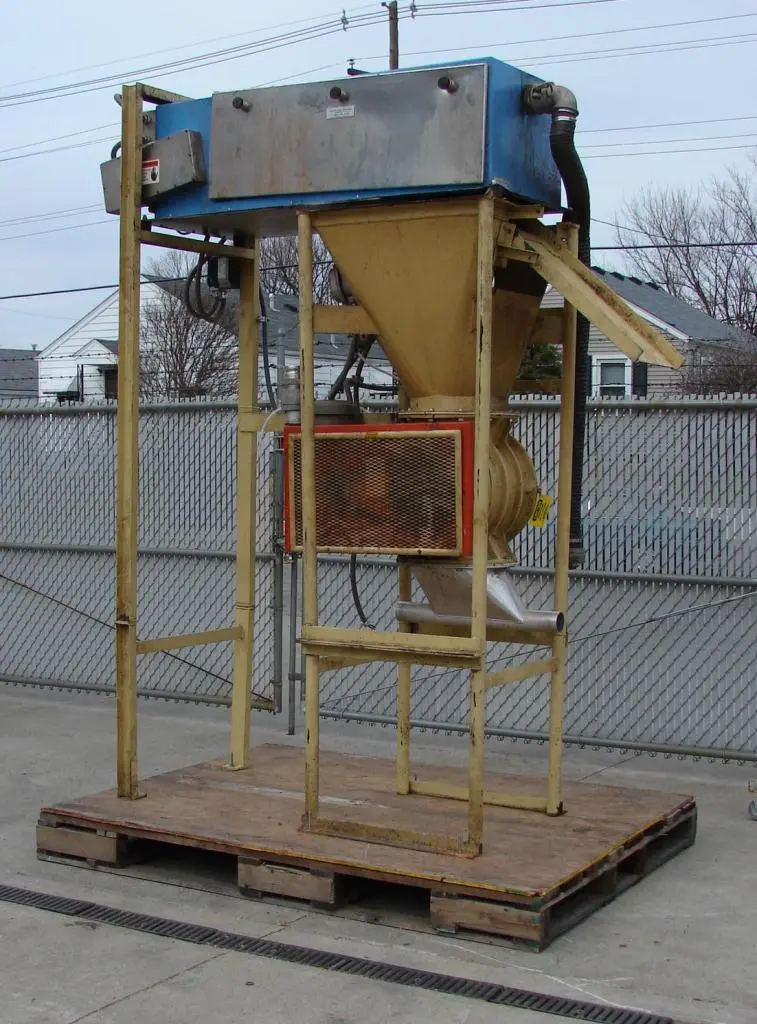

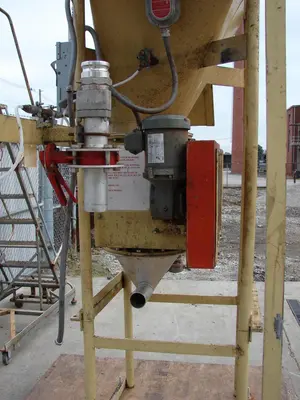

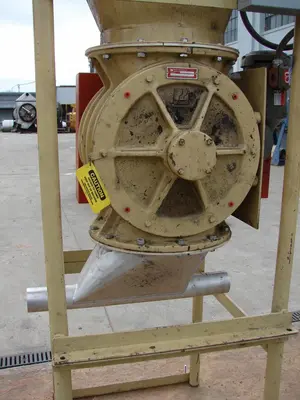

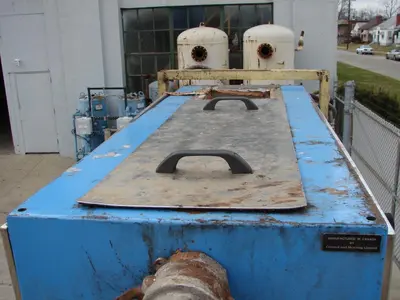

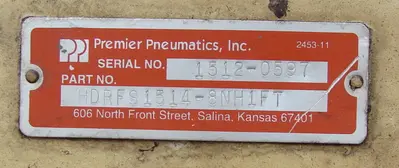

Control and Metering 1' x 6' weigh belt feeder. Model G1350. The belt feeder has a 9.5" x 9.5" infeed at 9' high with a load cell for measuring under the belt. The belt is 12" wide x 6' long and is enclosed by removable panels for cleaning. The belt is driven by a 3/4 hp motor that is operated by a variable frequency speed controller. The belt feeds through a hopper to a Premier Pneumatics 15" rotary air lock. Air lock model is HDRFS1514-8NHIFT with serial # 1512-0597. The hopper has a magnet at the inlet to remove ferrous objects. Overall dimensions are 6' long x 3' wide x 9' tall. Serial # C3467. Requires 230/460 vac 3 phase electrical and pneumatic supplies. Good Condition.
Length (Ft): 6'
Serial No.: C3467
Size: 1' x 6'
Width: 12" wide
