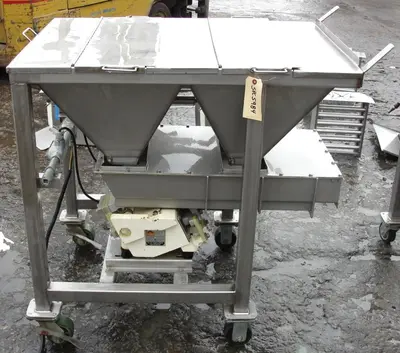

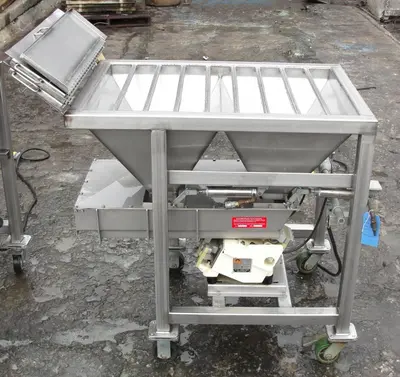

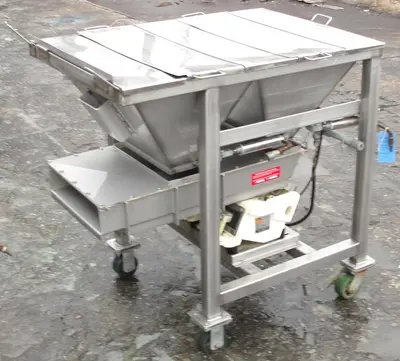

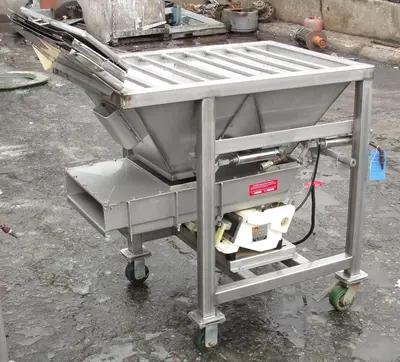

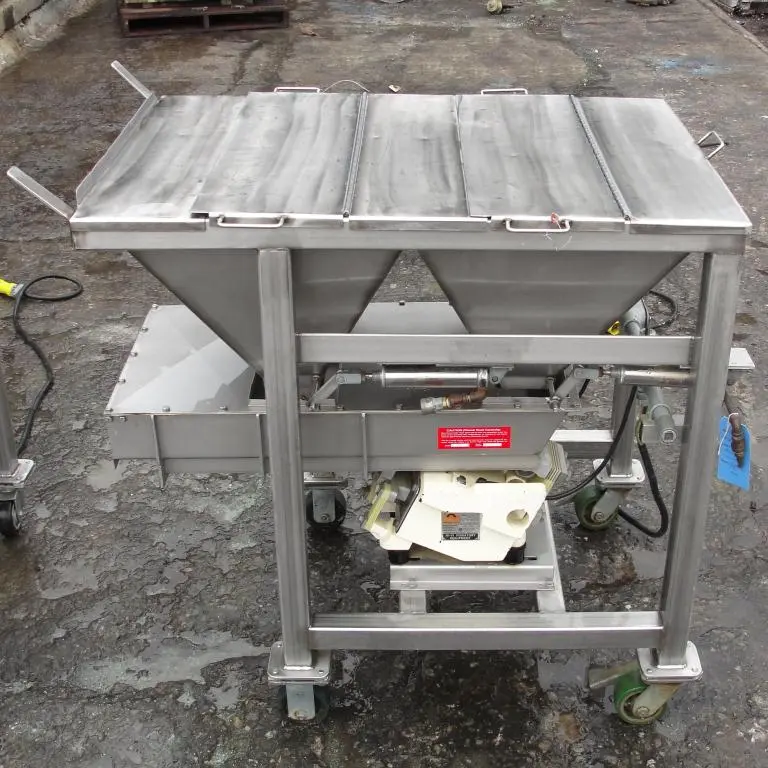

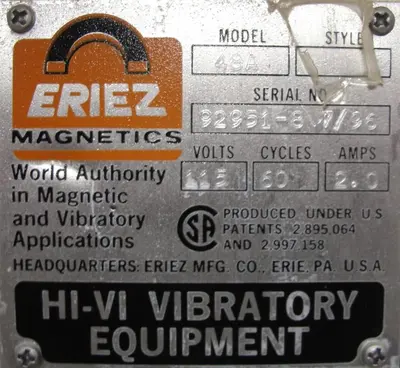

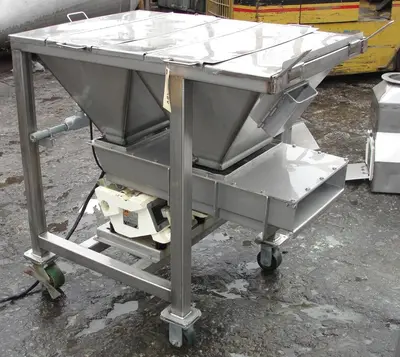

Eriez HI-VI vibratory Equipment mobile stainless steel vibratory feeder model 484. The 2 cu ft feeder has a dual channel hopper with a 36" x 24" grated top with lid 40" from the ground, (2) 14.5" x 4" hopper outlet with flaps, and a vibratory feeder 16" x 3.75" outlet 20" from the ground. The hopper dumps into the vibratory feeder that is 16" wide x 3.75" tall x 30" long. The whole unit has a stainless steel frame with casters for mobility. Overall dimensions are 43" long x 32" wide x 43.25" tall. Requires 115 vac 1 phase electrical supply and air supply.
Length (Ft): 2.5'
Width: 16"
