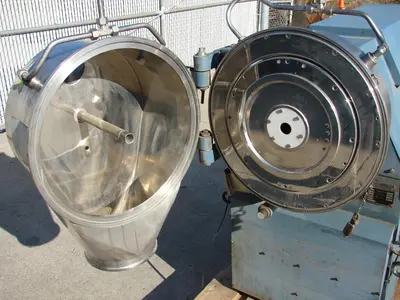

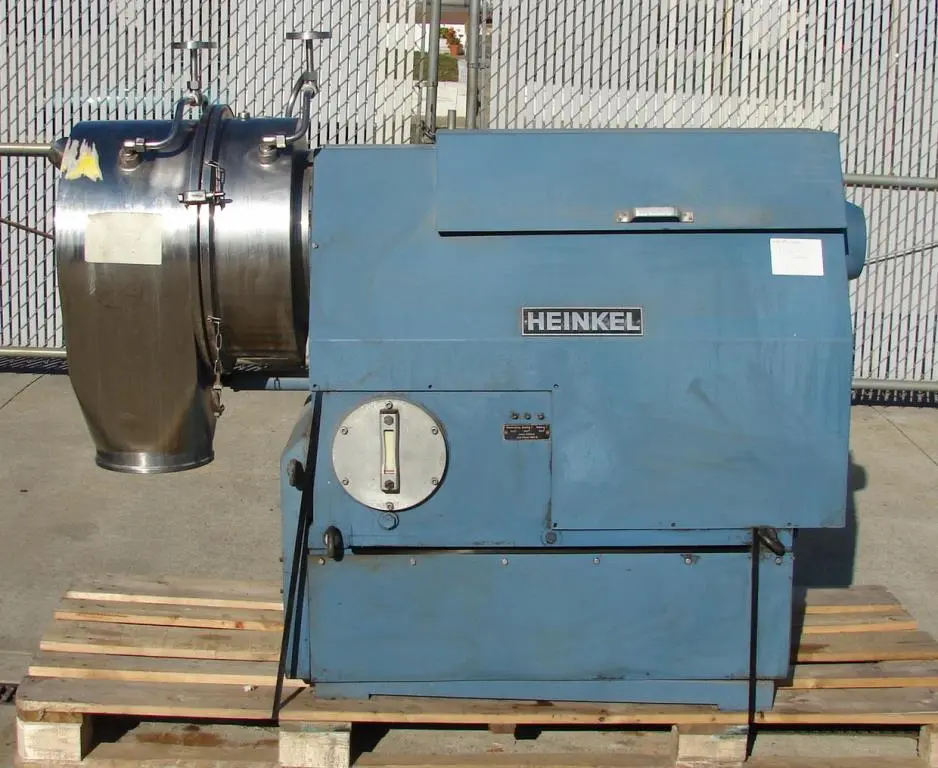

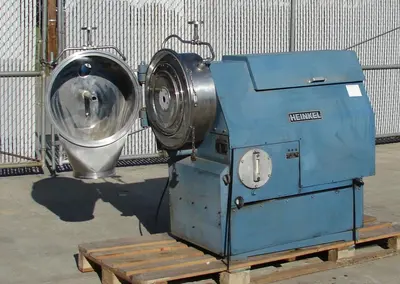

Heinkel Hastalloy C4 Inverting Filter Centrifuge. Type HF300. Serial# 1028/12. The inverting fliter centrifuge is designed to dewater and dry in one process. This centrifuge uses a filter medium which catches the residual material. Then the filter is inverted to discharge the dried residual material throught the end. A video link is available for process description. The bowl is driven by a 7.5 hp hydraulic motor and turns at 3460 rpm to provide 1500 xg of g force. The bowl diameter diameter is 11.81". The filter area is 1.07 sqft. The bowl is capable of handling 1.7 gallon of product. Overall dimensions of the unit 80"l x 36.5" w x 42" h. Requires 460 vac 3 ph electrical source. Shipping weight is 5000 lbs. We can not verify but the unit appears to have never been put into operation.
Hp: 7.5 hp
Power Req. (V): 460 vac
Rpm: 3460

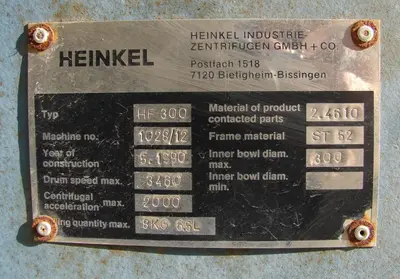

Serial No.: 1028/12
Size: 300mm
