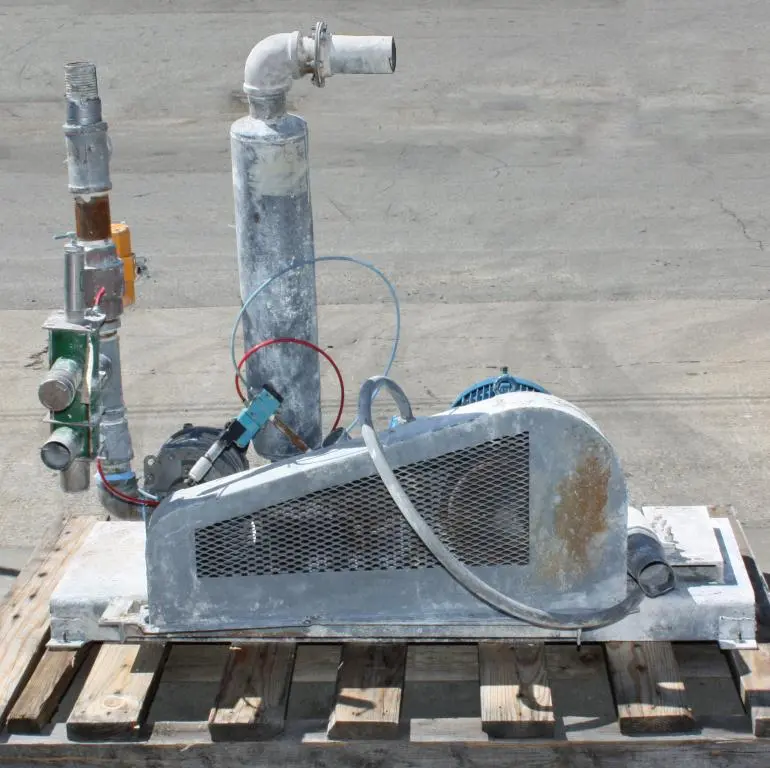

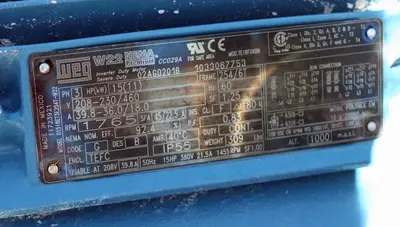

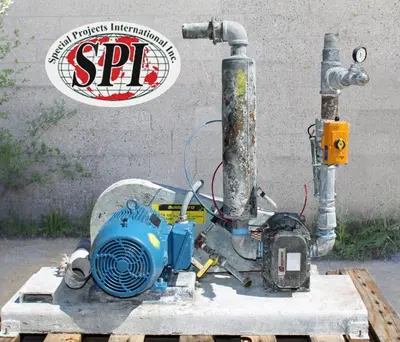

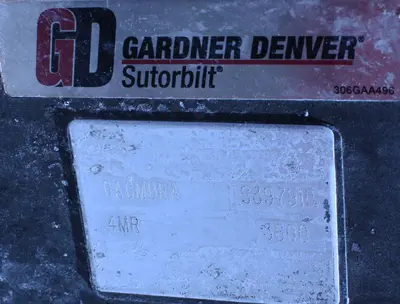

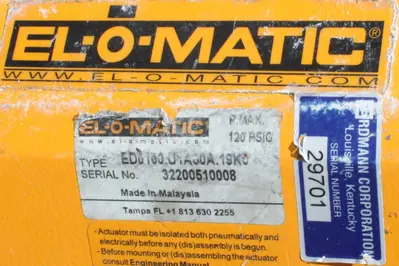

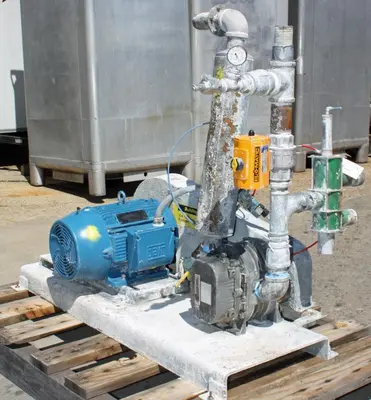

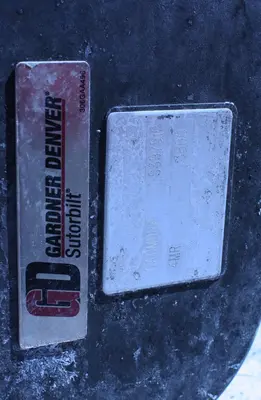

Positive displacement blower with a 2 ½ " intake and a 3" discharge. Gardner Denver Sutorbilt Model # GACMDRA Catalog #4MR blower with 3600 RPM . 10 Psi Max pressure and 16 Hg Maximum vaccum. The blower has a pressure performance of up to 347 cfm and a Vacuum performance of up to 325 cfm. . Driven by Weg W22 Nema Premium 15hp Motor. Equipped in the inlet side with an El-O-Matic actuator Ed0100 with maximum pressure of 120 psig and Clippard Mininitic air valve of 10 psi. Equipped with silencer on discharge end of 3'' of overall diameter. Power required is 208-230/460 vac 3 phase. 60 Hz.
Cfm: 347
Hp: 15
Power Req. (V): 208-230/460
Psi: 10
Serial No.: S397310
