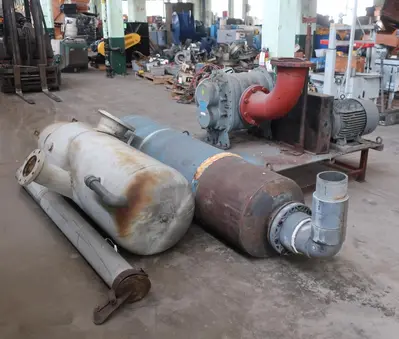

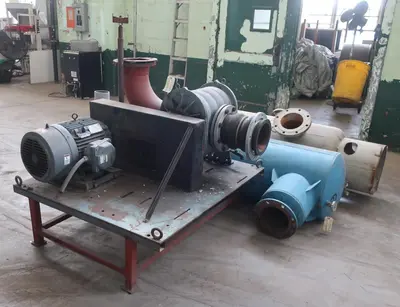

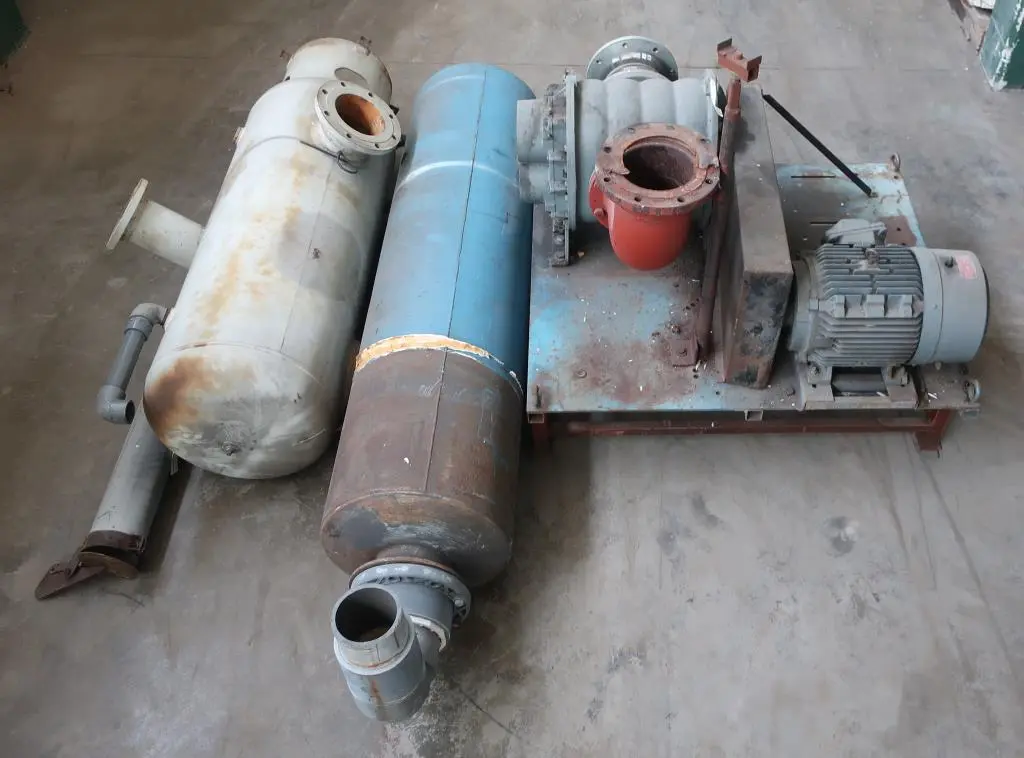

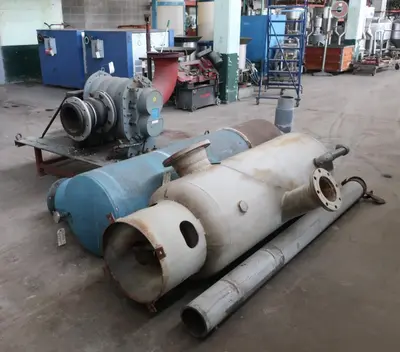

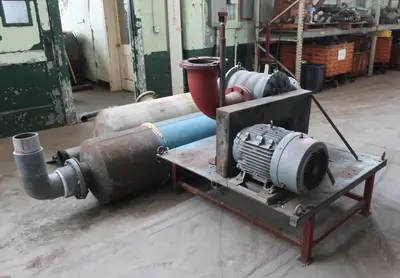

Roots Universal model 718 U-RAI vacuum style positive displacement blower has an 8" inlet and 8" outlet with a 90 degree attachment. Blower is belt driven by a 30 hp, 3925 rpm motor that requires 230/460 vac, 3 ph electricity. Maximum flow is 2316 cfm, maximum pressure is 7 psi, and maximum vacuum is 12" Hg. Equipped with a separation vessel for the intake and a silencer for the discharge. Material of construction is carbon steel, and the overall dimensions of the blower are approximately 52" w x 60" l x 44" h. Mounted on a 16.5" high carbon steel platform. Serial no. 53460
Cfm: up to 2316
Hp: 30
Power Req. (V): 230/460 vac, 3 ph
Psi: up to 7

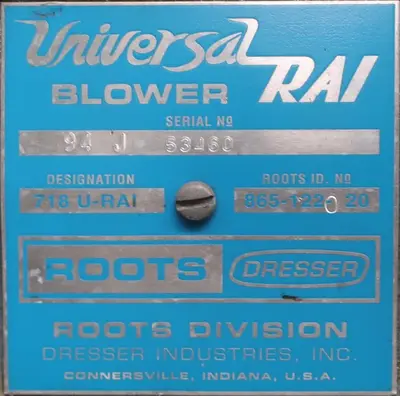

Serial No.: 53460
