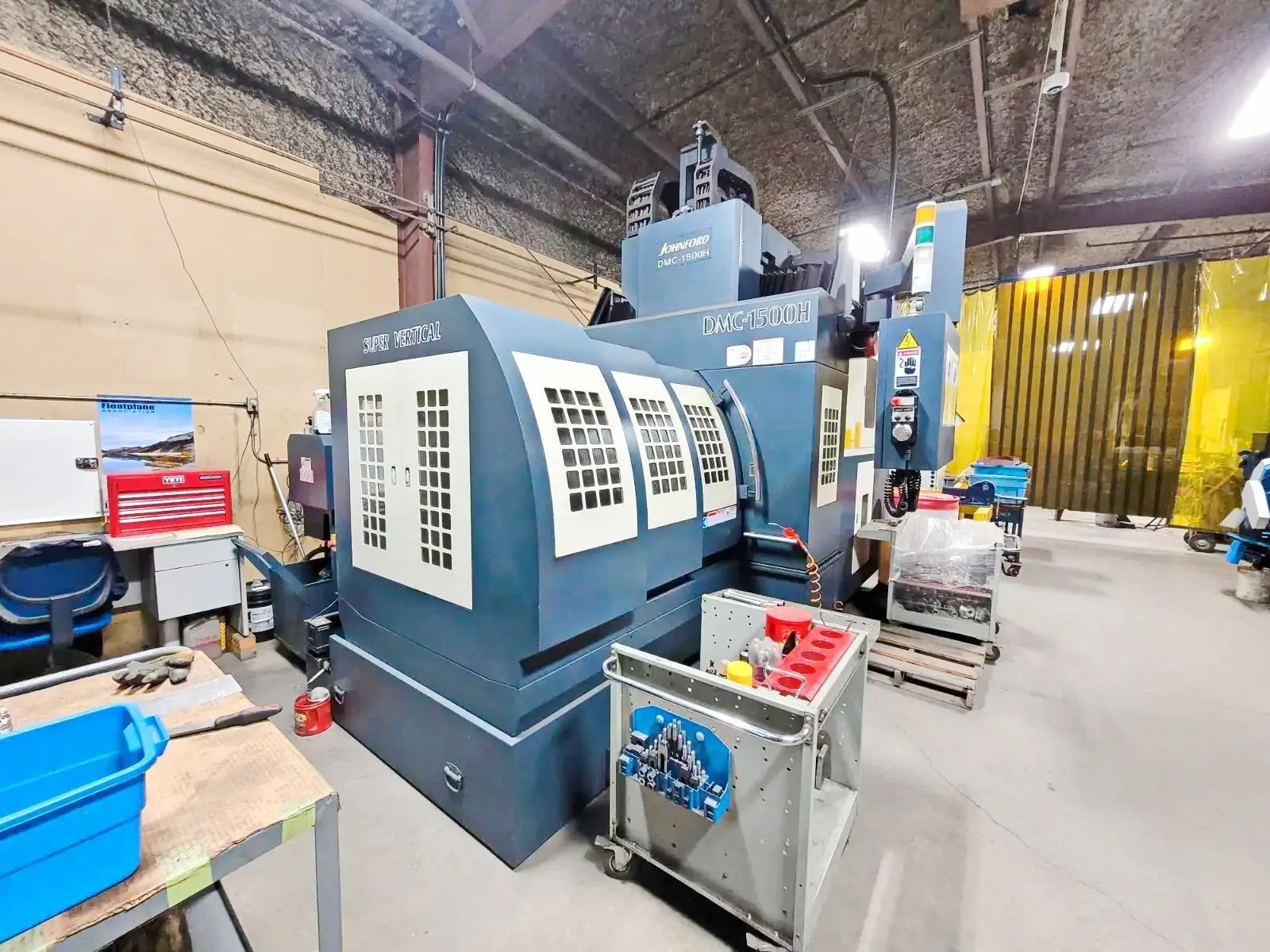

USED 2012 JOHNFORD DMC-1500H

Alberta, Canada
Asking Price
USD $79,500.00
1 available
299Listings|148Followers
Overview
Gantry Machining Centers (incld. Bridge & Double Column)

2012 Johnford DMC-1500H Bridge-Type Vertical CNC Machining Center, TSC, 4th Axis Rotary Table, Renishaw Wireless Probing, Data Server, Upgraded Memory, Chip Conveyor, Additional Tool Holders

Specs
X-Axis
59.1"
1,501.1 mm
Y-Axis
35.4"
899.16 mm
Z-Axis
30"
762 mm
Power
25 hp
18.6 kW
RPM
6,000 RPM
6,000 RPM
# ATC
24
24
Taper
CAT-50
CAT-50
Table-W
33.5"
850.9 mm
Table-L
63"
1,600.2 mm
Distance Table Top To Spindle Nose
35.9"
911.86 mm
Max Table Load
22,000 lb
9,979 kg
Feed Rate (X/Y/Z)
944 in/min.
944 in/min.
Made In
Taiwan
Taiwan
Control
CNC (Fanuc Oi-MC)
CNC (Fanuc Oi-MC)
Dimensions
196" X 128" X 148.8"
196" X 128" X 148.8"
Weight
34,586 lb
34,586 lb

* Low hours

Equipped With

Through spindle coolant
4th axis rotary table
Renishaw wireless probing
Chip conveyor
Data server
Upgraded memory
approx 50 through coolant tool holders
