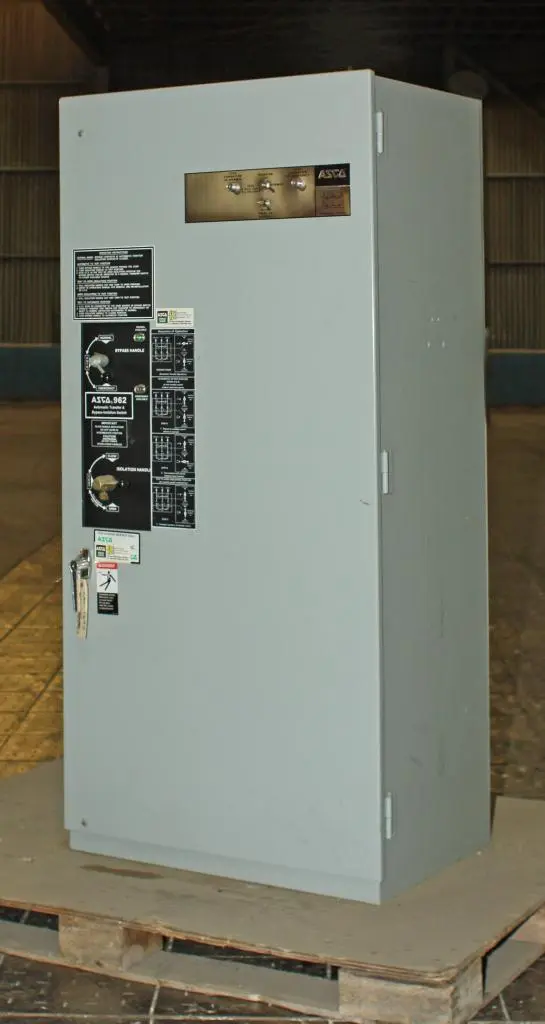

Asco 962 Automatic Transfer & Bypass-Isolation Switches are applicable for emergency and standby systems applications. Amperage size is 150 Amps. The Voltage is 120 V and 60 cycles. Equipped with a Group 6 Microprocessor control panels. No momentary disconnection of neutral during transfer with unique overlapping neutral switching pole. Listed under UL 1008, CSA certified: UL listed through 480 VAC; CSA certified through 600 VAC. Meets all automatic transfer switch requirements of: NFPA 110, Emergency and Standby Power Systems NFPA 99, Essential Electrical Systems for Health Care Facilities NFPA 70, National Electrical Code. UL-listed Al-CU terminal lugs standard on switches rated 150-2000 amps (bus connections are provided on switches rated 3000 - 4000 amp). The Unit dimensions: 19” x 28 ½ “OAW x OAL and 64” OAH.
Amps: 150 Amps
Volts: 120 V
Special Comment: 60 Hz
