USED CULTER-HAMMER & WESTINGHOUSE WLI LOAD INTERRUPTER METAL ENCLOSED SWITCHGEAR
Overview
Description

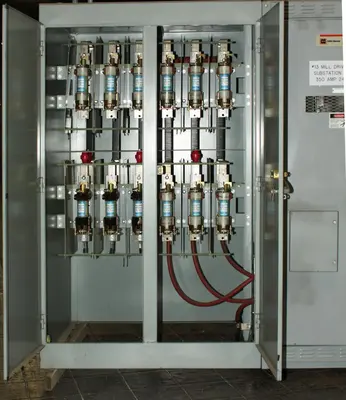

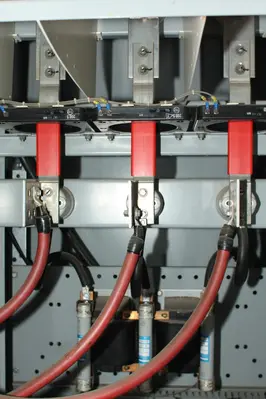

Westinghouse Culter-Hammer Load Interrupter Metal Enclosed Switchgear 2400V system voltage. Type WLI metal enclosed switchgear consist of an air insulated, three pole, gang-operated, quick-make, quick break, and load interrupter switch in a floor mounted metal enclosure. The type WLI load interrupter switchgear has several built-in features to reduce hazards and to provide proper operating sequences. Build on number CNLA76702 and Drawing number SM95A743 AOI GOI. Switch style 7274A63G02.
KV Rating Ampere Rating
Nominal 4.8 Continuous 600 A
Maximum 5.0 Interrupting 600 A
B.I.L 60 Momentary 40KA
Fault close40KA
Voltage transformer type is VIY-60.

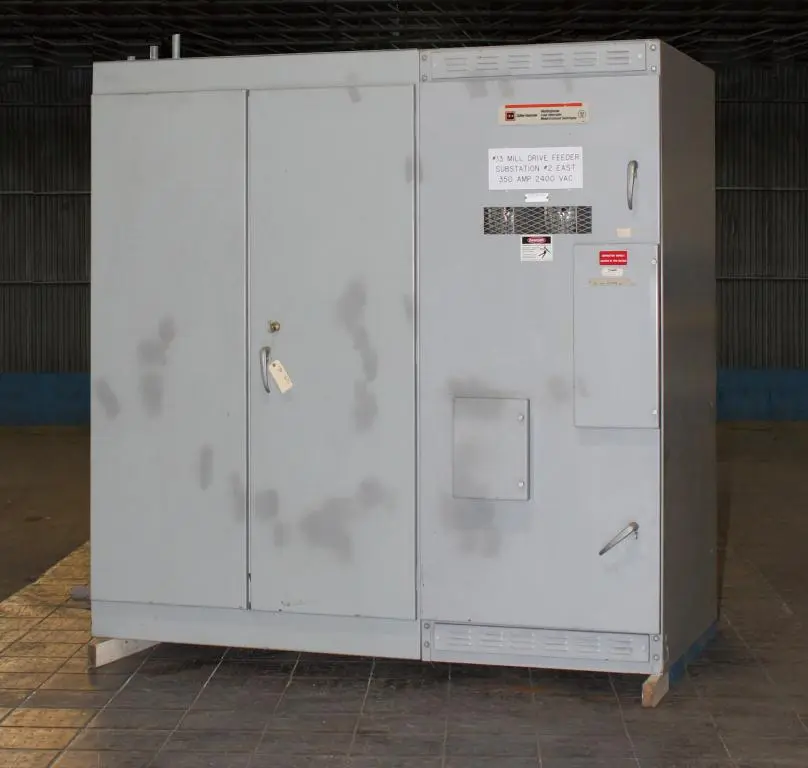

The Unit has 53’’ and 96’’ of overall width and length and 96’’ overall height.
Specifications
Amps: 350
Volts: 2400
