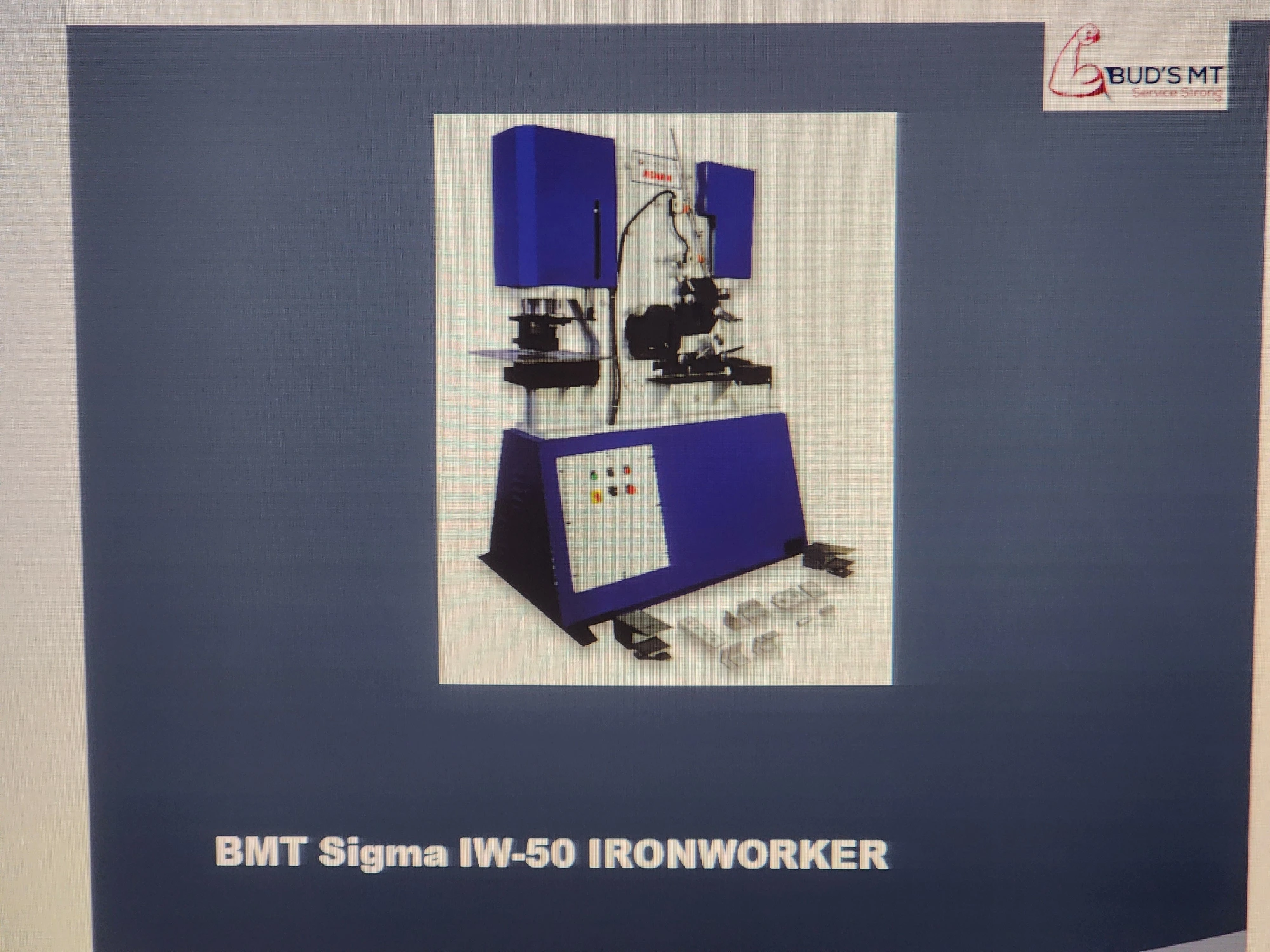

NEW 2024 ENERGY MISSION BMT EM Ironworker-50

TECHNICAL SPECIFICATION IW 50
TONNAGE 55 T
PUNCHING
Diameter x max. thickness Ø .8 x .6”
Diameter x thickness Ø 1.5 x .3”
Maximum Diameter Ø 2 x .3”
Cylinder Stroke 3”
Stroke count in (.8”) 15 Strokes/min.
Throat depth 9.8”
Working height 39”
Clamping Arrangement Manual
ANGLE SHEAR

Angle section (90°) 4x4x.4”
Angle section (45°) 2.75x.24”
Working height 39”
SHEET METAL SHEAR

Sheet metal 6x.6”
Sheet metal 9.8x.4”
Blade Length 12.75”
Shearing with angle 4x4x.4”
Working height 34”
NOTCHING
Thickness .24”
Width 1.8”
Depth 3”
Working height 35”
CHANNEL SHEAR Channel section (90°) 4 x 2”
(C-Channel)
OPTIONAL TOOLS Round / Square Shear Ø 1.25-1.25”
OPTIONAL TOOLS I-Beam section (90°) 4x2”
(I-Beam)
OPTIONAL TOOLS Special
V-Notching tooling 3 x 3 x.24”
OPTIONAL TOOLS V-bending 11.8 x .31”
TECHNICAL DETAIL Motor Power 5 Hp.
Weight (Approx.) 3,750 lbs.
Machine Dimensions (LxWxH) 62 x 40 x 81”
