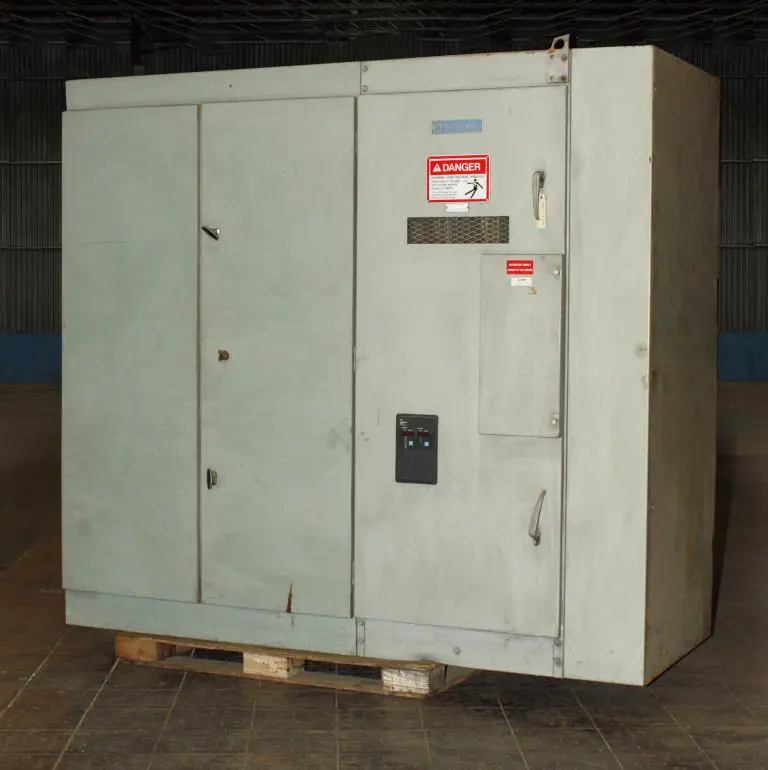

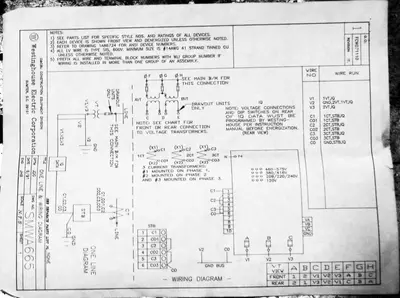

Westinghouse Load Interrupter Metal Enclosed Switchgear. Type WLI metal enclosed switchgear consist of an air insulated, three pole, gang-operated, quick-make, quick break, and load interrupter switch in a floor mounted metal enclosure. The type WLI load interrupter switchgear has several built-in features to reduce hazards and to provide proper operating sequences. Build on number CNER20602 and Drawing number SM912A58 A02 G02. Switch style 7274A62G32.
KV Rating Ampere Rating
Nominal 4.8 Continuous 600 A
Maximum 5.0 Interrupting 600 A
B.I.L 60 Momentary 40KA
Fault close40KA

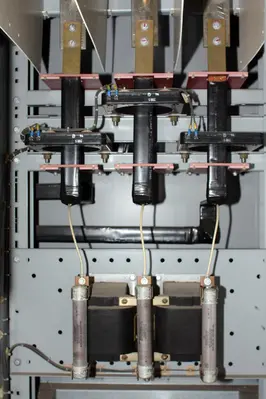

Voltage transformer type VIY-60.
The Unit has 42’’ and 98’’ of overall width and length and 90’’ overall height.
Amps: 600
Volts: 5.0 kV
