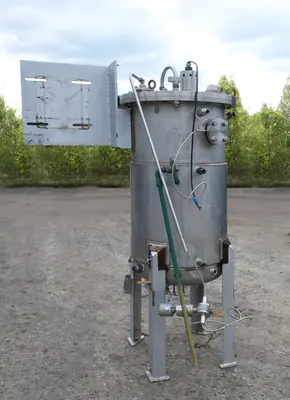

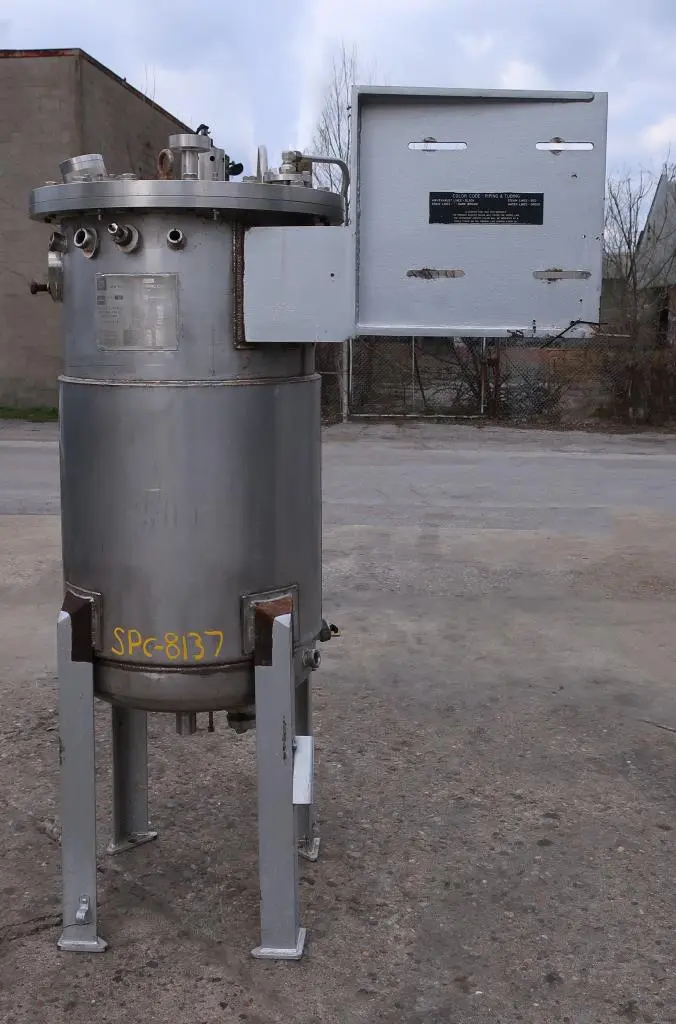

SPC8137 Reactor 250 liter capacity New Brunswick Scientific Co. bioreactor 40 psi internal, 35 psi jacket, top center agitator, Stainless Steel

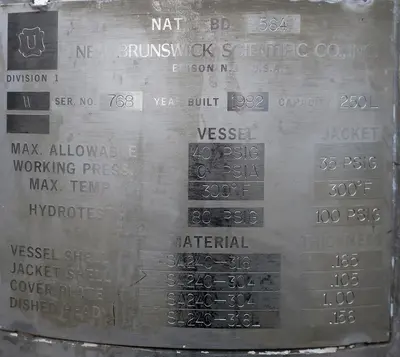

New Brunswick Scientific Co. 250L (60 gallon) capacity Stainless Steel Tank. National Board #564. Diameter is 22” with a 36” straight side with jacket on the lower 24". Vessel- Max Allowable Working Pressure 40 PSIG/O PSIA. Jacket-Max Allowable Working Pressure 35 PSIG. Vessel- Max Temp. 300°F. Jacket- Max Temp. 300°F. Vessel- Hydrotest 80 PSIG. Jacket- Hydrotest 100 PSIG. The top has an 22”RFSO with blind flange with a 1.5” agitator shaft (no motor included) , one 2” sightglass, two- ¼” plug, two- ½” plug, three-3/4” plugs, one- 1” 150lb. Pad flange, one light glass, one-2” Pressure Gauge Connection Point and three lag bolts. The top portion has one-2” padded flange, one-2” padded flange with blind, four-3/4” threded couplings with fittings, one-3/4” threaded coupling, two-1” sanitary threaded.The lower 24” jacketed portion has two- 1'” in/out and one-1 1/4” threaded coupling.Below the jacket is two- 1” couplings, two- 1” couplings with fittings, two- 1’ sanitary threaded with fittings. The bottom has one-2” padded flange with blind, one-2” threaded coupling, one- 1 ½ ” center valve flange, and one Gould Pressure Transmitter. Built 1982. Sits on four carbon steel legs. Overall Size is 71” x 49”.

Agitator: top center
Capacity: 250 liter
National Board No.: 564
Psi Internal: 40
Psi Jacket: 35
