SPC8140 Reactor 3000 liter capacity New Brunswick Scientific Co. bioreactor 40 psig psi internal, 35 psig psi jacket, top center agitator, Stainless Steel

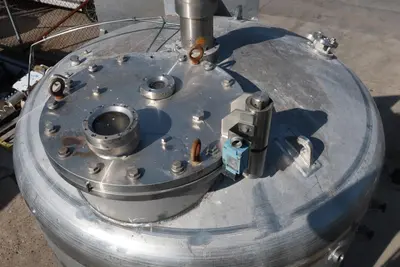

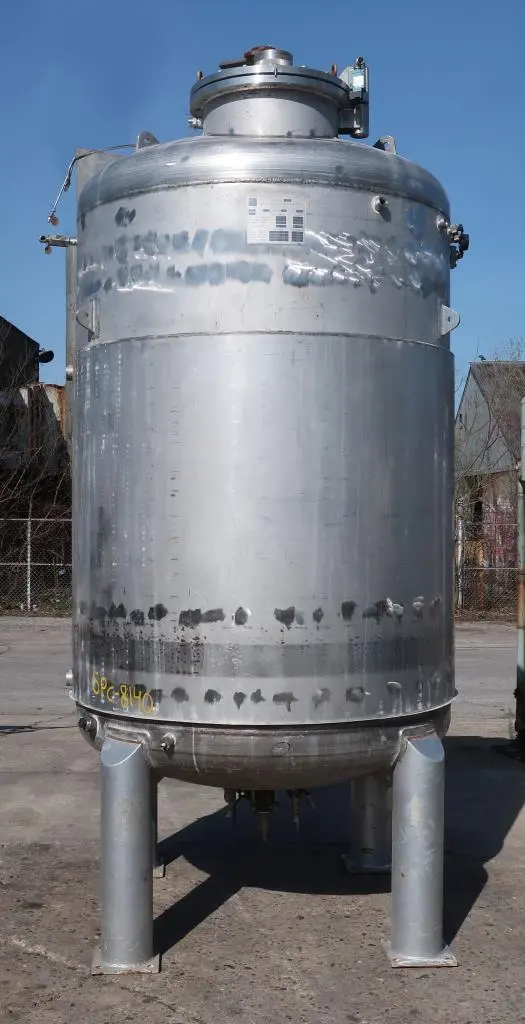

New Brunswick Scientific Co. 3000L (750 gallon) capacity Stainless Steel Tank. National Board #569. Diameter is 48” with a 72” straight side with jacket on the lower 24". Vessel- Max Allowable Working Pressure 40PSIG/O PSIA. Jacket-Max Allowable Working Pressure 35 PSIG. Vessel- Max Temp. 300°F. Jacket- Max Temp. 300°F. Vessel- Hydrotest 80 PSIG. Jacket- Hydrotest 100 PSIG. The top has a 18”RFSO with blind flange with 4” sightglass, a 2” sightglass , one-¼” plug, one-½” plug, one- ¾” plug and one-1” threaded coupling on the neck. The top of the tank has a 1-1/2” agitator shaft (no motor included), ¾” threaded coupling, ¼” threaded coupling, one-1” 150lb. Pad flange, one-4” 150lb. Pad flange, and three lift lags. The upper 24” inch portion of the tank has three-2” threaded couplings, one-3/4” threaded coupling, one-1” threaded coupling with fitting, two-1” sanitary threaded, one-2” 150lb. Pad flange with blind, and one Ametek MNG DIV. Pressure Gauge on a 1”pad flange. The lower 48” jacketed portion has three-2” threaded couplings. Below the jacket is six--1” sanitary threaded. The bottom has one--2” pad flange with blind, one-½” valve with fittings, one-1” valve with fittings, one-2” valve with fittings, and 3 lift lugs.Built 1982. Sits on four carbon steel legs. Overall Size is 132” x 80”.

Agitator: top center
Capacity: 3000 liter

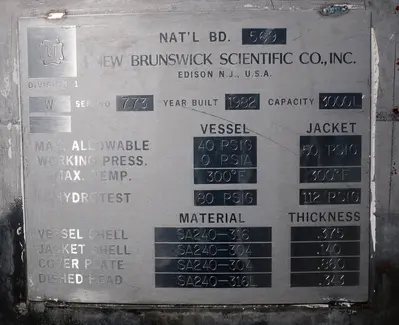

National Board No.: 569
Psi Internal: 40 psig
Psi Jacket: 35 psig
Temperature: 300F
