SPC8134 Reactor 500 liter capacity New Brunswick scientific Co. bioreactor 40 psi internal, 35 psi jacket, top center agitator, 316 SS
Overview
Description

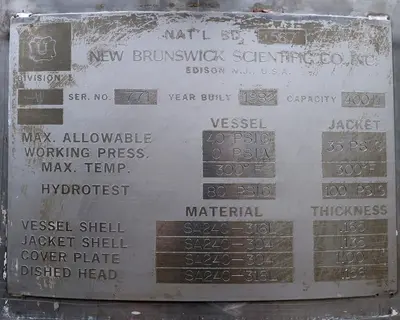

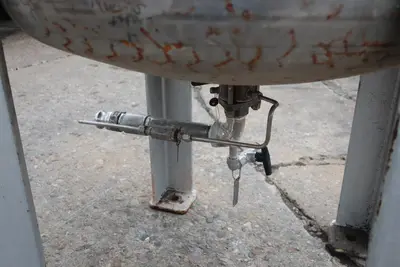

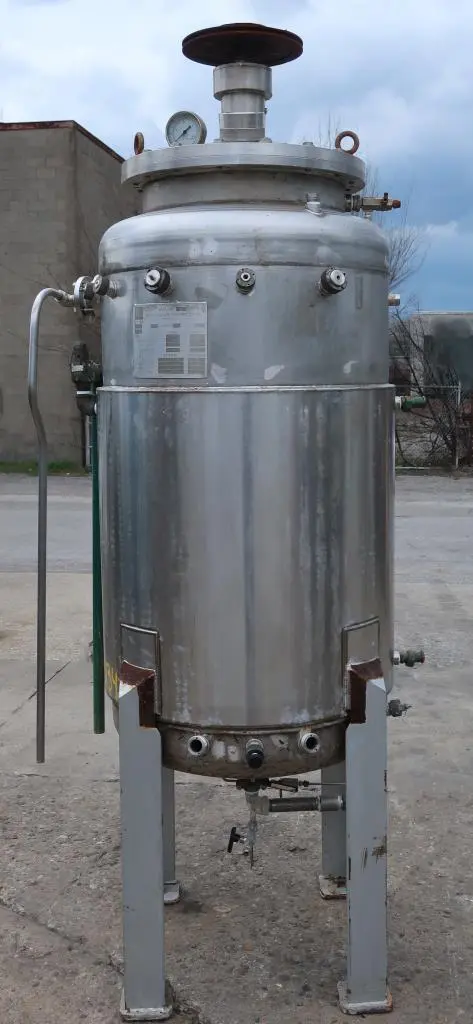

Used 500 liter (132 gallon) New Brunswick Scientific Co. Chemical Reactor. 304 SS jacket and 316L SS construction. National Board # 567. Has 28" diameter, 44" straight sidewith jacket on the lower 31". Unit's vessel max allowable pressure 40 PSIG and max temperature is 300 F. Unit's Jacket max allowable pressure 35 PSIG and max temperature 300F. Hydrotest pressure is rated 80 PSIG on vessel and 100 PSIG on jacket. Top has n 18”RFSO with blind flange with a 1” agitator shaft(no motor included) , one 2- ¼” threaded sanitary fitting, one 1-¾” sightglass, one- 3/8” plug, one ¼” plug, one- ¾” plug and a Ametek MNG DIV. Pressure Gauge. The neck has one- ¾” threaded coupling, one- 1” threaded coupling, and two- ¼” couplings with plugs. The top portion has two- 2” 150lb. Pad flanges, one -1” 150lb. Pad flange, five- 1” couplings with fittings and two- 1” sanitary threaded couplings. The jacketed portion has two- 1” threaded couplings and one- ¾” threaded coupling. Below the jacket is three- 1” couplings with fittings, two- 1’ sanitary fittings, and one- ¾” sanitary fitting. The bottom has one- 1” center drain valve, one- 2” 150lb. Pad flange, one- 1” threaded coupling and one- ¾” threaded coupling.. Unit Stand on (4) 30" steel legs. Overall dimensions: 32" x33" x 82" h.
Specifications
Agitator: top center
Capacity: 500 liter
National Board No.: 567
Psi Internal: 40
Psi Jacket: 35
