SPC8133 Reactor 500 liter capacity New Brunswick Scientific Co. bioreactor 40 psi internal, 35 psi jacket, stop center agitator, 304 SS

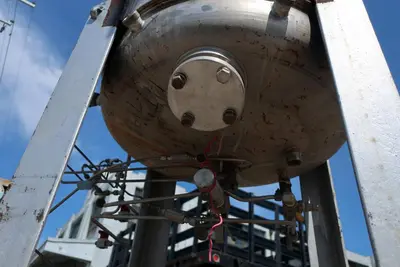

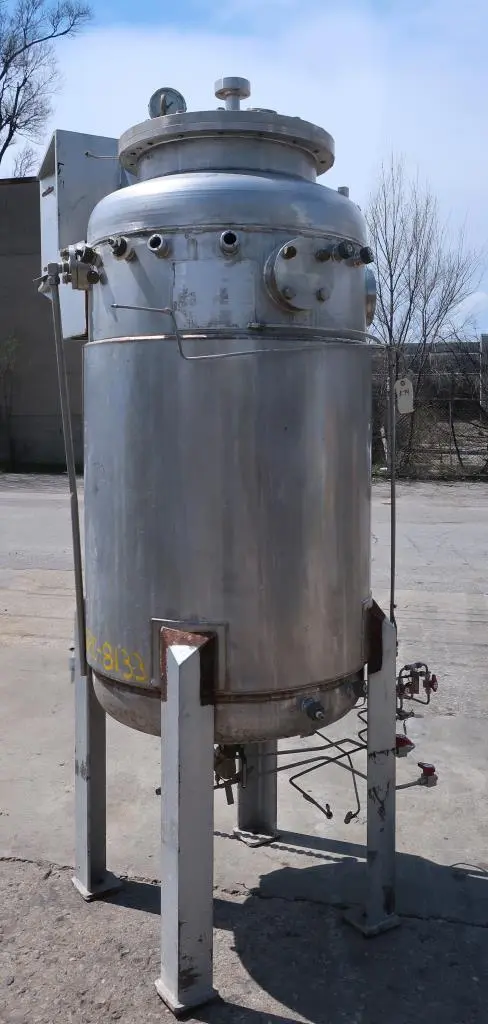

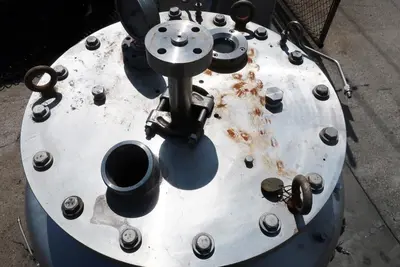

New Brunswick Scientific Co. 500L(132 gallon) capacity Stainless Steel Tank. National Board #566. Diameter is 28” with a 40” straight side with jacket on the lower 31". Vessel- Max Allowable Working Pressure 40PSIG/O PSIA. Jacket-Max Allowable Working Pressure 35 PSIG. Vessel- Max Temp. 300°F. Jacket- Max Temp. 300°F. Vessel- Hydrotest 80 PSIG. Jacket- Hydrotest 100 PSIG. The top has an 18”RFSO with blind flange with a 1” agitator shaft(no motor included) , one 2- ¼” threaded sanitary fitting, one 1-¾” sightglass, one- 3/8” plug, one ¼” plug, one- ¾” plug and a Ametek MNG DIV. Pressure Gauge. The neck has one- ¾” threaded coupling, one- 1” threaded coupling, and two- ¼” couplings with plugs. The top portion has two- 2” 150lb. Pad flanges, one -1” 150lb. Pad flange, five- 1” couplings with fittings and two- 1” sanitary threaded couplings. The jacketed portion has two- 1” threaded couplings and one- ¾” threaded coupling. Below the jacket is three- 1” couplings with fittings, two- 1’ sanitary fittings, and one- ¾” sanitary fitting. The bottom has one- 1” center drain valve, one- 2” 150lb. Pad flange, one- 1” threaded coupling and one- ¾” threaded coupling. The unit sits on four carbon steel legs and has an agitator bracket. Built 1982. Sits on four carbon steel legs. Overall Size is 84” x 52”.

Agitator: stop center
Capacity: 500 liter

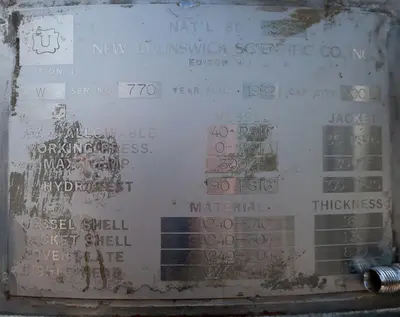

National Board No.: 566
Psi Internal: 40
Psi Jacket: 35
