SPC9010 Reactor 250 gallon capacity Precision Stainless, Inc bioreactor 45 PSIG @ 350 degrees F psi internal, 75 PSIG @ 350 degrees F psi jacket, 316 SS

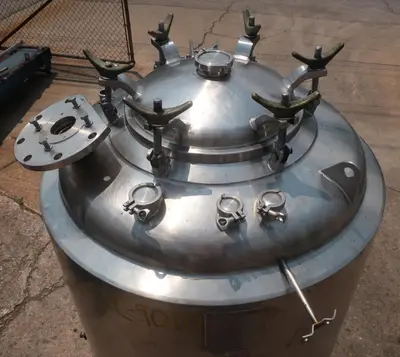

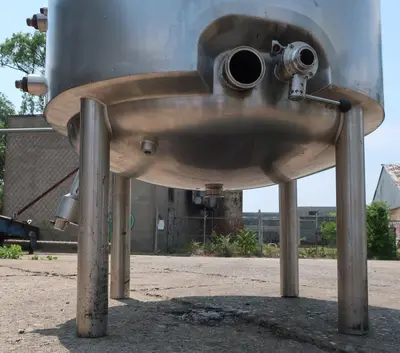

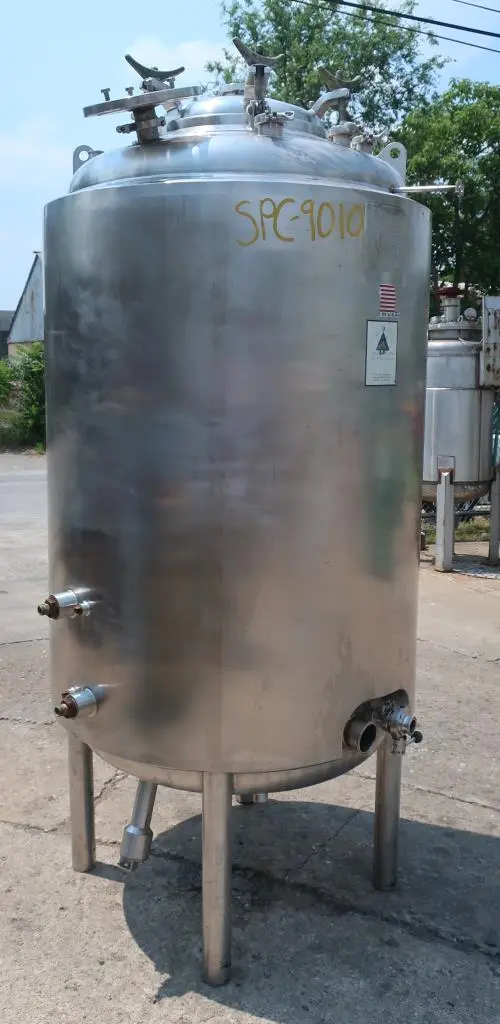

250 gallon Precision Stainless Inc 316L reactor body with 304L side jacket. Dished top and bottom. Vessel is 36" diameter x 58" SS. Vessel on four legs. The vessel is rated for up to 45 PSIG @ 350 degrees F & 29.92" Hg Vacuum and the jacket is rated for up to 75 PSIG @ 350 degrees F. Mfg. National Board number 1907. Serial number 7869-4. Jacket nozzles two 2" threaded couplings and two 3/4" threaded coupling. Side nozzles are one 3" tri clamp and one 1-1/2" tri clamp with valve. Bottom has 2" Tank Mate for level monitoring, one 1-1/2" tri clamp, and one 1/2" coupling. Top nozzles are one 18" hinged manway with 3" blinded triclamp nozzle on the lid, one 2" tri clamp nozzle with modified flange attachment, one 2" blinded tri clamp and four - 1-1/2" tri clamp with three with blinds. 90" OAH.

Capacity: 250 gallon

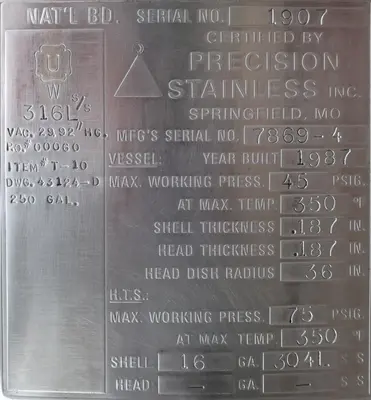

National Board No.: 1907
Psi Internal: 45 PSIG @ 350 degrees F
Psi Jacket: 75 PSIG @ 350 degrees F
