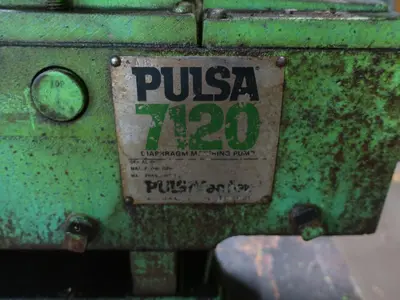

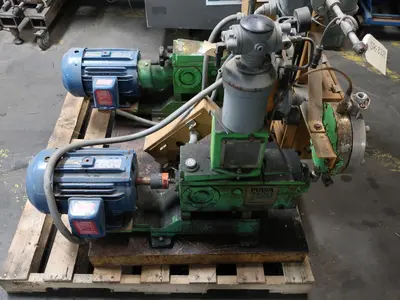

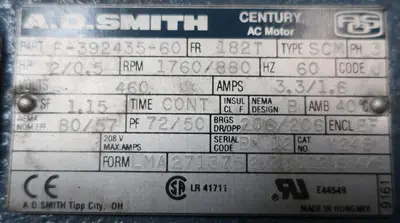

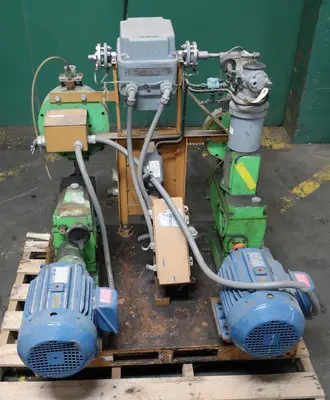

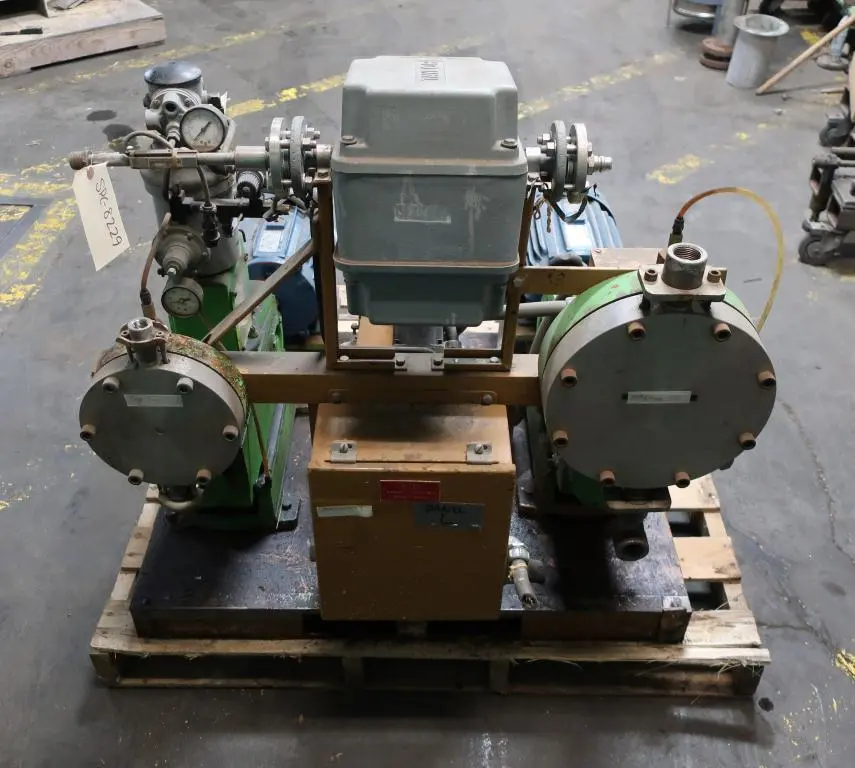

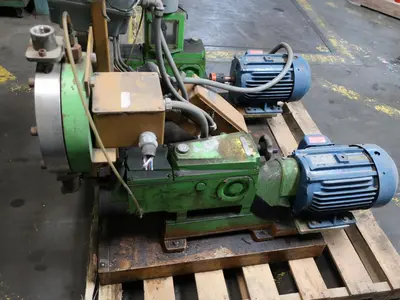

Used diaphragm metering pump feed system. Unit has two Pulsa 7120 diaphragm metering pumps. Unit has a Taylor electromagnetic flow meter. Flow meter has 275 psi @ 104F max allowable working pressure and requires 120 Vac electrical power. Unit comes with (2) Pulsa 7120 diaphragm metering pumps, both have 3/4"' inlet. One pump has 47.52 gallon per hour max flow rate and up to 165 PSIG max pressure, and the other has 14.35 gallon per hour and up to 350 PSIG max pressure. Each of them is driven by a 2 hp motor, requiring 460 vac 3 ph electrical power. One pump is connected to a Iti conoflow pressure transducer. Both pumps are connected to a 11" and 8" purge pumps. Unit has a control panel. Unit comes with a Fairchild T200 electrical to pneumatic transducer. Unit overall dimensions: 45"w x44"l x43 ".
Drive (Hp): (2) 2hp
Inlet: (2) 3/4"
Size: 3/4"
