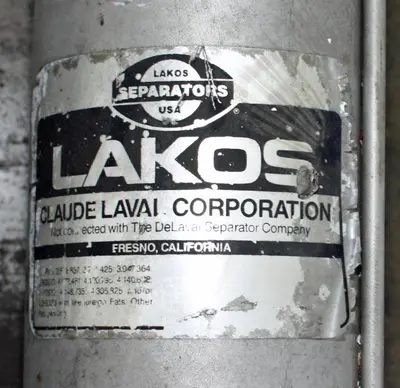

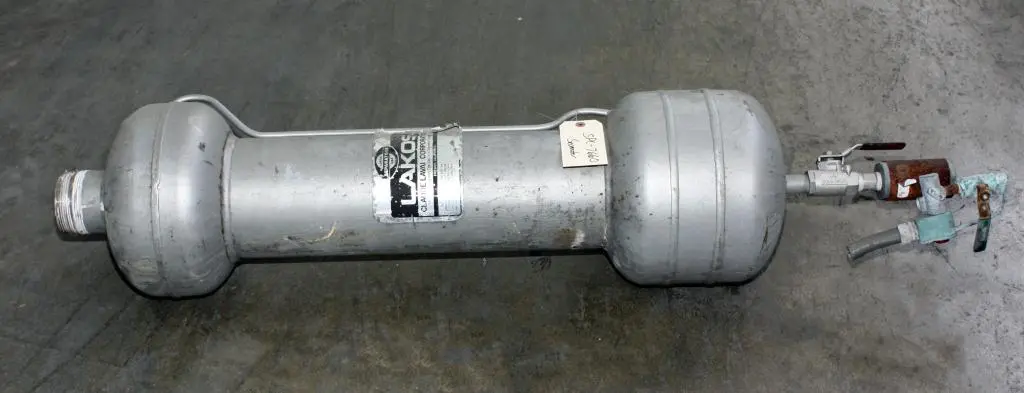

USED LAKOS ILS-0300 316SS

Lakos Separator ILS-0300 316SS Non-Code In-line separator, stainless steel, 3” NPT Inlet/Outlet, ¾” NPT 148-290USGPM, Purge Male. Equipped with purge valve. Lakos Separator is used for low-flow applications in a wide range of applications all over the world. Ideally suited for small, side-stream installations, the ILS separators are popular for removing up to 98% of sand, grit and other fine solids down to just 74 microns. The Flow range varies from 3 to 290 U.S. gpm (.7 to 66 m³/hr.). Maximum standard pressure rating is up to 150 psi. The pressure Loss Range varies from 5 to 12 psi (0.3 to 0.8 bars). Collection chamber capacity is up to 2.2 U.S. (8.33 liters). The weight of an ILS Separator is 101 lbs. and 177 lbs. with water. The unit appears to be in good condition.

Size: 3" inlet
Speed: Flow Range: 3 - 290 U.S. gpm (.7 - 66 m³/hr)
Special Comment: Maximum Pressure: 150 psi (10.3 bar)
