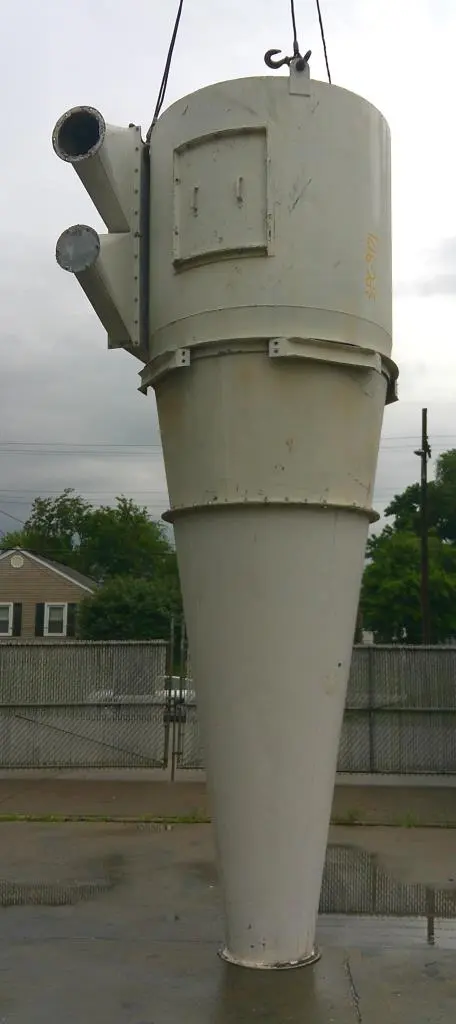

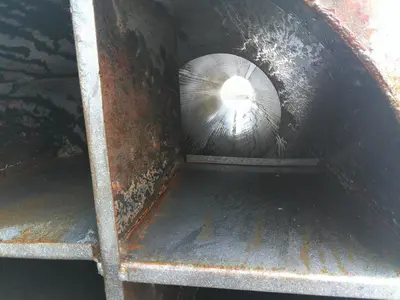

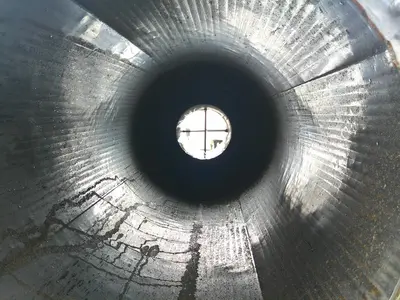

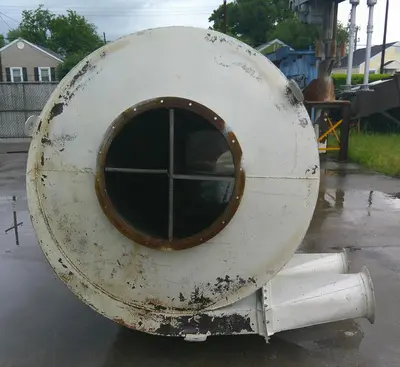

Carbon steel cyclone dust collector. 58" in diameterwith a 52" straight side to a 135" cone to 18" flanged outlet. It is 191" overall height. The exhaust is a 26" flanged nozzle divided into four sections the cylinder goes 58" into the dust collector chamber. The side inlets are one 10" in diameter and flanged and 8" diameter and flanged . Top section has a side rectangular removable access door 22" x 26". Top has three lift lugs.
Diameter: 58"
Straight Side Height: 98"
Cone Height: 100"
