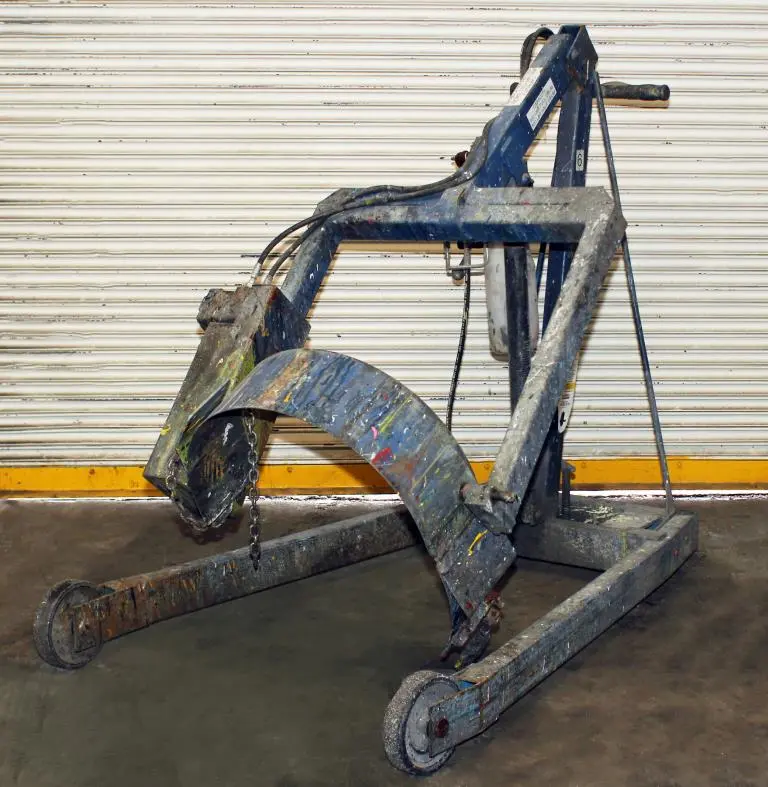

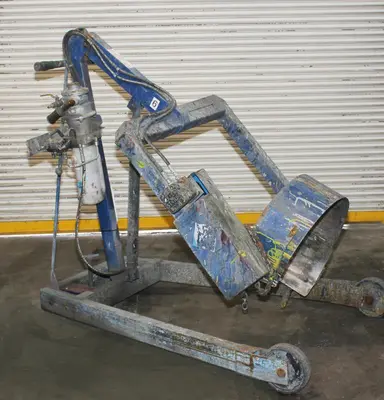

USED MORSE 400AM-72-114

Used Morse Drum Dumper Hydra-Lift, 72”, carbon steel. The Model 400AM-72-114 Hydra-Lift Karrier will pour a drum up to 72” high, measured from the floor to the lowest point of a horizontal drum. It is designed to lift, transport, and dispense a 55-gallon steel or fiber drum 22” to 23.5” in diameter. The maximum full-drum capacity is 800 Lb. The capacity is derated to 500 Lb. for a half-full drum. The half-full rating is based on the tilt mechanism’s capacity for handling an unbalanced bottom-heavy drum. Overall 47" x 70" x 56".

Lbs.: 800
Power Required: pneumatic
Size: 72"
