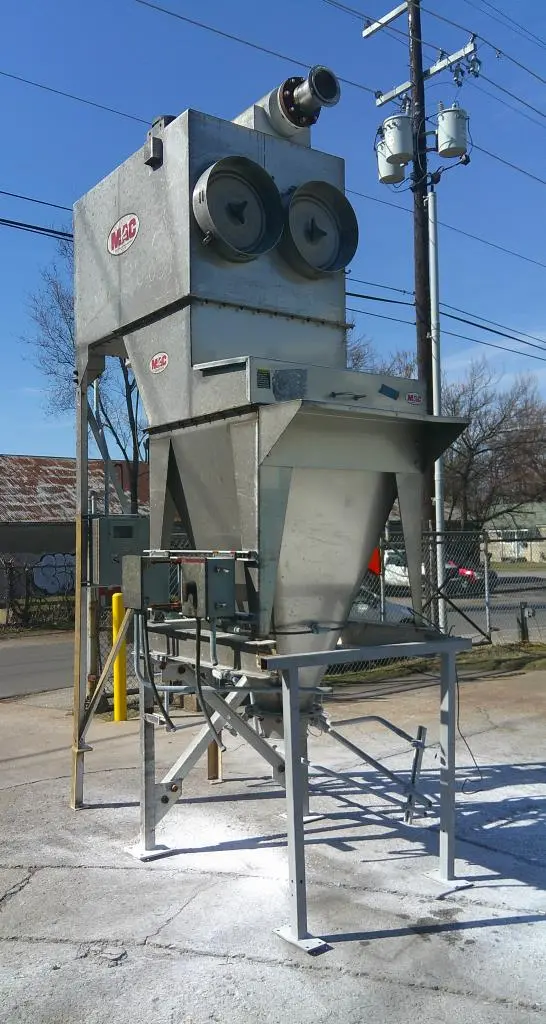

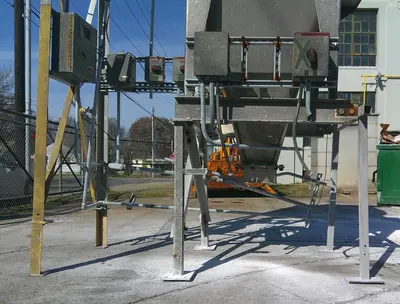

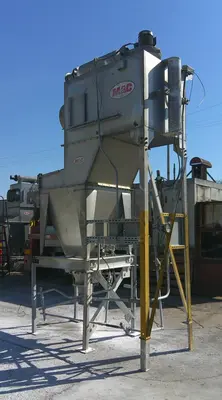

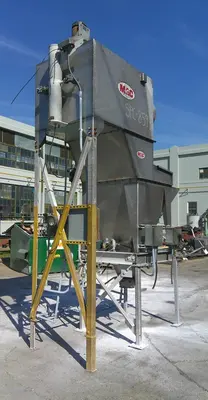

MAC Equipment stainless steel custom bag dump station and dust collector has 2 dust collector cartridges with about 295 sq ft. of filter media in each. It has a hinged door with a 21” x 40” grated opening and a 12” x 40” work station. Cincinnati Fan model PB-10A powered by a 2 hp, 3450 rpm Baldor motor that requires 460 vac, 3 ph electricity. The overall dimensions are about 52” w x 100” l x 168” h. The discharge port has an 8.5” diameter. Serial no. 28415-015-1
Power Required: 460 vac, 3 ph
Serial No.: 28415-015-1
