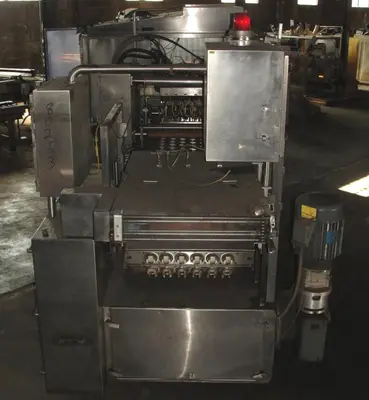

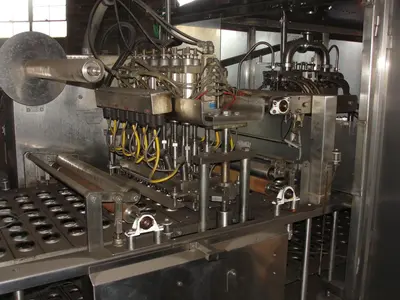

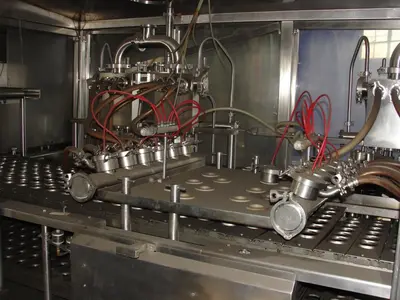

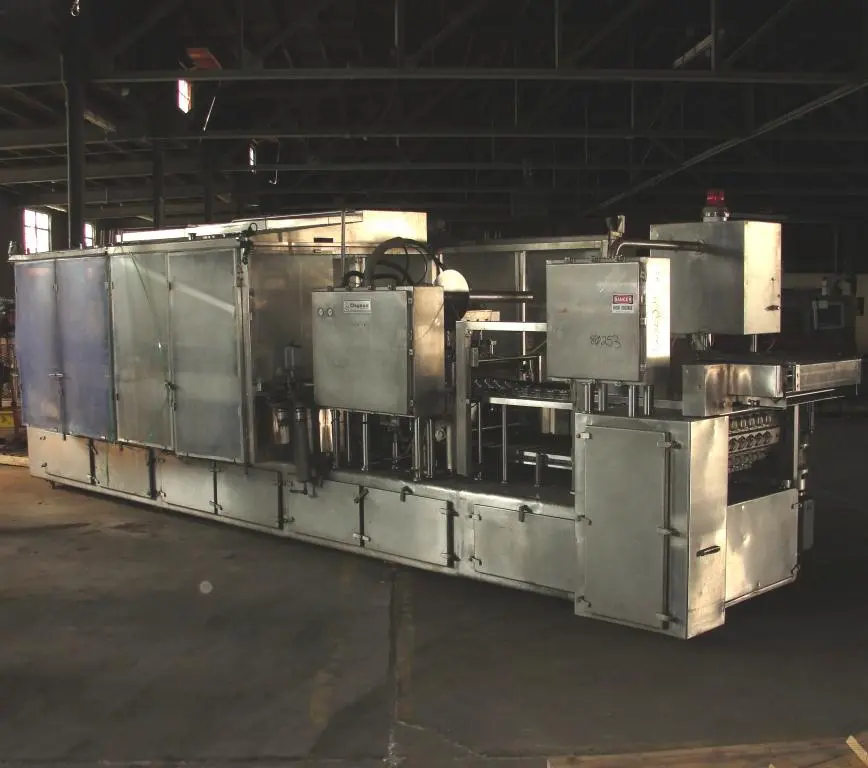

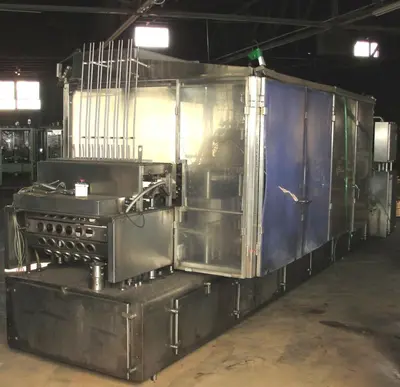

Osgood Industries Inc 6 lane inline continuous motion atmospheric cup filler and induction sealer. Model 6100. Stainless steel contact parts. Two piston type filling heads per lane for two part fills such as particulate and juice. Filling heads move on the carriage. The filler’s cup dispenser is currently set for 4 oz fill. The diameter of the container is 2.5" cup size. Set up for roll stock metalized seal film. Cup filler has a rate at an estimated 350 cups per minute. Filler has a Machine #82-189. Requires 480 vac 3 phase electrical source. The bare machine is approximately 24'7" long x 7' wide x 7'9" high.
Filling Heads: 12
Power Req. (V): 480 vac 3 ph
Speed: up to 350 cpm
Lane: 6
