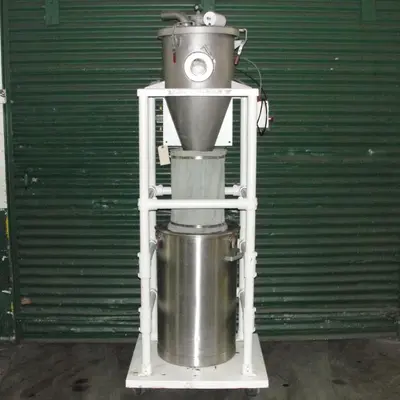

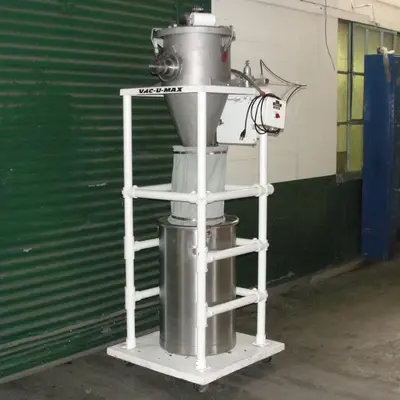

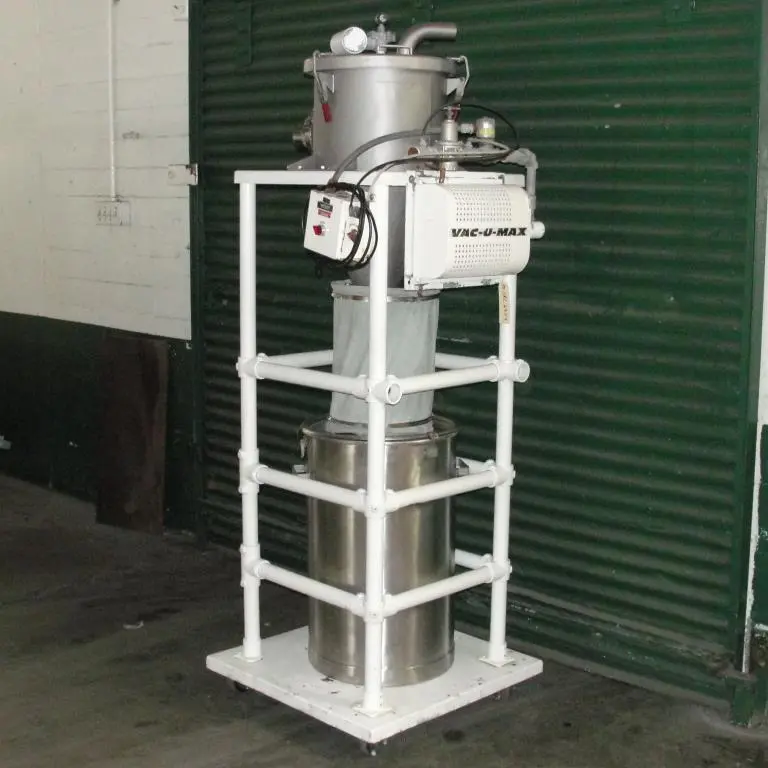

Vac-U-Max portable pneumatic conveyor receiver unit. The receiver unit consists of a stainless steel cyclone dust collector receiver, a stainless steel collection tank, and a carbon steel stand with casters. The estimated 3 cu ft stainless steel receiver has a 3" inlet, 15.5" diameter open top, a 13" cone, a 2" air discharge, and a 5.5" diameter solids discharge. The 26 gallon stainless steel collection tank has a 16" diameter and a 30" straight side height. The overall dimensions are 30" wide x 30" long x 85" tall.
Capacity: 26 gallons
