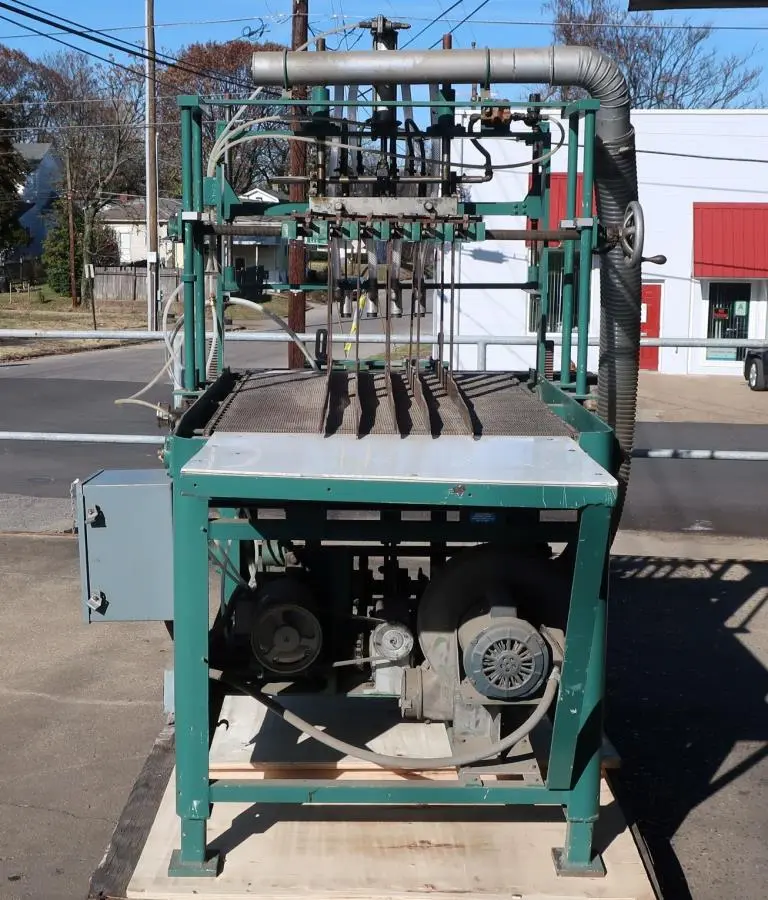

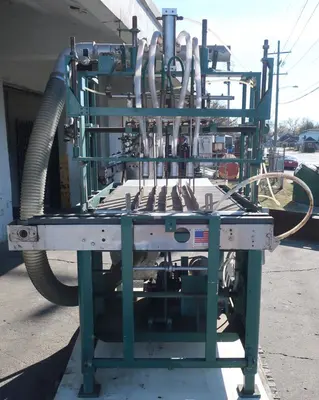

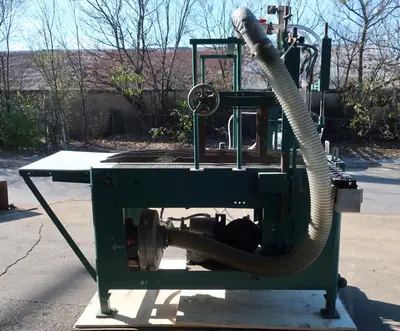

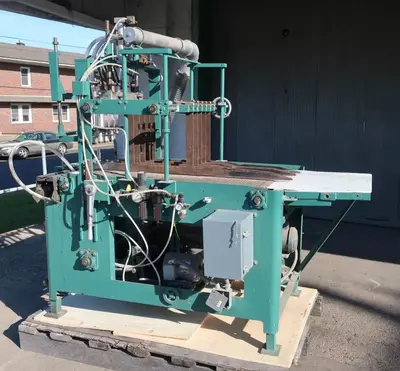

SPC9222 Can and Bottle Cleaning Machine air type bottle cleaner model 4 lane feeder/laner with inverted air rinser NA

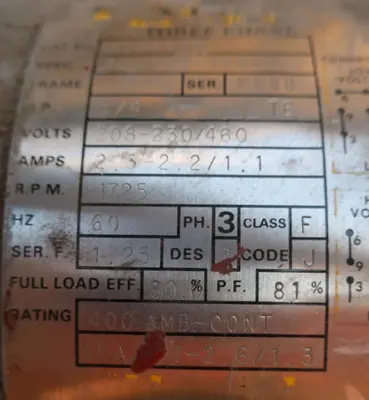

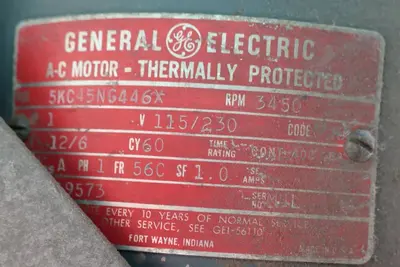

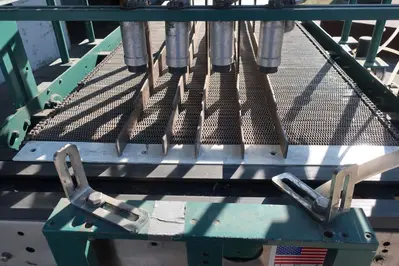

4 lane feeder/laner with inverted air rinser can have up to 4 adjustable lanes of product feed single file onto a perpendicular conveyor line measuring 4.5" wide. The interlocking chain belt is 30" w x 50" l with a 29.5" w x 22" l loading surface that measures 37.5" from the ground. The interlocking chain belt is driven by a 0.75 hp, 1725 rpm motor that requires 208-230/460 vac, 3 ph electricity. The inverted air rinser is powered by a Cincinnati Fan model PB-10 blower (up to 800 cfm) with a 1 hp, 3450 rpm motor that requires 115/230 vac, 1 ph electricity. Maximum container height is about 7". Overall dimensions are approximately 56" w x 81" l x 78" h.
