USED APPLICATION ENGINEERING TDV-1C

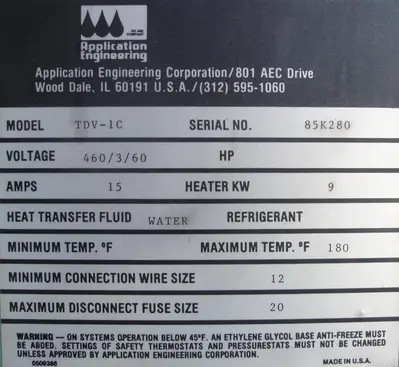

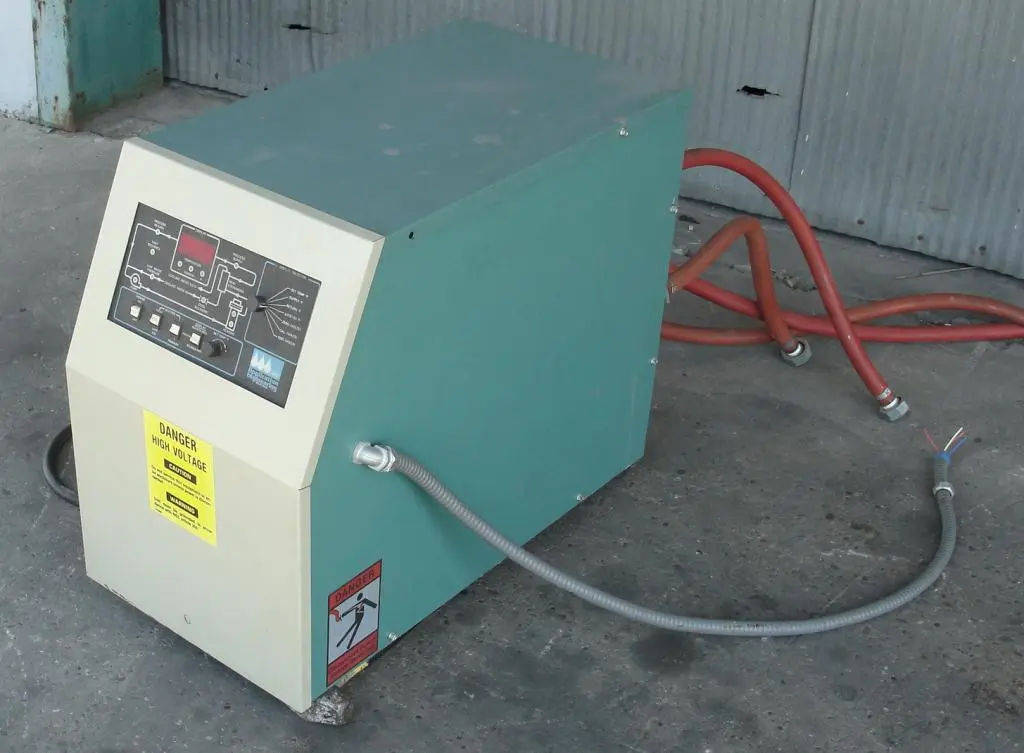

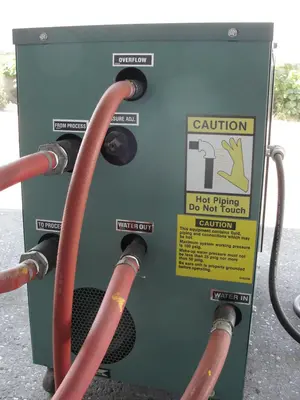

9 KW AEC model TDV-1C temperature control unit. The TDV is capable of operating up to 180° F, while continuously pulling a vacuum through a given mold. A pressure switch in the cooling water line will turn the unit off if the incoming pressure is not sufficient to guarantee proper cooling. The unit heats with a two circuit calrod type electric immersion heater. The unit cools by allowing a small amount of hot water out of the system through a solenoid valve then opening another solenoid valve of cold water (outside source). This unit is capable of 50 GPM @ 26 psi (pump curve available). Serial number 85K280. Unit is on casters. Requires 460 vac 3 phase 15 amp electrical supply. Manual is on file. Good condition.
