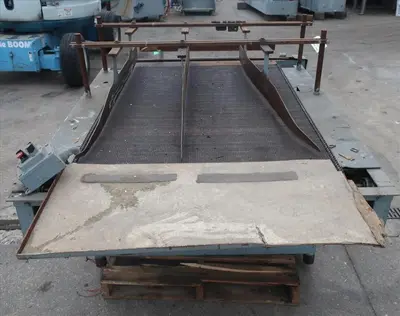

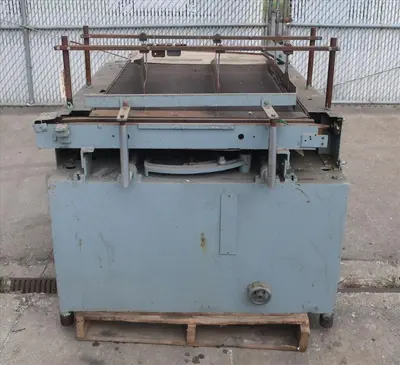

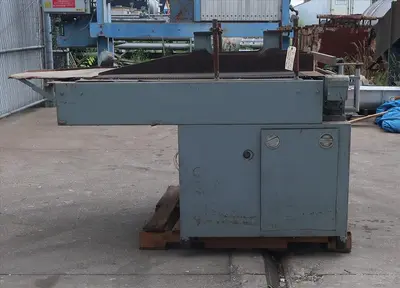

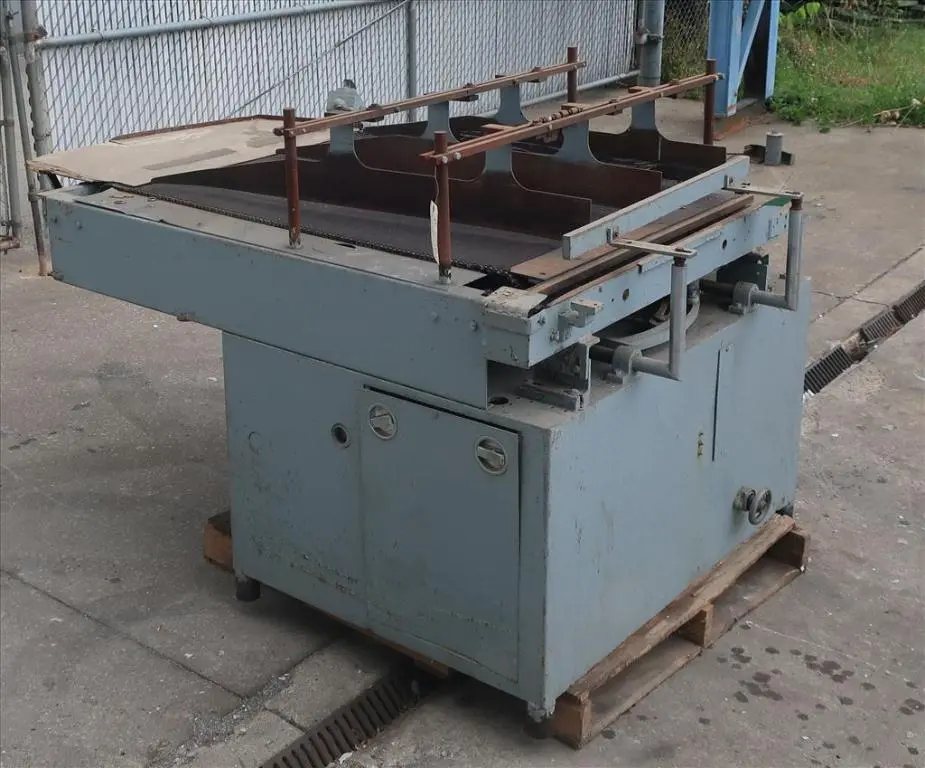

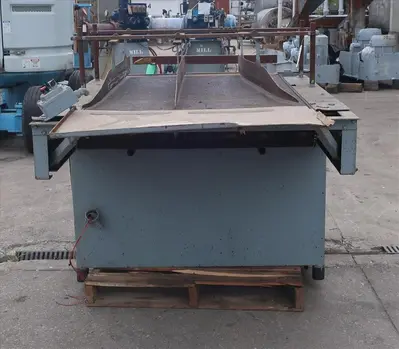

2 lane feeder/laner is designed for an operator to load empty bottles into a bottling line. It can have up to 2 lanes of product feeding onto a perpendicular conveyor track measuring 3.5" wide. The laner's interlocking chain belt is 30" w x 44" l with a 32" w x 12" l loading surface that measures 35" from the ground. Overall dimensions are approximately 45" w x 68" l x 48" h. The maximum container height for this laner is 12.5". Unit is equipped with a 0.5 hp, motor that requires 220/440 vac, 3 ph electricity.
Power Req. (V): 220/440 vac, 3 ph
Serial No.: 261
Size: 30" x 44"
