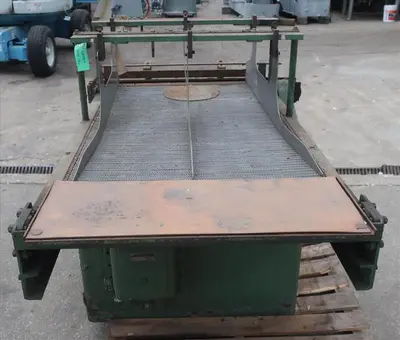

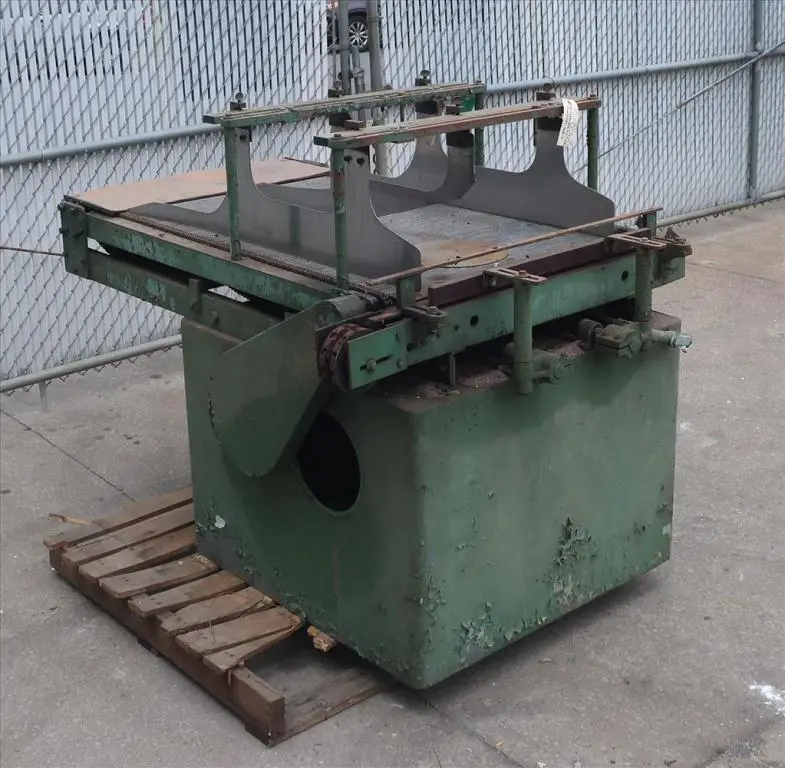

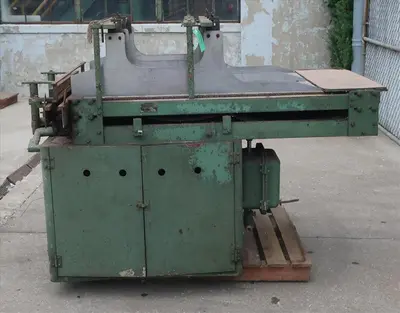

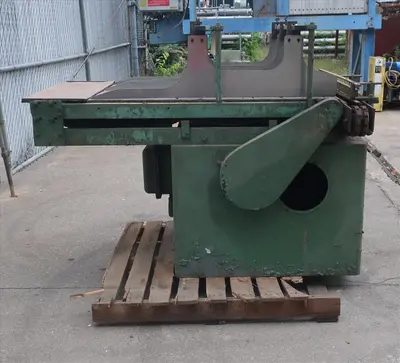

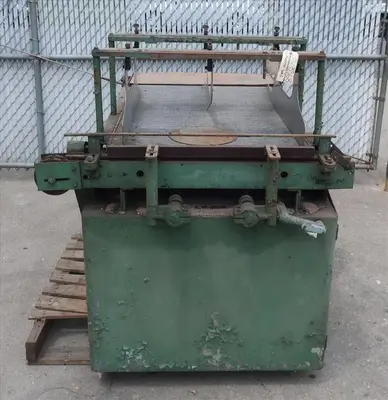

Machinery Service Co. 2 lane feeder/laner is designed for an operator to load empty bottles into a bottling line. It can have up to 2 lanes of product feeding onto a perpendicular conveyor track measuring 3" wide. The laner's interlocking chain belt is 36" w x 46" l with a 36" w x 18" l loading surface that measures 39" from the ground. Overall dimensions are approximately 52" w x 78" l x 52" h. The maximum container height for this laner is 9.5". Unit is equipped with a 0.75 hp, 1720 rpm motor that requires 230/460 vac, 3 ph electricity. Serial no. 261
Power Req. (V): 230/460 vac, 3 ph
Serial No.: 261
Size: 36" x 46"
