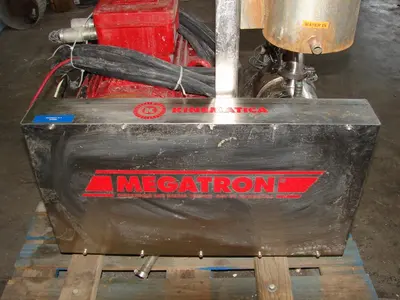

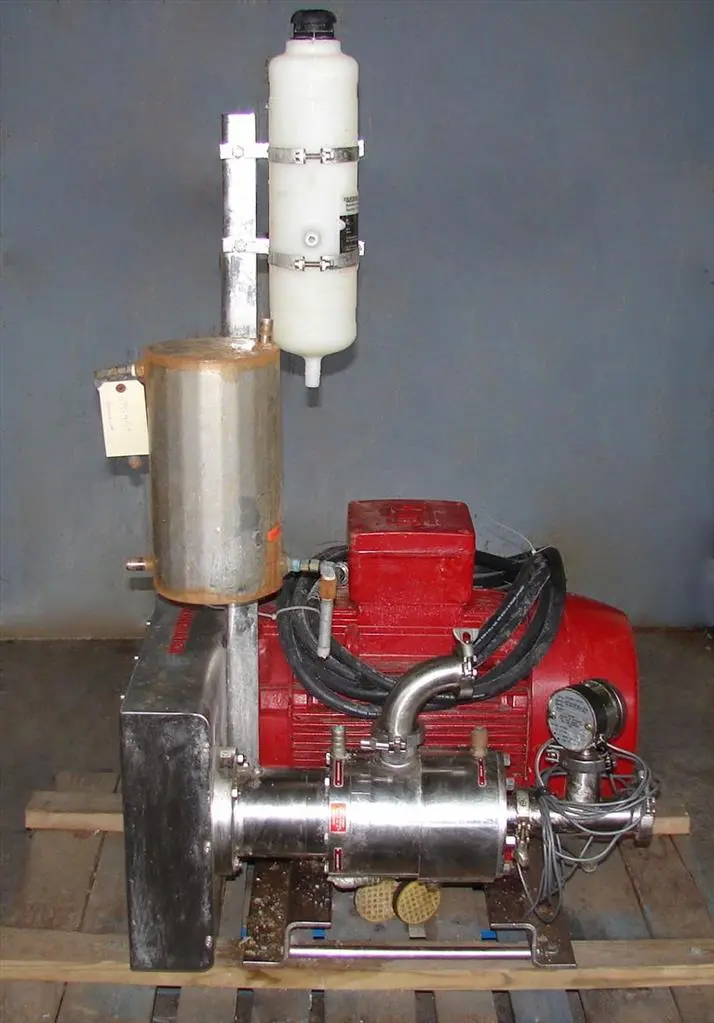

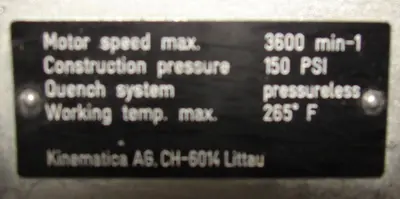

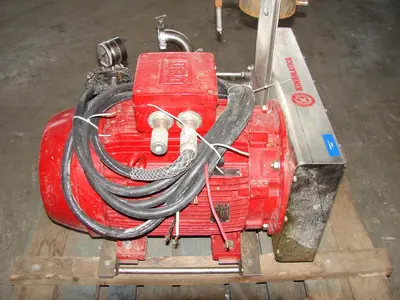

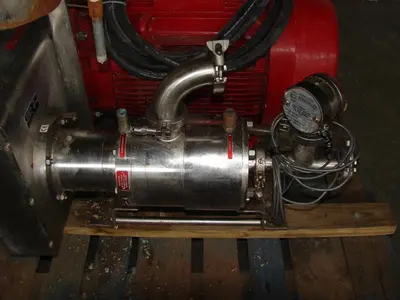

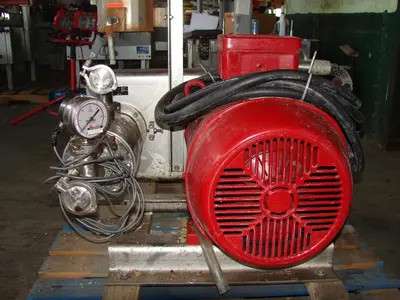

Kinematica Megatron model MT3-95-3A in-line homogenizer. Type 316L stainless steel construction. Disperses and emulsifies via a rotor/stator shear generator. Operates at 3600 rpm driven by a 3540 rpm 50 hp motor. Homogenizing generator is equipped with a single mechanical seal and a cooling jacket. Internal operating pressure is 150 psi at 245 F. Flow rate up to 50 gpm (water) depending on product. Requires 440 vac 3 ph electrical power. Assembled on a stainless steel frame with adjustable feet. New 2000. Serial number R95579. Good condition.
Gal./Hr. Flow Rate: up to 50 gpm
Hp: 50
Psi: 3 barr
Stage: 3
