USED SONIC CORP/MOYNO XS-1500

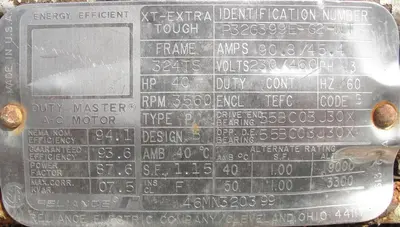

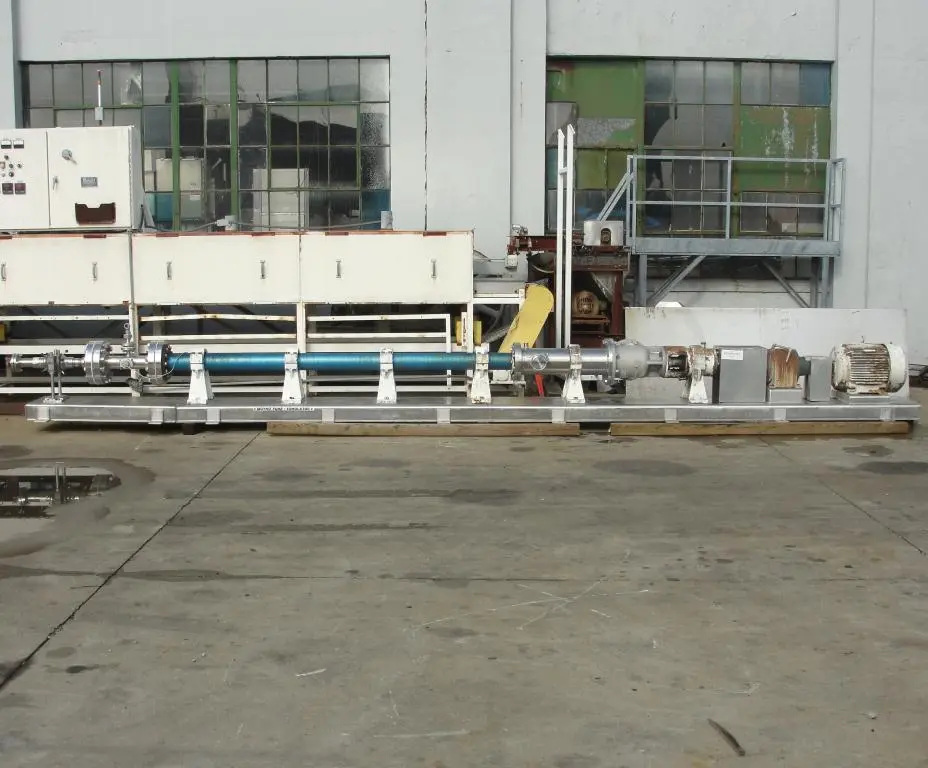

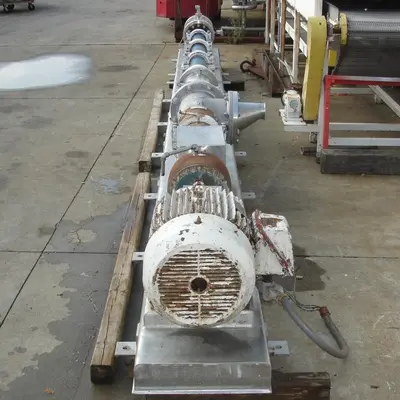

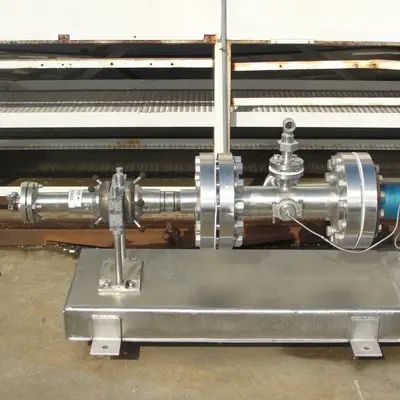

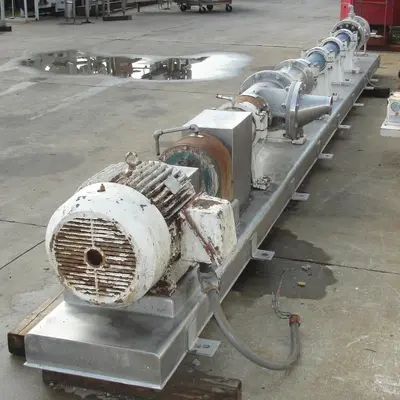

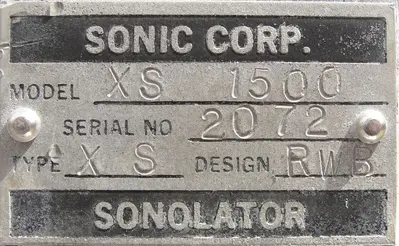

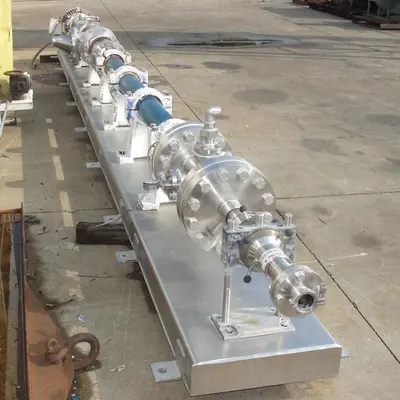

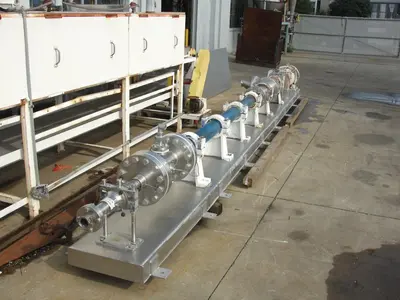

Sonic Corp. Sonolator model XS-1500 inline high pressure homogenizer with a Moyno model 9P8-SSE-X 8" progressive cavity pump. The Sonolator is an in-line homogenizing device that uses high pressure and ultrasonic cavitational energy to create emulsions. The positive displacement pump has a 4" sanitary tri-clamp fitting that connects to an 8" flanged inlet and the Sonolator has a 2" sanitary tri-clamp outlet. The pump has up to an estimated 20 gpm and a 600 psi discharge pressure. Driven by a 40 hp 3560 rpm motor that has a 6.2:1 reducer. Overall dimensions are 30" wide x 200" long x 32" tall. Requires 230/460 vac 3 phase electrical supply. Fair condition.

Hp: 40
Inlet: 8"
