SPC7691 Transformers and Switchgear 93 kva Federal Pacific Transformers Company dry transformer, 2400 high voltage, 460 Y/ 266 low voltage, 3 phase
Overview
Description

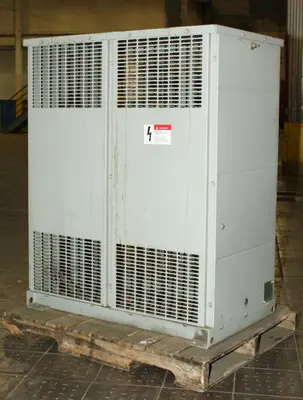

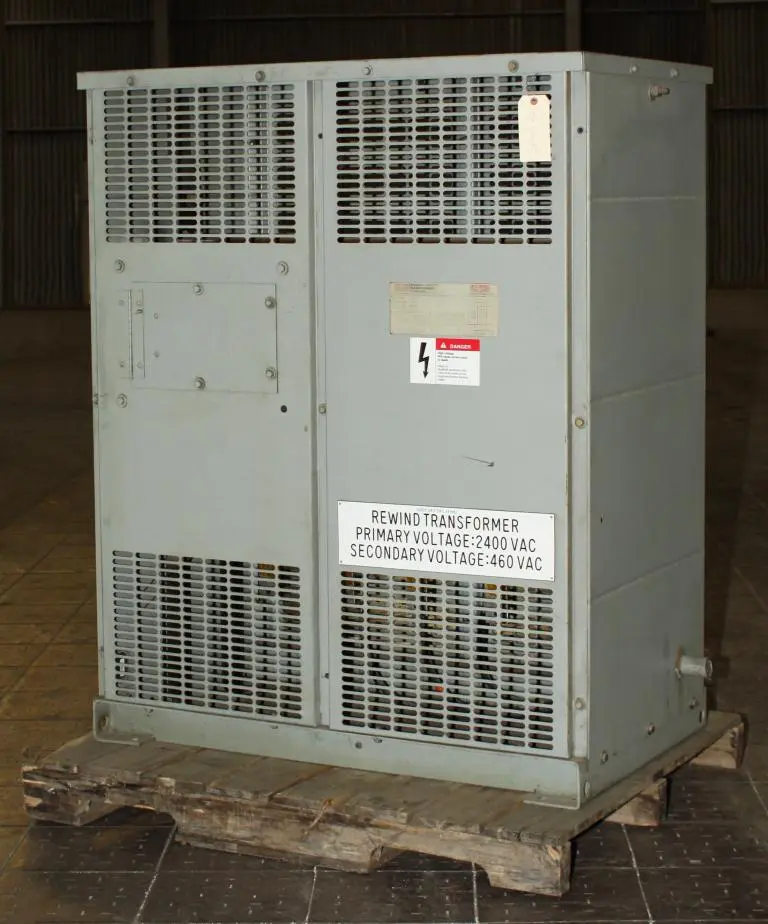

Federal Pacific Transformer Company, High Voltage General purpose Transformer. Dry-type Transformer with 93 KVA, 60 Hz frequency, and 3 phase. The transformer has a high voltage of 2400 V and a low voltage of 460Y/266. The impedance is 4.53 %. 117 Amps of Low Voltage Amps. The temperature rise is up to 150° C (302 ° F). The insulation level is 30 KV BIL for the high Voltage and 10 KV BIL for the low Voltage. HV and LV conductor Aluminum. The enclosure of type 1. Manufacture date: 11/95. 220 ° C Insulation System.
Connections Table
Volts Amps Connect
2520 21.3 2 TO 3
2460 21.8 3 TO 4
2400 22.4 4 TO 5
2340 22.9 5 TO 6
2280 23.5 6 TO 7
C&C Weight 735 lbs. Total weight of the Unit is 1050lbs. The Unit has 27 ½ ‘’ x 44 ½ ‘’ and 55 ½ ‘’ overall height. The serial number is 51080.
Specifications
Kva: 93
Phase: 3
High Voltage: 2400
Low Voltage: 460 Y/ 266
Impedance: 4.53
Special Comment: Temparature Rise 150 ° C
