Overview
Type:
Transformers
Manufacturer:
FEDERAL PACIFIC TRANSFORMER COMPANY
Model:
HIGH VOLTAGE GENERAL PURPOSE
Stock #:
SPC-7692
Description

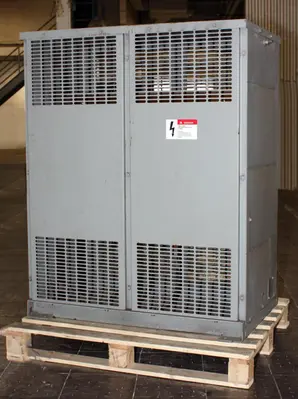

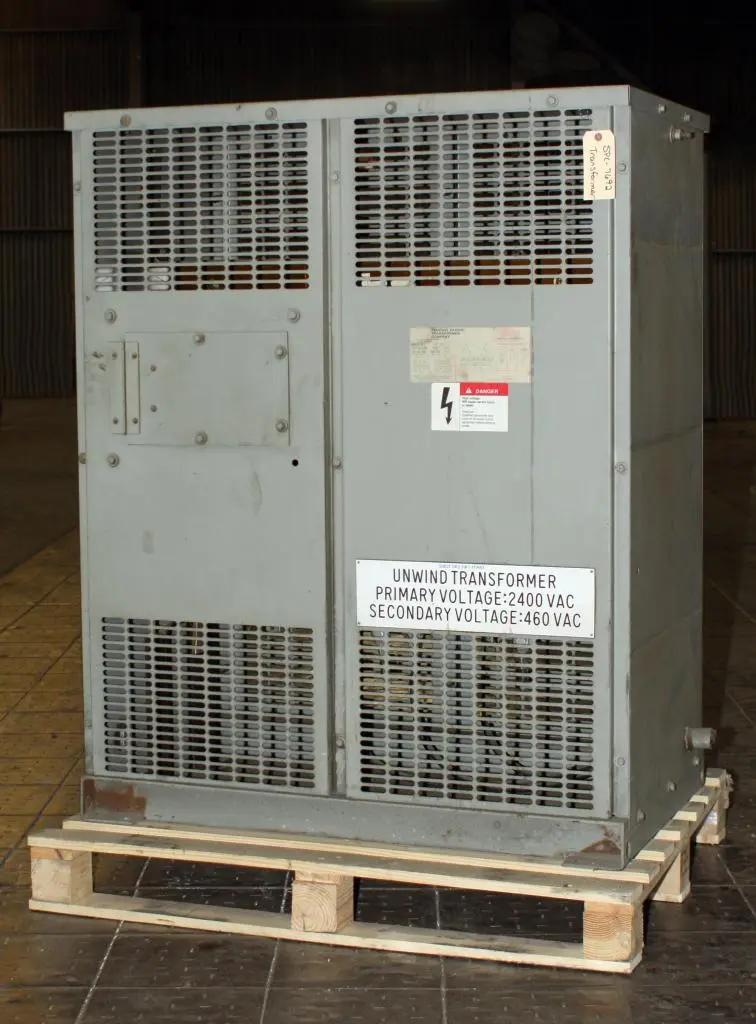

Federal Pacific Transformer Company, High Voltage General purpose Transformer. Dry-type Transformer is 118 KVA, 60 Hz, and 3 phase. The transformer has a high voltage of 2400 V and a low voltage of 460Y/266. The impedance is 5.41%. 148 Amps of Low Voltage Amps. The temperature rise is up to 150° C (302 ° F). The insulation level is 30 KV BIL for the high Voltage and 10 KV BIL for the low Voltage. HV and LV conductor Aluminum. The enclosure of type 1. Manufacture date: 11/95. 220 ° C Insulation System.

Connections Table
Volts Amps Connect
2520 21.3 2 TO 3
2460 21.8 3 TO 4
2400 22.4 4 TO 5
2340 22.9 5 TO 6
2280 23.5 6 TO 7

C&C Weight 895 lbs. Total weight of the Unit is 1175 lbs. The Unit has 27 ½ ‘’ x 44 ½ ‘’ and 55 ½ ‘’ overall height. The serial number is 51081.

Specifications

Kva: 118
Phase: 3
High Voltage: 2400
Low Voltage: 460 Y/ 266
Special Comment: Temperature Rise 150° C
