USED FEDERAL PACIFIC TRANSFORMER COMPANY HIGH VOLTAGE GENERAL PURPOSE
Overview
Description

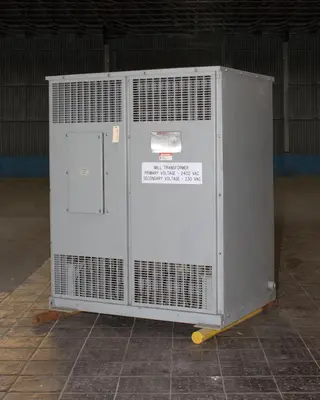

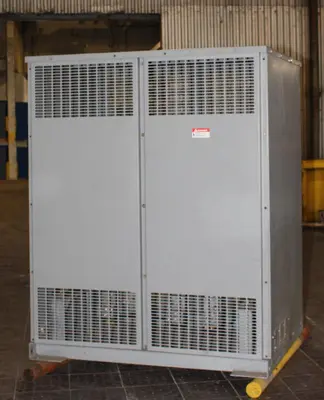

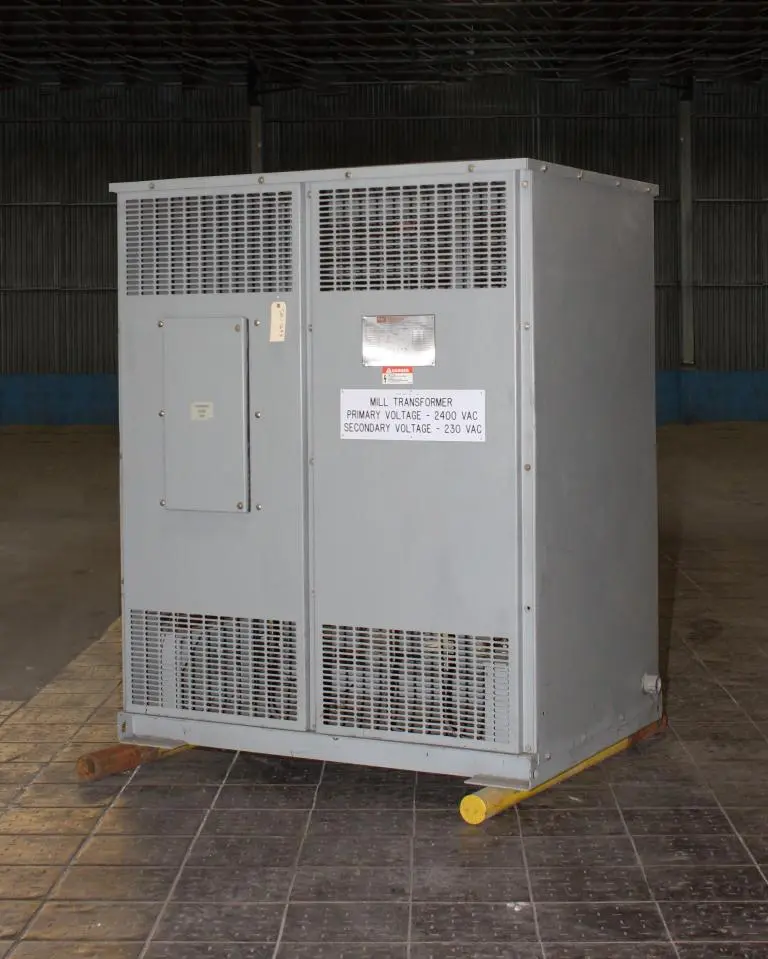

Federal Pacific Transformer Company, High Voltage General purpose Transformer. Dry-type Transformer with 550 KVA, 60 Hz frequency, and 3 phase. The transformer has a high voltage of 2400 V and a low voltage of 230Y/133. The impedance is 5.12%. 148 Amps of Low Voltage Amps. The temperature rise is up to 150° C (302 ° F). The insulation level is 30 KV BIL for the high Voltage and 10 KV BIL for the low Voltage. HV and LV conductor Aluminum. The enclosure of type 1. Class AA. Manufacture date: 11/95. 220 ° C Insulation System.

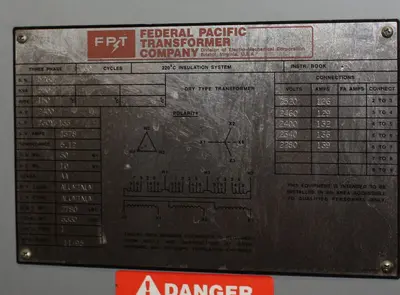

Connections Table
Volts Amps Connect
2520 126 2 TO 3
2460 129 3 TO 4
2400 132 4 TO 5
2340 136 5 TO 6
2280 139 6 TO 7
C&C Weight 2780 lbs. Total weight of the Unit is 3330 lbs. The Unit has 44‘’ x 55 ‘’ and 72 ‘’ overall height. The serial number is 52637.
Specifications
Kva: 550
Phase: 3
High Voltage: 2400 V
Low Voltage: 230 Y/133 V
Impedance: 5.12 %
