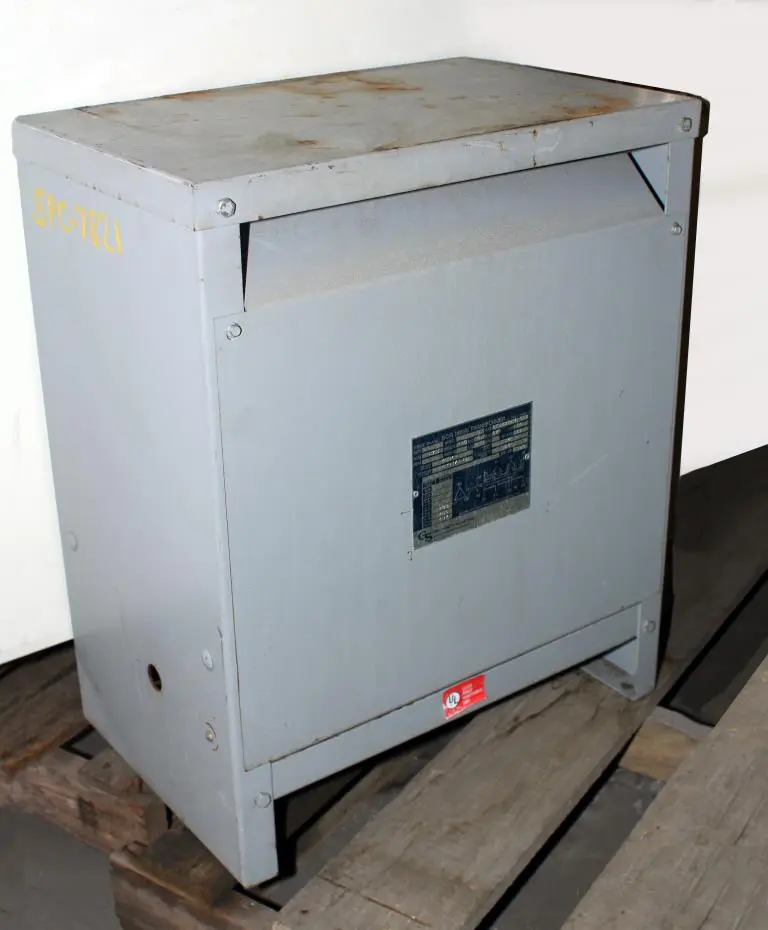

SPC7821 Transformers and Switchgear 27 kva GS Hevi-Duty Electric dry transformer, 460 Delta high voltage, 230Y/ 133 low voltage, 3 phase

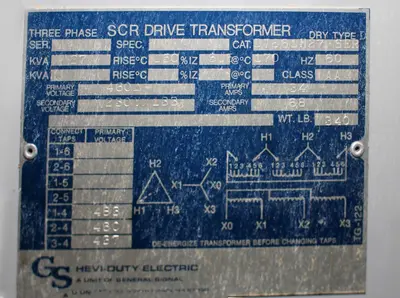

Used GS HEVI-DUTY Electric SCR Drive transformer. Dry type transformer that is 27 KVA, 60 Hz frequency, and 3 phase. The transformer has a primary voltage of 460 ∆ (delta) with 34 primary amps and a secondary voltage of 230Y/133 (68 secondary amps). The impedance is 5.5%. The rise temperature in °C is 150.

Connection Table
=============

Connect Taps Primary voltage
1-4 483
2-4 460
3-4 437

Total weight of the Unit is 340 lbs. The Unit has 16" x 23" and 28" of overall height. This Unit appears to be in good condition.

Kva: 27
Phase: 3
High Voltage: 460 Delta
Low Voltage: 230Y/ 133
Impedance: 5.5
