Overview
Type:
Transformers
Manufacturer:
FEDERAL PACIFIC TRANSFORMER COMPANY
Model:
HIGH VOLTAGE
Stock #:
SPC-7696
Description

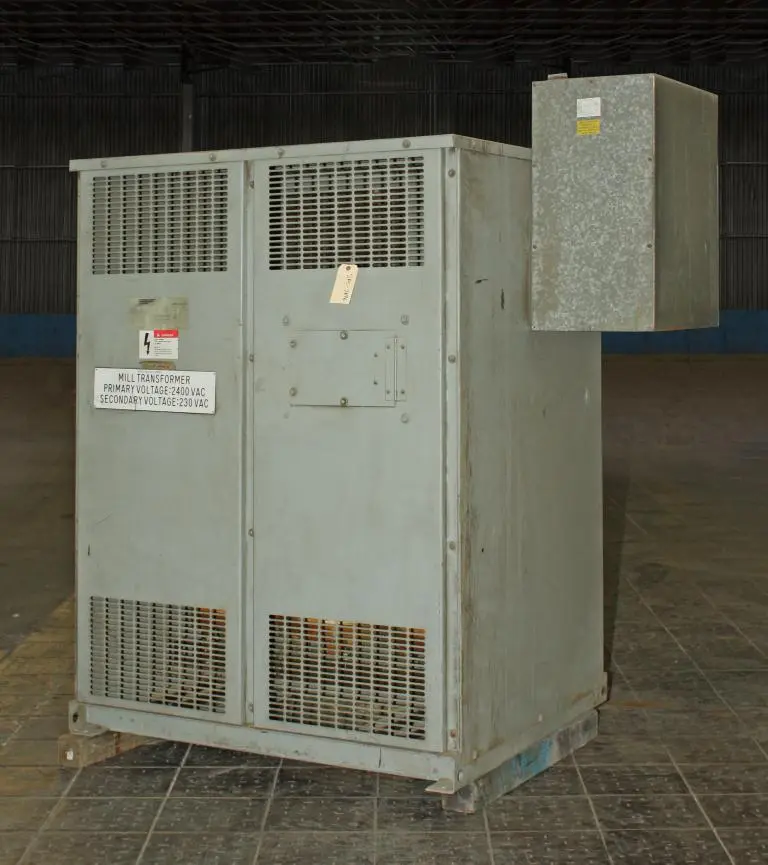

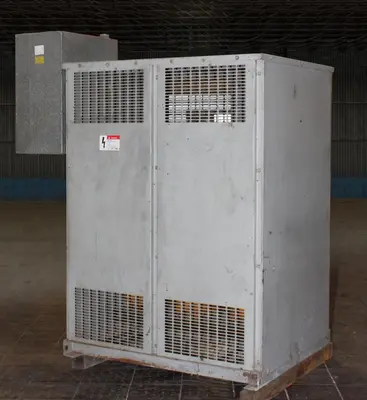

Federal Pacific Transformer Company, High Voltage General purpose Transformer. Dry-type Transformer with 440 KVA, 60 Hz frequency, and 3 phase. The transformer has a high voltage of 2400 V and a low voltage of 230Y/133. The impedance is 5.99%. 1103 Amps of Low Voltage Amps. The temperature rise is up to 150° C (302 ° F). The insulation level is 30 KV BIL for the high Voltage and 10 KV BIL for the low Voltage. HV and LV conductor Aluminum. The enclosure of type 1. Class AA. Manufacture date: 11/95. 220 ° C Insulation System.
Connections Table
Volts Amps Connect
2520 101 2 TO 3
2460 103 3 TO 4
2400 105 4 TO 5
2340 109 5 TO 6
2280 111 6 TO 7

C&C Weight 2780 lbs. Total weight of the Unit is 3330 lbs. The Unit has 44‘’ x 55 ‘’ and 80 ‘’ overall height. The serial number is 51082.

Specifications

Kva: 440
Phase: 3
High Voltage: 230 Y/133
Low Voltage: 2400
Impedance: 5.99
Special Comment: Temperature Rise 150 ° C
